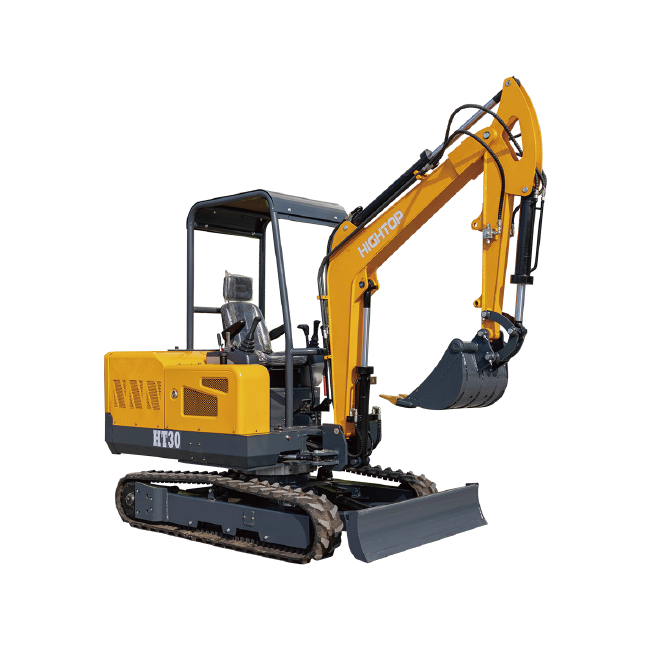

HT30 Mini Excavator — 3-Ton Class Crawler with Boom Swing

HT30 Mini Excavator — 3-Ton Class Crawler with Boom Swing

HT30 is a 3-ton class (3000 kg) mini crawler excavator powered by a Kubota water-cooled direct-injection diesel engine (14.2 kW / 20 HP @ 2000 RPM) with full Euro5 / EPA emission compliance. Delivers max digging depth of 2450 mm, digging height of 3700 mm, and industry-leading reach of 4370 mm. Features boom swing (75° left), arm swing (45°), 18 MPa hydraulic system pressure, bucket digging force of 15.3 kN, and a standard 0.1 m³ bucket capacity. Available with an optional ROPS/FOPS-certified enclosed cab and multiple factory colors.

Excavator OEM Equipment

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

HOT SALEEURO5 / EPA COMPLIANT
HT30 Mini Excavator — 3-Ton Class with Boom Swing & Optional Cab

Kubota Diesel 14.2kW(20HP) · Euro5/EPA · 0.1m³ Bucket · 15.3kN Breakout Force · Boom Swing L75° · Arm Swing 45° · Optional Enclosed Cab · Multiple Colors · CE/EPA/ISO

Product Overview —Mini Excavator HT30

The HT30 is 3-ton class (3000 kg) mini crawler excavator, engineered for contractors who need genuine earthmoving capability in a compact, trailer-transportable package. Powered by a proven Kubota diesel engine delivering 14.2 kW (20 HP) at 2000 RPM with full Euro5 / EPA emission compliance, the HT30 combines reliable power with environmental responsibility for regulated export markets worldwide.

The machine features an impressive working envelope with max digging depth of 2450 mm, max digging height of 3700 mm, and industry-leading max reach of 4370 mm — all driven through an 18 MPa hydraulic system that delivers a bucket digging force of 15.3 kN and arm digging force of 10.5 kN. The standard 0.1 m³ bucket capacity ensures higher per-cycle productivity than sub-2-ton models.

Two key productivity-enhancing features set the HT30 apart: boom swing (75° left offset) for digging parallel to walls and foundations without constant machine repositioning, and a 45° arm swing angle for fine positioning control in confined spaces. The dozer blade (240 mm lift / 310 mm cut depth) adds backfilling, leveling, and stabilization capability. Available with an optional enclosed cab for all-weather comfort and in multiple factory colors for OEM branding flexibility.

Key Specifications at a Glance

Parameter Specification Parameter Specification
Operating Weight 3000 kg (3-Ton Class) Engine Model Kubota Diesel
Rated Power 14.2 kW (20 HP) @ 2000 RPM Emission Standard Euro5 / EPA
Bucket Capacity 0.1 m³ Swing Speed 12 RPM
Max Digging Depth 2450 mm Max Digging Height 3700 mm
Max Reach (Radius) 4370 mm Max Dumping Height 2290 mm
Bucket Digging Force 15.3 kN Arm Digging Force 10.5 kN
Boom Swing (Left) 75° Arm Swing Angle 45°
Hydraulic Pressure 18 MPa Gradeability 30°
Travel Speed 3.5 km/h Tail Radius 1180 mm

Dimensions & Undercarriage

Overall Dimensions Undercarriage
Total Length 4170 mm Track Shoe Width 230 mm
Total Width 1300 mm Track Pads per Side 38 pcs
Total Height 2280 mm Lower Rollers per Side 4
Ground Contact Length 1230 mm Track Gauge 1070 mm
Ground Clearance 230 mm Tail Swing Radius 1180 mm
Stick (Arm) Length 1000 mm Min. Swing Radius 2020 mm

Working Range & Performance

Digging Envelope Force & Mobility
Max Digging Depth 2450 mm Bucket Digging Force 15.3 kN
Max Digging Height 3700 mm Arm Digging Force 10.5 kN
Max Dumping Height 2290 mm Hydraulic System Pressure 18 MPa
Max Vertical Dig Depth 2160 mm Swing Speed 12 RPM
Max Reach (Radius) 4370 mm Travel Speed 3.5 km/h
Boom Swing (Left) 75° Gradeability 30°
Arm Swing Angle 45° Bucket Capacity 0.1 m³

Dozer Blade Specifications

Blade Performance
Max Blade Lift Height 240 mm — raises to clear ground for transport or create level surface
Max Blade Cutting Depth 310 mm — digs into soil for backfilling, grading, and material spreading
Primary Functions Backfilling trenches, leveling ground, stabilizing machine during digging, pushing material, clearing debris, creating ramps

Powertrain & Hydraulics

Engine System
Manufacturer Kubota — globally recognized leader in compact diesel engines
Engine Type Water-Cooled, Direct-Injection Diesel
Rated Power 14.2 kW (20 HP) @ 2000 RPM
Emission Certification Euro5 / EPA Compliant — certified for European Union and North American markets
Hydraulic System
System Pressure 18 MPa — robust pressure for responsive digging and lifting performance
Swing Speed 12 RPM — fast house rotation for efficient truck-loading cycles
Bucket Digging Force 15.3 kN (~1560 kgf) — strong breakout force for general-purpose and moderate-hardness excavation
Arm Digging Force 10.5 kN (~1070 kgf) — solid arm force for trenching, lifting, and material handling

Why Choose the HT30?

✅ Genuine 3-Ton Capability 3000 kg operating weight with 15.3 kN breakout force and 0.1 m³ bucket — real earthmoving power that outperforms lighter machines by 40–60% in productivity per hour.
✅ Euro5 / EPA Emission Ready Kubota diesel engine with Euro5 / EPA certification — no regulatory barriers for EU, North American, Australian, or Japanese import requirements. Sell anywhere.
✅ 4370mm Industry-Leading Reach 4370 mm maximum digging radius — dig under building overhangs, across obstacles, and around structures without repositioning. Fewer moves = more profit.
✅ Dual Swing System (Boom + Arm) 75° left boom swing + 45° arm swing — dig trenches parallel to walls and foundations from one position. Reduces repositioning by up to 40% vs fixed-boom machines.
✅ Integrated Dozer Blade 240 mm lift / 310 mm cutting depth dozer blade — backfill trenches, level ground, stabilize during digging, clear debris. Eliminates need for separate blade attachment rental.
✅ Cab Option + Multi-Color Optional enclosed cab with ROPS/FOPS certification for all-weather operation. Multiple factory colors available — match your fleet identity or OEM brand requirements.

Ideal Applications

🏗️ Urban Construction
Utility trenching, pipeline installation, foundation footings, site preparation in tight urban lots		 🌳 Landscaping & Agriculture
Pool excavation, tree stump removal, land clearing, irrigation ditching, pond construction		 🔧 Demolition & Interior Work
Indoor demolition, bathroom renovation, basement excavation, concrete breaking with breaker attachment
🚜 Road & Infrastructure
Roadside drainage, culvert installation, curb cutting, shoulder repair, sign post hole digging		 📦 Rental Fleet
3-ton class is the most rented excavator size globally — high utilization rate, low maintenance cost, quick ROI		 🏭 Industrial Facilities
Factory floor modification, warehouse interior work, plant maintenance, material handling in confined spaces

OEM Customization & Private Label

Custom Paint Color Multiple factory colors plus any custom RAL code for exact brand matching
Branded Logo Placement Your company logo on body panels, arm, counterweight, and dozer blade
Cab Configuration Open canopy (standard) or enclosed cab with ROPS/FOPS per your market preference
Language-Specific Labels Safety labels, warning decals, and operator manuals in your target language
Certification Package CE / EPA / ISO documentation included for regulatory compliance in target markets
MOQ Flexibility OEM orders welcome starting from just 1 unit for standard configurations

Why Choose Archer Machinery as Your Export Partner?

Since 2017 Established exporter of Chinese construction machinery and trucks. Deep manufacturer relationships ensure priority allocation and best pricing.
9 Premium Brands Authorized distributor for XCMG, SANY, Zoomlion, Shantui, SDLG, YTO (construction) + SINOTRUK, SHACMAN, FAW (trucks). One source for everything.
Global Shipping FOB/CIF/DDP to 60+ countries. Experienced with customs clearance, export documentation, and multi-unit container consolidation for mini excavators.
OEM Private Label Full white-label support: your logo, your colors, your brand. We handle production coordination so you focus on sales and distribution.
Spare Parts Supply Kubota engine parts, hydraulic components, wear parts, and attachments shipped worldwide. Keep your customers’ machines running with genuine-quality replacements.
Multi-Language Team English, Spanish, Russian, Arabic, French communication. Time zone-friendly response from our international trade team in Jinan, China.

Get HT30 Mini Excavator Quote Today

Shandong Hightop HT30 — 3000 kg, Kubota diesel 14.2kW, Euro5/EPA, 2450 mm digging depth, 3700 mm height, 4370 mm reach, 15.3 kN breakout force, boom swing 75°, optional enclosed cab. FOB China pricing for global B2B buyers.

Related Products

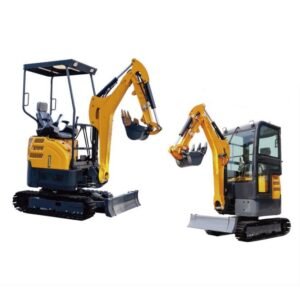

HT22 Mini Excavator — 2.2 Ton Kubota D1105
