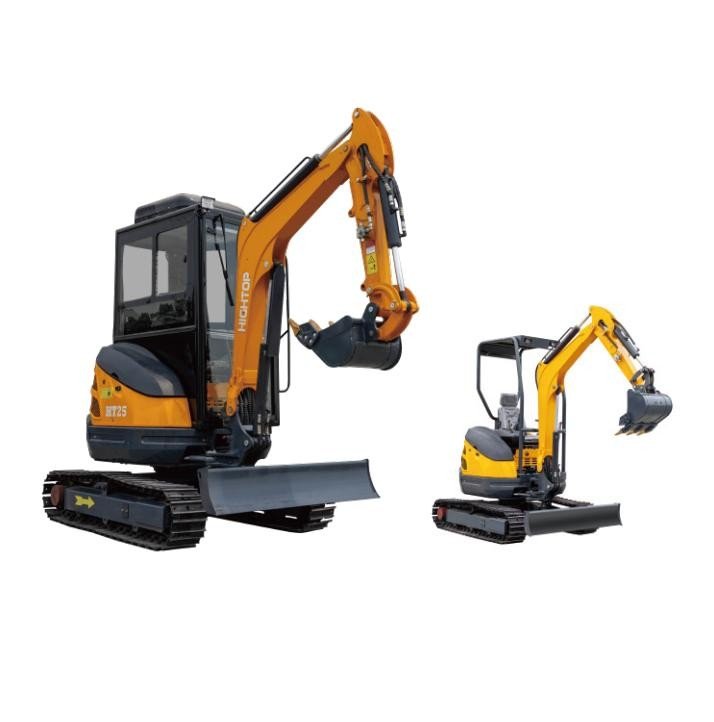

HT25-2 Mini Excavator — 2.5-Ton Telescopic Track & Boom Swing

Name: HT25-2 Mini Excavator — 2.5-Ton Telescopic Track & Boom Swing
Brand: ArcherMach
SKU: ht25-2-mini-excavator
Availability: InStock

HT25-2 is a 2.5-ton class (2480 kg) mini crawler excavator powered by a Kubota D1105 three-cylinder direct-injection diesel engine (14.1 kW @ 2000 RPM) with full Tier 5 / Stage V emission compliance. Features telescopic retractable track (1300–1500 mm), boom swing function (75° left / 55° right), no-tail-swing design (750 mm tail radius). Delivers max digging depth of 2500 mm, digging height of 3980 mm, and industry-leading reach of 4130 mm.

Excavator OEM Equipment

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Mini Excavator · 2.5-Ton Class · Kubota D1105 · Tier 5/Stage V · HOT SALE
HOT SALE

Shandong Hightop Group · Kubota D1105 Diesel Engine · Tier 5 / Stage V · Telescopic Track · Boom Swing (L75/R55) · No Tail Swing · Multiple Colors · CE/EPA/ISO

HT25-2 Mini Excavator — 2.5-Ton Crawler Excavator with Telescopic Track & Boom Swing

The HT25-2 is China’s flagship 2.5-ton class mini crawler excavator, powered by the globally trusted Kubota D1105 three-cylinder direct-injection diesel engine (14.1 kW @ 2000 RPM) with full Tier 5 / Stage V emission compliance. Featuring three signature capabilities — telescopic retractable track (1300–1500 mm), boom/bucket swing function (75° left / 55° right), and no-tail-swing design (750 mm tail radius) — the HT25-2 excels in confined-space urban construction, indoor demolition, utility trenching, and landscaping where conventional machines cannot fit. With a maximum digging depth of 2500 mm, digging height of 3980 mm, and an industry-leading reach of 4130 mm, the HT25-2 delivers a professional-grade working envelope that rivals 3-ton excavators. Its 21.5 MPa hydraulic system, 9.5 RPM swing speed, 35° gradeability, and 19.5 kN drawbar pull ensure powerful performance on any job site.

HT25-2 — Key Specifications at a Glance

HT25-2 Mini Excavator — Core Specifications
Operating Weight	2480 kg (2.5-Ton Class)
Engine	Kubota D1105 — 3-Cylinder Direct-Injection Diesel · Tier 5 / Stage V
Rated Power	14.1 kW (20 HP) @ 2000 RPM
Bucket Capacity	0.07 m³
Max Digging Depth	2500 mm (2.50 m)
Max Digging Height	3980 mm (3.98 m)
Max Digging Reach	4130 mm (4.13 m) — Industry-Leading Reach
Max Dumping Height	2610 mm (2.61 m)
Swing Speed	9.5 RPM
Boom Swing Angle	Left 75° / Right 55°
Gradeability	35% (~19.3°)
Track Gauge (Telescopic)	1300 mm – 1500 mm (Retractable Frame)
Tail Swing Radius	750 mm — No-Tail-Swing Design
Hydraulic System Pressure	21.5 MPa
Travel Motor / Drawbar Pull	3 / 5.5 km/h (Low / High) · Traction: 19.5 kN
Digging Force (Breakout)	11 kN
Color Options	Multiple Colors + Custom RAL for OEM

Complete Dimensional Specifications

Dimensions & Undercarriage
Overall Size (Length x Width x Height)	3850 × 1300(1500) × 2290 mm
Chassis Retracted Width	1300 mm
Chassis Extended Width	1500 mm
Wheelbase / Track Gauge Center Distance	1300 mm
Minimum Ground Clearance	230 mm
Track Shoe Width	250 mm
Track Pads per Side	38 pcs
Upper Rollers per Side	1
Lower Rollers per Side	3
Tail Swing Radius	750 mm (No-Tail-Swing)

Working Range & Performance

Digging Envelope & Operational Parameters
Operating Weight	2480 kg
Bucket Capacity	0.07 m³
Max Digging Height	3980 mm
Max Dumping Height	2610 mm
Max Digging Depth	2500 mm
Max Vertical Digging Depth	2050 mm
Max Digging Reach (Radius)	4130 mm
Bucket Max Lift Height	280 mm
Bucket Max Cutting Depth	310 mm
Swing Speed (House Rotation)	9.5 RPM
Minimum Swing Radius	1850 mm
Boom Swing Angle (Left)	75°
Boom Swing Angle (Right)	55°
Gradeability	35%

Powertrain & Hydraulic System

Engine — Kubota D1105 (Tier 5 / Stage V)
Model / Type	Kubota D1105 — 3-Cylinder, 4-Stroke, Water-Cooled, Direct-Injection Diesel
Rated Power	14.1 kW (20 HP) @ 2000 RPM
Cylinder Count	3 Cylinders
Emission Standard	Tier 5 / Stage V Compliant — Ready for EU, North America, Australia, Japan regulated markets

Hydraulic System & Mobility
System Pressure	21.5 MPa — High-pressure system delivering responsive hydraulic performance
Swing Speed	9.5 RPM
Travel Speed (Low / High)	3 km/h / 5.5 km/h
Drawbar Pull (Traction Force)	19.5 kN (~1990 kgf)
Digging Force (Breakout Force)	11 kN (~1120 kgf)
Gradeability	35% (~19.3°)

Why Choose the HT25-2? Key Advantages

🔧 1. Kubota D1105 — Global Engine + Tier 5/Stage V

Three-cylinder direct-injection diesel with 14.1 kW output and full Tier 5 / Stage V emission compliance. Ready for EU, North America, Australia, and Japan regulated markets. Kubota’s global dealer network ensures parts availability worldwide.

📐 2. Industry-Leading Working Envelope

3980 mm digging height + 4130 mm reach (best-in-class!) + 2500 mm depth. This working envelope rivals many 3-ton machines. Load trucks, deep trenches, long-reach excavation — the HT25-2 covers it all.

📏 3. Telescopic Track (1300→1500mm)

Squeeze through narrow gateways at 1300 mm retracted width, then expand to 1500 mm for maximum digging stability. One machine handles both confined access and open-site heavy-duty work.

🔄 4. Boom Swing — Left 75° / Right 55°

Independent boom offset swing allows digging parallel to walls and curbs without repositioning the entire machine. A game-changer for pipeline, drainage, and utility trenching along property boundaries.

⭕ 5. No-Tail-Swing Design (750mm Radius)

Counterweight stays within the track profile — only 750 mm tail radius. Rotate 360° against walls without rear contact. Essential for indoor demolition, urban streets, and confined-space operations.

💪 6. Professional-Grade Hydraulic System

21.5 MPa high-pressure hydraulic system. 19.5 kN drawbar pull for confident ramp climbing and traction. 11 kN digging force. 9.5 RPM fast swing speed. Built for commercial-duty cycles and demanding contractors.

Application Scenarios

🏗️

Urban Construction

Foundation trenching, utility installation, basement excavation in confined city lots. No-tail-swing essential for wall-to-wall work.

🌳

Landscaping & Garden

Pool digging, pond shaping, tree stump removal, landscape grading. Boom swing enables precision work along fences and property edges.

🚜

Agriculture & Farm

Ditch cleaning, livestock facility construction, fence post hole digging, land leveling. Telescopic track handles barn-to-field transitions.

🏠

Indoor Demolition

Interior building demolition, floor removal, bathroom renovation. Fits through standard doorways in retracted-track mode. No dust, no fumes indoors.

🔧

Utility Trenching

Water pipes, sewer lines, fiber optic cables, electrical conduits. 4130 mm reach + boom swing = fewer machine repositions along the trench run.

📦

Rental Fleet

High-demand 2.5-ton rental category. Broad appeal across construction, landscaping, agriculture. Low maintenance, excellent ROI for fleet owners.

OEM & Private-Label Customization

Customization Option	Description
Custom Paint Color	Multiple factory colors plus any custom RAL code for exact brand matching
Brand Logo & Decals	Your company logo on body panels, arm, counterweight, and dozer blade + branded safety labels
Manual Branding	Custom-printed owner’s manual and maintenance guide with your company name and contact details
Cab Configuration	Open canopy (standard) or enclosed cab per your market preference
Export Packaging	Custom export crate with your branding for professional unboxing experience at destination
Certifications	CE (Europe), EPA (North America), ISO 9001 quality management — documentation package included

Why Choose Archer Machinery?

Factory-Direct Pricing	Direct sourcing from manufacturing facility. No middlemen, no distributor markup. Competitive FOB pricing with flexible MOQ starting from 1 unit.
Kubota Engine Reliability	The Kubota D1105 is trusted in over 100 countries. Filters, injectors, gaskets, and service kits stocked by dealers worldwide. Proven millions of field hours across agriculture and construction.
Global Shipping Experience	FOB/CIF/DDP to 60+ countries. Experienced with customs clearance, export documentation, and multi-unit container consolidation for mini excavators.
OEM Private Label Support	Full white-label capability: your logo, your colors, your brand. We handle production coordination so you can focus on sales and distribution.
Spare Parts Supply Chain	Kubota D1105 engine parts, hydraulic components, wear parts, and attachments shipped worldwide. Keep your customers’ machines running with genuine-quality replacements.
Global Certification Ready	EPA (North America), CE (EU), ISO 9001 certifications can be arranged. Documentation package includes certificate of conformity, test reports, and customs clearance support documents.

Interested in the HT25-2 Mini Excavator?

Kubota D1105 diesel, Tier 5/Stage V, telescopic track, boom swing, no-tail-swing, 2500mm digging depth, 4130mm reach. Factory-direct pricing. Get your quote today.
