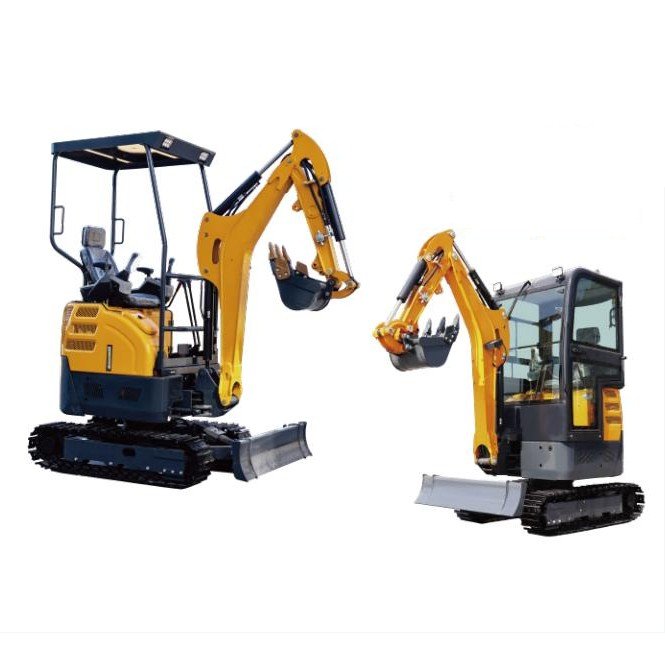

HT22 Mini Excavator — 2.2 Ton Kubota D1105

Name: HT22 Mini Excavator — 2.2 Ton Kubota D1105
Brand: ArcherMach
SKU: ht22-mini-excavator-2-2-ton-kubota-d1105
Availability: InStock

HT22 is a 2.2-ton class (2172 kg) mini crawler excavator powered by a Kubota D1105 three-cylinder direct-injection diesel engine (14.2 kW @ 2200 RPM). Delivers max digging depth of 2370 mm, digging height of 3500 mm, and reach of 3030 mm. Features adjustable track gauge (780–1090 mm), 58% gradeability, TFA10VO28 variable pump + TRM10-BX main valve at 20.5 MPa, KTD-490 dual-speed travel motor with 18 kN drawbar pull. Optional 2.2-ton enclosed cab available. Multiple factory colors, CE/EPA/ISO certified.

Excavator OEM Equipment

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Mini Excavator · 2.2-Ton Class · Kubota D1105 Diesel · HOT SALE
🔥 HOT SALE

Shandong Hightop Group · 3-Cylinder Direct Injection · Adjustable Track · 58% Gradeability · Optional 2.2T Enclosed Cab · Multiple Colors · CE/EPA/ISO

HT22 Mini Excavator — 2.2-Ton Compact Crawler Excavator with Kubota D1105 Engine

The HT22 is Shandong Hightop Group’s 2.2-ton class mini crawler excavator, powered by the globally trusted Kubota D1105 three-cylinder direct-injection diesel engine (14.2 kW @ 2200 RPM). With a maximum digging depth of 2370 mm, digging height of 3500 mm, and reach of 3030 mm, the HT22 delivers a professional-grade working envelope that competes with machines in the 2.5–3 ton category. Its adjustable track gauge (780–1090 mm) allows passage through narrow gateways followed by wide-stance stability for digging. An industry-leading 58% gradeability ensures confident operation on steep slopes and loading ramps. The hydraulic system features a TFA10VO28 variable displacement pump (28 ml/r) and TRM10-BX main valve at 20.5 MPa system pressure, driven by a KTD-490 dual-speed travel motor (18 kN drawbar pull). Available with an optional 2.2-ton enclosed cab and multiple factory colors, the HT22 is ideal for global B2B distributors, rental fleet operators, landscaping contractors, and OEM private-label partners.

HT22 — Key Specifications at a Glance

HT22 Mini Excavator — Core Specifications
Operating Weight	2172 kg (2.2-Ton Class)
Engine	Kubota D1105 — 3-Cylinder Direct-Injection Diesel
Rated Power	14.2 kW (19.0 HP) @ 2200 RPM
Bucket Capacity	0.056 m³
Max Digging Depth	2370 mm (2.37 m)
Max Digging Height	3500 mm (3.5 m)
Max Digging Reach	3030 mm (3.03 m)
Max Dumping Height	2560 mm (2.56 m)
Swing Speed	9.5 RPM
Gradeability	58% (~30°) — Industry-Leading Slope Capability
Track Gauge (Adjustable)	780 mm – 1090 mm (Retractable Frame)
Hydraulic System Pressure	20.5 MPa (TRM10-BX Main Valve + TFA10VO28 Pump)
Travel Motor	KTD-490 — Dual-Speed: 2.2 / 4.3 km/h · Drawbar Pull: 18 kN
Optional Cab	✅ 2.2-Ton Enclosed Cab
Color Options	Multiple Colors + Custom RAL for OEM

Complete Dimensional Specifications

Dimensions & Undercarriage
Total Length / Transport Length	4750 mm
Overall Width	990 mm / 1300 mm (adjustable)
Upper Structure Width	1050 mm
Total Height (to Top)	2470 mm
Track Shoe Width	230 mm
Track Gauge (Center Distance)	780 mm – 1090 mm (adjustable)
Minimum Ground Clearance	150 mm
Tail Swing Radius	780 mm
Track Ground Contact Length	1200 mm
Total Track Length	1500 mm
Minimum Swing Radius	1750 mm
Max Height at Min Swing Radius	2600 mm

Working Range & Performance

Digging Envelope & Operational Parameters
Operating Weight	2172 kg
Bucket Capacity	0.056 m³
Max Digging Height	3500 mm
Max Dumping Height	2560 mm
Max Digging Depth	2370 mm
Max Digging Reach	3030 mm
Swing Speed (House Rotation)	9.5 RPM
Gradeability	58%

Powertrain & Hydraulic System

Engine — Kubota D1105
Model / Type	Kubota D1105 — 3-Cylinder Direct-Injection Diesel
Rated Power	14.2 kW (19.0 HP) @ 2200 RPM

Hydraulic System
Main Valve Model	TRM10-BX-09-JNJT-01
System Pressure	20.5 MPa
Hydraulic Pump Model	TFA10VO28/53R — Axial Piston Variable Displacement
Pump Displacement	28 ml/r
Travel Motor Model	KTD-490
Travel Speed (Low / High)	2.2 km/h / 4.3 km/h
Drawbar Pull (Traction Force)	18 kN (~1810 kgf)

Fluid Capacities
Fuel Tank Capacity	21 L
Hydraulic Oil Tank	21.4 L
Cooling System Capacity	5.05 L

Why Choose the HT22? Key Advantages

🔧 1. Kubota D1105 — Global Engine Standard

Three-cylinder direct-injection diesel with 14.2 kW output. Kubota’s global dealer network means filters, parts, and service are available in virtually every country where you sell. Proven reliability from agriculture to construction.

📐 2. Best-in-Class Working Envelope

3500 mm digging height + 3030 mm reach + 2370 mm depth. This working envelope rivals 2.5–3 ton machines. Load trucks, dig trenches, reach over obstacles — the HT22 covers it all.

⛰️ 3. 58% Gradeability — Climb Anything

Industry-leading 58% slope capability (approximately 30°). Confidently climb loading ramp inclines, navigate embankments, work on sloped building sites. Most competitors in this class offer only 30–40%.

🔩 4. Retractable Track Frame (780→1090mm)

Squeeze through a 780 mm narrow gateway or interior doorway, then expand to 1090 mm for maximum digging stability. No other machine in the 2.2-ton class offers this level of access flexibility.

💪 5. Professional Hydraulic System

20.5 MPa system pressure via TFA10VO28 variable-displacement pump (28 ml/r) + TRM10-BX main valve. KTD-490 dual-speed motor delivers 18 kN traction. Responsive, powerful, and built for commercial duty cycles.

🏠 6. Dedicated 2.2T Enclosed Cab Option

Factory-installed 2.2-ton enclosed cab with full ROPS/FOPS protection. Essential for cold climates, rainy regions, dusty environments, and operators requiring year-round weather protection.

Application Scenarios

🏗️

Urban Construction

Foundation trenching, utility installation, basement excavation in confined city lots

🌳

Landscaping & Garden

Pool digging, pond shaping, tree stump removal, landscape grading, irrigation trenching

🚜

Agriculture & Farm

Ditch cleaning, livestock facility construction, fence post hole digging, land leveling

🏠

Indoor Demolition

Interior building demolition, floor removal, bathroom renovation — fits through standard doorways

🚿

Utilities & Drainage

Water pipe laying, sewer line installation, French drain systems, septic tank excavation

📦

Rental Fleet

High-demand 2.2-ton rental category. Low maintenance cost, broad application appeal, excellent ROI for fleet owners

OEM & Private-Label Customization

Customization Option	Description
🎨 Custom Paint Color	Multiple factory colors plus any custom RAL code for exact brand matching
🏷️ Brand Logo & Decals	Your company logo on body panels, arm, counterweight, and dozer blade + branded safety labels
📖 Manual Branding	Custom-printed owner’s manual and maintenance guide with your company name and contact details
🏠 Cab Configuration	Open canopy (standard) or 2.2T enclosed cab per your market preference
📦 Export Packaging	Custom export crate with your branding for professional unboxing experience at destination
✅ Certifications	CE (Europe), EPA (North America), ISO 9001 quality management — documentation package included

Why Choose Archer Machinery?

Factory-Direct Pricing	Direct sourcing from manufacturing facility. No middlemen, no distributor markup. Competitive FOB pricing with flexible MOQ starting from 1 unit.
Kubota Engine Reliability	The Kubota D1105 is trusted in over 100 countries. Filters, injectors, gaskets, and service kits stocked by dealers worldwide. Proven millions of field hours across agriculture and construction.
Global Shipping Experience	FOB/CIF/DDP to 60+ countries. Experienced with customs clearance, export documentation, and multi-unit container consolidation for mini excavators.
OEM Private Label Support	Full white-label capability: your logo, your colors, your brand. We handle production coordination so you can focus on sales and distribution.
Spare Parts Supply Chain	Kubota D1105 engine parts, hydraulic components, wear parts, and attachments shipped worldwide. Keep your customers’ machines running with genuine-quality replacements.
Global Certification Ready	EPA (North America), CE (EU), ISO 9001 certifications can be arranged. Documentation package includes certificate of conformity, test reports, and customs clearance support documents.
