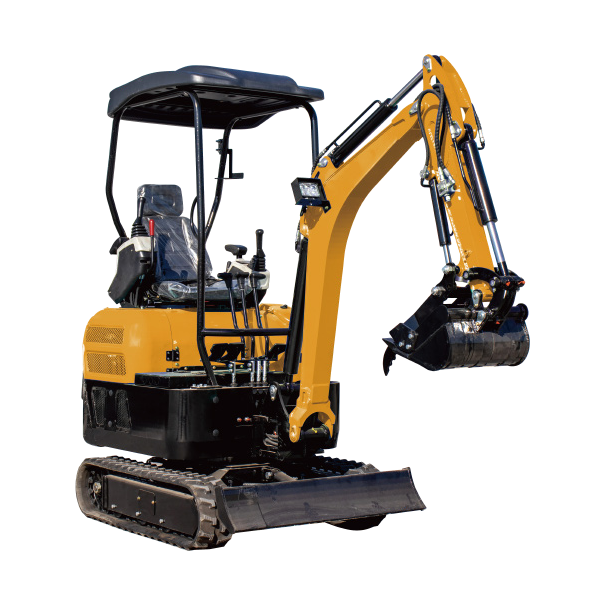

HT20 Series Mini Excavator — HT20Pro & HT20-1

Name: HT20 Series Mini Excavator — HT20Pro & HT20-1
Brand: ArcherMach
SKU: ht20-series-mini-excavator
Availability: InStock

HT20 Series offers two 2-ton class mini excavator variants: HT20Pro (1470 kg, Kubota diesel, adjustable 770–1070 mm track, 3130 mm digging reach) and HT20-1 (2000 kg, Mitsubishi 19 kW, hydraulic pilot control, Beifang main valve, optional 2T enclosed cab). Multiple colors, OEM available.

Excavator OEM Equipment

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Mini Excavator · 2-Ton Class · Diesel · Hydraulic Pilot Control · Optional Cab
HT20 Series — Kubota & Mitsubishi Engine · Beifang Valve · OEM & Private Label

HT20 Series Mini Excavator — Two Variants in the 2-Ton Class: HT20Pro / HT20-1

The HT20 series represents China’s 2-ton class mini crawler excavator range, delivering two purpose-built variants for different professional demands. The HT20Pro is a compact reach specialist at 1470 kg with a class-leading 3130 mm maximum digging reach, adjustable track width (770–1070 mm) for ultra-tight access, and a genuine Kubota diesel engine. The HT20-1 is the full-power professional at 2000 kg, featuring a high-output Mitsubishi 38S 3TN25 diesel engine at 19 kW / 2200 RPM, industry-standard hydraulic pilot control system for smooth joystick precision, Beifang main valve, and a dedicated 2-ton enclosed cab option. Both models support multiple factory color choices optional enclosed cab, CE/EPA/ISO certification, and complete OEM private-label customization for global B2B distributors, rental fleet operators, and equipment dealers.

HT20 Series — Two Variants Overview

Specification	HT20Pro	HT20-1 HOT SALE
Positioning	Compact Reach Specialist	Full-Power Professional
Operating Weight	1470 kg	2000 kg
Engine	Kubota Diesel	Mitsubishi 38S 3TN25
Rated Power	Kubota diesel output	19 kW / 2200 RPM
Hydraulic Control System	Standard mechanical	Pilot Control
Main Hydraulic Valve	Chaoyang	Beifang
Bucket Capacity	0.02 m³	0.04 m³
Max Digging Reach	3130 mm 🔥	2580 mm
Max Digging Depth	1999 mm	2060 mm
Max Digging Height	2875 mm	3130 mm
Track Width (Shoe)	200 mm	200 mm
Track Gauge (Center Distance)	770–1070 mm (adjustable)	920 mm
Swing Speed	—	12 RPM
Gradeability	30°	30°
Optional Enclosed Cab	✅ Yes	✅ Yes (2T Dedicated Cab)
Best For	Tight spaces, landscaping, long-reach work	General construction, rental fleets, high-cycle production

HT20Pro — Detailed Specifications

Model	HT20Pro — Compact Long-Reach Mini Crawler Excavator
Operating Weight	1470 kg
Bucket Capacity	0.02 m³
Engine	Kubota Diesel
Main Hydraulic Valve	Chaoyang
Work Equipment Type	Backhoe
Gradeability	30°
Transport Length	2650 mm — ultra-compact for transport
Overall Width	970–1270 mm (track-width-dependent)
Upper Structure Width	1055 mm
Overall Height with Canopy	2350 mm
Track Shoe Width	200 mm
Track Gauge / Center Distance	770–1070 mm (adjustable)
Dozer Blade Lift Height	290 mm
Dozer Blade Dig Depth	285 mm
Tail Swing Radius	980 mm
Track Contact Length	1200 mm
Total Track Length	1520 mm
Max Digging Height	2875 mm
Max Digging Depth / Control Depth	1999 mm
Max Digging Reach / Radius	3130 mm — class-leading horizontal reach
Min Swing Radius	1670 mm
Min Height at Min Swing Radius	2285 mm

HT20-1 — Detailed Specifications HOT SALE

Model	HT20-1 — Full-Power Professional Mini Crawler Excavator
Operating Weight	2000 kg
Bucket Capacity	0.04 m³
Engine	Mitsubishi 38S 3TN25 Diesel
Rated Power	19 kW / 2200 RPM
Main Hydraulic Valve	Beifang
Hydraulic Control System	Hydraulic Pilot Control
Swing Speed	12 RPM
Gradeability	30°
Total Length / Transport Length	3337 mm / 2597 mm
Overall Width	1100 mm
Overall Height	2325 mm
Track Shoe Width	200 mm
Track Gauge / Center Distance	920 mm
Min Ground Clearance	119 mm
Tail Swing Radius	1013 mm
Track Contact Length	1050 mm
Total Track Length	1545 mm
Max Digging Height	3130 mm
Max Dumping Height	1637 mm
Max Digging Depth	2060 mm
Max Digging Reach / Radius	2580 mm
Min Swing Radius	1575 mm
Min Height at Min Swing Radius	2075 mm
Optional Cab	2-Ton Enclosed Cab — dedicated cab designed for the 2000 kg platform

Engine & Powertrain — Premium Diesel Platforms

HT20Pro — Kubota Diesel	Kubota diesel engine — the globally recognized gold standard for compact diesel power. Genuine Kubota unit sourced through official channels, providing unmatched parts availability in 170+ countries, proven 10,000+ hour service life under field conditions, and superior fuel efficiency. The Kubota engine choice makes HT20Pro ideal for professional contractors and rental fleets operating in regions where service network coverage is critical.
HT20-1 — Mitsubishi 38S 3TN25 Diesel	Mitsubishi 38S 3TN25 — a high-performance 3-cylinder liquid-cooled diesel engine delivering 19 kW (25.5 hp) at 2200 RPM. This engine significantly outpowers single or dual-cylinder alternatives, providing ample torque reserve for continuous heavy-duty digging, hydraulic hammer attachment operation, and high-cycle production use. The 3TN25 is EPA and Tier 4 compliant, making the HT20-1 suitable for regulated markets. Combined with the Beifang main valve and pilot control system, the HT20-1 delivers a control feel and output level comparable to machines costing 30–50% more from premium brands.
HT20-1 Main Valve — Beifang	Beifang main hydraulic valve — China’s premium hydraulic valve manufacturer, delivering smooth proportional flow control across all circuits (boom, arm, bucket, slew, travel, blade). Minimal internal leakage maintains system pressure during fine positioning tasks. The Beifang valve is one of the primary quality differentiators between HT20-1 and budget-segment competitors using unbranded generic valves.
HT20-1 Pilot Control System	Hydraulic pilot control — low-pressure pilot circuits modulate the main Beifang valve for smooth, proportional joystick response. Industry-standard control feel familiar to experienced operators of larger commercial excavators (5-ton and above). Dramatically reduces operator fatigue on long shifts, enables precision grading and fine material handling, and improves overall machine productivity versus mechanical direct-control systems.

Key Differentiators — Why Choose the HT20 Series?

🔥 Class-Leading Reach (HT20Pro)	The HT20Pro achieves a remarkable 3130 mm maximum digging reach — exceptional horizontal reach for a sub-1500 kg machine. This extended arm geometry makes it ideal for pond excavation, slope work, drainage trenching alongside roads, and any application where the machine cannot be repositioned close to the work face. The long reach also improves safety by keeping the machine body further from unstable edges or underground utilities.
📏 Adjustable Track Width (HT20Pro)	The HT20Pro’s track gauge adjusts from 770 to 1070 mm — a feature normally found only on premium mini excavator brands. At 770 mm minimum, the machine fits through standard doorways and garden gates (typically 800 mm+ opening). At 1070 mm maximum, it provides a wide, stable base for sloped work and heavy lifting. This single feature dramatically expands the machine’s job-site versatility compared to fixed-track alternatives.
⚡ 19 kW Professional Power (HT20-1)	The HT20-1’s Mitsubishi 19 kW engine delivers genuine professional-grade power output in a 2-ton compact package. At 19 kW (25.5 hp), it generates sufficient hydraulic flow for simultaneous multi-circuit operation — excavating while simultaneously slewing and traveling, or running high-flow hydraulic hammer attachments without power starvation. The 2200 RPM rated speed provides optimal torque-to-fuel-consumption ratio for sustained 8-hour production cycles.
🎯 Pilot Control + Beifang Valve (HT20-1)	The combination of hydraulic pilot control + Beifang precision main valve on the HT20-1 produces a control experience comparable to machines 2–3× its price point. Smooth, proportional joystick response, zero dead-band in all circuits, consistent performance across temperature range, and fine positioning accuracy for landscaping and grading work. Contractors who have operated CAT, Komatsu, or Kubota brand mini excavators will find the HT20-1’s control feel familiar and satisfying — a key factor in pilot-market acceptance for new dealer partnerships.
🏠 Dedicated 2-Ton Enclosed Cab (HT20-1)	The HT20-1 features a purpose-designed 2-ton enclosed cab — not an aftermarket fitment or adapted smaller-machine cab. The cab is engineered to match the HT20-1’s larger 2000 kg frame, providing proper ROPS/FOPS protection geometry, adequate interior space for operator comfort during long shifts, and correct weight balance for safe operation. Rental fleet operators who spec the 2T cab see significantly higher utilization rates in cold/wet climates.
🎨 Multiple Colors + Full OEM	Multiple factory color options across both HT20 variants — Yellow (construction standard), Red, Blue, White, Orange, or any custom RAL code. Complete OEM private-label package available: custom logo on body, branded decals, custom manuals, export crate branding. Build your own equipment brand on Hightop’s proven platform.

OEM & Private Label Customization

Custom Paint Color	Factory standard colors or specify any RAL code for exact brand-color matching
Custom Logo Application	Your company logo applied to body panels, counterweight cover, arm structure, and dozer blade
Branded Decals & Stickers	Safety labels, model badges, and warning stickers printed under your brand name
Operator Manual Branding	Custom-printed owner’s manual and service guide with your company information
Cab Configuration	Open canopy (standard) or optional enclosed cab (HT20Pro: standard cab / HT20-1: dedicated 2T cab)
Packaging & Crate Branding	Custom export crate with your branding for professional container-unboxing experience

Why Choose Archer Machinery for Your HT20 Order?

Factory-Direct Pricing	Direct partnership with Shandong Hightop Group manufacturing facility — no middlemen markup, competitive FOB/CIF/DDP pricing for importers worldwide.
170+ Countries Served	Established export track record across Africa, Middle East, South America, Southeast Asia, Europe, and Oceania. Familiar with customs clearance, import duties, and local certification requirements in 50+ destination countries.
Premium Engine Sourcing	Genuine Kubota and Mitsubishi engines sourced through official channels — full authenticity guarantee, warranty coverage, and global parts availability. Counterfeit engine risk eliminated.
Container Load Optimization	Compact transport dimensions (2650 mm transport length for HT20Pro, 2597 mm for HT20-1) enable mixed-container loading — combine multiple units or mix with other machinery orders to reduce per-unit shipping cost.
Spare Parts Availability	Complete spare parts kit included with every shipment: hydraulic seals, engine filters, track hardware, bucket pins/bushings, and first-500-hour wear parts. Additional parts via express air freight within 48-hour lead time.
Certification Support	EPA (US/EPA), CE (European Union), ISO 9001, and country-specific certifications arranged upon request. Documentation package includes Certificate of Origin, Test Reports, and Conformity Declarations.

Applications

Landscaping & Garden Work (HT20Pro)	Pond excavation, garden bed preparation, tree stump removal, drainage ditching — adjustable track allows access through garden gates; long reach avoids disturbing the lawn surface
Indoor & Confined Demolition (HT20Pro)	Basement demolition, indoor concrete breaking, narrow-corridor excavation — 770 mm minimum track width fits through most door openings; compact transport length for freight elevator entry
General Construction (HT20-1)	Foundation excavation, site preparation, ground leveling, drainage trench cutting — 2000 kg stability + 19 kW power handles clay, hard-packed soil, and light rocky conditions
Utility Installation	Water pipe laying, electrical conduit burial, fiber optic cable trenching, sewer line installation — both models handle standard utility trench depths
Rental Fleet Operations (HT20-1)	Ideal 2-ton class rental machine — pilot control familiar to skilled operators; optional 2T enclosed cab enables year-round rental revenue; 12 RPM swing speed maximizes daily productivity; broad attachment compatibility (hydraulic hammer, auger, tilt bucket)
Agriculture & Irrigation	Irrigation channel digging, pond construction, farm drainage improvement, orchard soil preparation — both models perform well in rural/agricultural environments with varying soil conditions

Interested in the HT20 Series Mini Excavator?

Tell us which variant fits your market — HT20Pro (compact reach specialist) or HT20-1 (full-power pilot control). We’ll prepare a quotation with your preferred cab config and OEM branding.
