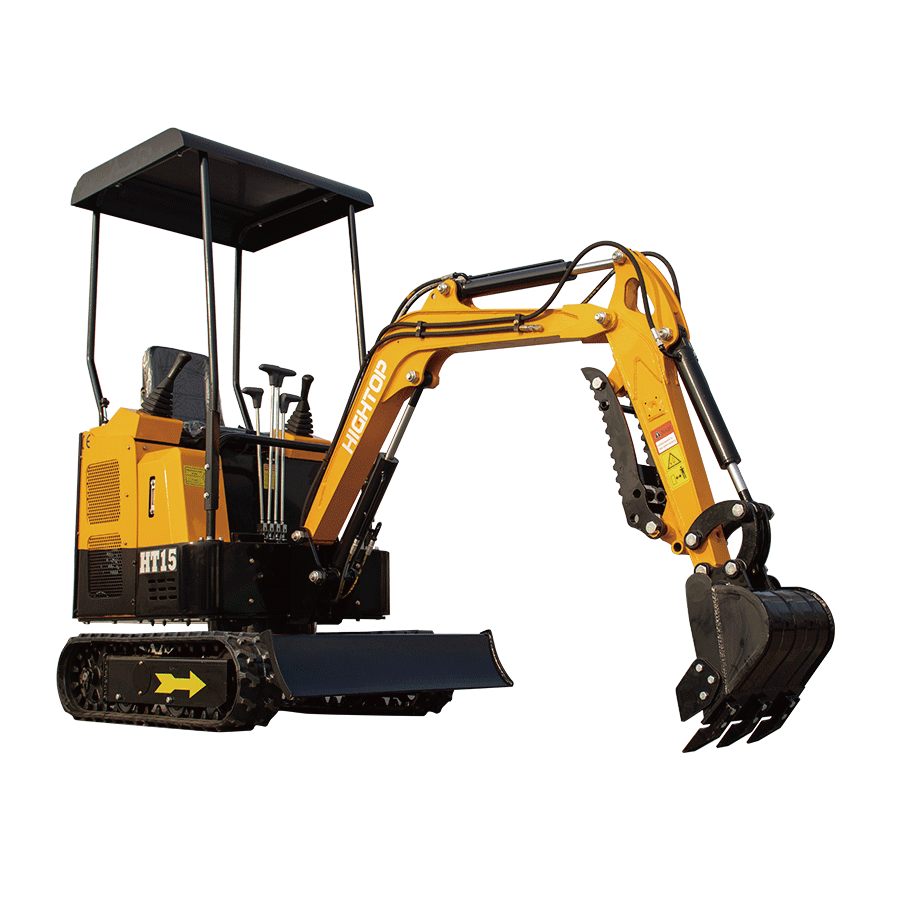

HT15 Mini Excavator | 1.5-Ton Crawler Digger with 8 Variants Including Pure Electric

Name: HT15 Mini Excavator | 1.5-Ton Crawler Digger with 8 Variants Including Pure Electric
Brand: ArcherMach
SKU: ht15-mini-excavator-1-5-ton-crawler-digger-with-8-variants-including-pure-electric
Availability: InStock

HT15 series is 1.5-ton class mini crawler excavator, offering an unprecedented 8 model variants across gasoline, diesel, and pure electric power options. Built on a robust 1500 kg platform with 0.04 m³ bucket capacity and up to 1850 mm digging depth (1650 mm for the electric LI variant). Optional enclosed cab, multiple factory colors, CE/EPA/ISO certification, and complete OEM private-label customization for global B2B distributors, rental fleets, and green-equipment procurement programs.

Excavator OEM Equipment

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Mini Excavator · Gasoline / Diesel / Electric
HT15 · 1.5 Ton · 8 Variants · Optional Cab · OEM & Private Label

HT15 Mini Excavator — 1.5-Ton Crawler Digger with 8 Configurable Variants Including Pure Electric

The HT15 series is China’s most versatile 1.5-ton class mini crawler excavator, offering an unprecedented 8 model variants across gasoline, diesel, and pure electric power options. Built around a robust 1500 kg operating weight platform, every variant delivers a maximum digging depth of 1850 mm (1650 mm for the electric LI version), 2450 mm digging height, and a compact 180 mm tail swing radius. What makes the HT15 series unique is its unmatched configurability: choose from six internal-combustion engines ranging from the economical Laidong diesel at 7 kW to the high-performance Briggs & Stratton 3864 at 17.5 kW, or opt for the zero-emission HT15-LI pure electric with over 15 hours of battery-powered runtime. Additional features include an optional enclosed cab, multiple factory color choices, EPA/CE/ISO certification readiness, and complete OEM private-label customization — making this single platform ideal for importers serving diverse global markets.

Basic Information

Model Series	HT15 Series — 8 variants: HT15, HT15-1, HT15-2, HT15-3, HT15-4, HT15-5, HT15-LI (Pure Electric)
Operating Weight	1500 kg — 1.5-ton class (all variants)
Bucket Capacity	0.04 m³ (standard backhoe bucket)
Working Attachment Type	Backhoe — standard working device
Travel Speed	3.5 km/h (high speed / low speed)
Gradeability	35° slope capability (all variants)
Swing Speed	11 RPM (all combustion models)
Fuel Tank Capacity	18 L (combustion models only)
Color Options	Multiple colors available — Yellow, Red, Blue, White, Orange, or any custom RAL code
Cab Configuration	Open canopy with ROPS (standard) · Enclosed cab (optional)
Certifications Available	EPA, CE, ISO 9001 (specify when ordering)
OEM Private Label	Fully supported — Custom logo, color, decals, manuals

Model Configuration — All 8 HT15 Variants

Model	Engine Brand	Power	System Pressure	Fuel Type	Best For
HT15	Laidong	7 kW	9 MPa	Diesel	Entry-level diesel markets
HT15-1	Kepu 192	7 kW	9 MPa	Gasoline	Standard gasoline, most economical
HT15-2	Briggs & Stratton 25T2	10.2 kW	16 MPa	Gasoline	Premium gasoline, rental fleet
HT15-3	Kepu 292 / Runyou	12 kW	16 MPa	Gasoline	Mid-range, water-cooled durability
HT15-4	Kubota D722	12 kW	16 MPa	Diesel	Premium Japanese diesel, max resale
HT15-5	Briggs & Stratton 3864	17.5 kW	16 MPa	Gasoline	High-power flagship, fastest cycles
HT15-LI ELECTRIC	Pure Electric Motor	4 kW	—	72V/48V LiFePO4	Zero emission, indoor use, >15h runtime

Engine & Powertrain Details

HT15 — Laidong Diesel	Laidong Chinese diesel engine, 7 kW rated power, 9 MPa hydraulic system pressure. Economical entry point for diesel-favoring markets where fuel cost and torque matter more than peak power output.
HT15-1 — Kepu 192 Gasoline	Kepu 192 single-cylinder air-cooled 4-stroke gasoline, 7 kW, 9 MPa. Proven reliability, easiest parts sourcing, lowest purchase price. Ideal for price-sensitive emerging markets.
HT15-2 — B&S 25T2 Premium Gasoline	Briggs & Stratton 25T2 American-made gasoline engine, 10.2 kW, upgraded to 16 MPa hydraulic system pressure. Industry benchmark for rental fleet reliability. Global parts network ensures fast service anywhere in the world.
HT15-3 — Kepu 292 Water-Cooled / Runyou	Kepu 292 water-cooledor Runyou (润通) alternative, 12 kW, 16 MPa. Water-cooling delivers superior thermal management for continuous all-day operation in hot climates without overheating concerns common with air-cooled engines.
HT15-4 — Kubota D722 Diesel	Kubota D722 Japanese-engineered 3-cylinder water-cooled diesel, 12 kW, 16 MPa. Maximum durability, longest service life, best resale value. Recommended for demanding professional users and high-utilization rental fleets.
HT15-5 — B&S 3864 High-Power Flagship	Briggs & Stratton 3864 high-output gasoline engine, 17.5 kW maximum power, 16 MPa. The highest-performance engine option in the entire HT15 lineup. Delivers noticeably faster boom/arm/bucket cycle times in hard-ground digging and clay soil conditions. Best choice for contractors who prioritize productivity above all else.
HT15-LI — Pure Electric	72V / 48V LiFePO4 battery system, 4 kW electric motor, 135Ah capacity (100 kg per battery pack), over 15 hours of continuous working time per full charge. Zero noise, zero exhaust emissions, instant torque delivery. Qualifies for green-equipment subsidies and zero-emission zone access in European and North American cities.
Hydraulic System	Two-tier system pressure design: 9 MPa (HT15, HT15-1 entry models) or 16 MPa (HT15-2 through HT15-5 premium models). Higher pressure delivers stronger digging force, faster arm speeds, and improved attachment compatibility (breaker, auger, grapple).

Dimensions & Undercarriage

Track Gauge (Center Distance)	800 mm (all combustion models) / 800 mm (HT15-LI platform)
Total Track Length	1220 mm (all models)
Platform Ground Clearance	375 mm (all combustion models)
Base Width	980 mm (combustion) / 946 mm (HT15-LI electric)
Tail Swing Radius	180 mm (combustion) / 733 mm (HT15-LI electric)
Ground Contact Length	2900 mm (all models)
Track Width (Shoe Width)	180 mm (all models)
Overall Length	2550 mm (HT15-LI) / standard transport length fits pickup truck bed
Machine Height	1330 mm (HT15-LI electric) / varies by canopy configuration

Working Range & Digging Performance

Max Digging Height	2450 mm (combustion) / 2490 mm (HT15-LI electric)
Max Dumping Height	1850 mm (combustion) / 2490 mm (HT15-LI electric)
Max Digging Depth	1850 mm (combustion) / 1650 mm (HT15-LI electric)
Max Digging Reach (Radius)	1550 mm (combustion) / 2400 mm (HT15-LI electric)
Max Vertical Digging Depth	1750 mm (combustion) / 1400 mm (HT15-LI electric)
Min Swing (Turning) Radius	1550 mm (combustion) / 1190 mm (HT15-LI electric)
Bucket Max Lift Height	150 mm (all models)
Dozer Blade Max Digging Depth	180 mm (combustion models)
Dozer Blade Max Lift Height	325 mm (all models including HT15-LI)

Key Differentiators — Why Choose the HT15 Series

1. 8-Variant Configurability	The HT15 series offers 8 distinct model variants — more than any competing 1.5-ton mini excavator. Six internal-combustion options span 7 kW to 17.5 kW across Laidong, Kepu, Briggs & Stratton, and Kubota engines in both gasoline and diesel fuels. The HT15-LI pure-electric variant adds zero-emission capability with over 15 hours of battery life. One product line serves entry-level, mid-range, premium, and green-equipment market segments simultaneously.
2. Two-Tier Hydraulic System	Smart two-tier hydraulic pressure design: 9 MPa for entry models (HT15, HT15-1) keeping cost competitive for basic landscaping tasks, and 16 MPa for premium models (HT15-2 through HT15-5) enabling breaker hammer, auger, grapple, and ripper attachments. Upgrade path available — match hydraulic spec to each customer’s application requirements and budget.
3. HT15-LI Pure Electric — Zero Emissions	The HT15-LI is the first electric mini excavator in Shandong Hightop’s lineup. 72V/48V LiFePO4 battery system (135Ah, 100 kg/pack) powers a 4 kW motor delivering over 15 hours of continuous operation. Completely silent, no exhaust fumes — perfect for indoor demolition, greenhouse agriculture, hospital grounds maintenance, nighttime urban work, and municipalities with anti-idling regulations. Qualifies for government green-equipment rebates in EU and North America.
4. Ultra-Compact 180mm Tail Swing	Combustion variants feature an incredibly tight 180 mm tail swing radius — among the smallest in its class. This enables operation flush against walls, inside narrow trenches, along fence lines, and in confined urban job sites where larger excavators simply cannot fit. The HT15-LI electric variant optimizes further with a 733 mm tail swing and 1190 mm minimum turning radius for even tighter spaces.
5. 1850mm Dig Depth — Class-Leading	At 1850 mm maximum digging depth, the HT15 combustion variants exceed many competitors in the 1.5-ton class by 100–200 mm. Sufficient for standard utility trenching (water lines, electrical conduit, irrigation pipes), septic system excavation, swimming pool footing preparation, tree stump removal, and foundation drainage work. The 2450 mm max digging height enables direct loading into pickup trucks and small dump trailers.
6. Multi-Color Factory Options	Multiple factory-standard colors available — Yellow, Red, Blue, White, Orange, or custom RAL code matching. For OEM private-label buyers, machines ship painted in your exact brand color scheme with your logo pre-applied. Reduces landed cost and accelerates time-to-market versus post-import repainting.

OEM & Private-Label Customization

Custom Paint Color	Any RAL color code or match to your existing brand color palette. Factory-applied before shipment.
Logo Placement	Your logo on body panels, boom arm, counterweight cover, operator console, and dozer blade.
Branded Decals	Custom decals produced from your artwork file — model designation, safety warnings, contact info.
Operator Manuals	Printed under your company name and brand identity in your target market language(s).
Engine Selection	Choose from 6 engine brands + 1 electric: Laidong, Kepu 192, B&S 25T2, Kepu 292 water-cooled, Kubota D722, B&S 3864, or pure electric (HT15-LI).
Cab Configuration	Open canopy or factory-installed enclosed cab — select per unit within your fleet order.
Packaging & Crating	Custom wooden crate with branded exterior markings for mixed-container shipments. Typically 8–10 units per 40-foot HC container.

Why Choose Archer Machinery

Factory-Direct Pricing	Direct sourcing from Shandong Hightop Group manufacturing base eliminates intermediary markups. Competitive FOB/CIF/DDP pricing for importers and distributors worldwide. Volume discounts available for multi-unit container orders.
Unmatched Product Breadth	No competitor offers 8 variants in a single 1.5-ton mini excavator series. Your customers get exactly the powerplant they want — gasoline, diesel, or electric — from one supplier relationship, one spare-parts inventory, one training program, one warranty structure.
Container Load Efficiency	Compact dimensions enable efficient mixed-container loading. Combustion models typically 8–10 units per 40-foot HC container. The HT15-LI electric variant ships with batteries secured separately for safety compliance. Reduces per-unit shipping cost dramatically compared to larger machines.
Green Equipment Ready	The HT15-LI electric variant positions your business ahead of tightening emission regulations in Europe and North America. Access government green-equipment procurement contracts, qualify for environmental subsidies, enter zero-emission zones closed to combustion machinery, and appeal to sustainability-conscious corporate and municipal buyers.
Global After-Sales Support	Spare parts inventory maintained in Jinan warehouse covering all 6 engine brands plus electric motor and battery components. Technical documentation, video tutorials, and remote diagnostics support provided. Warranty terms tailored to each market’s commercial expectations.
Export Experience	JINAN ARCHER TRADE CO.,LTD has exported Chinese construction machinery to 170+ countries since 2017. Deep expertise in customs documentation, dangerous goods shipping (batteries), LC payment terms, and local regulatory compliance across all major importing regions.

Applications & Use Cases

Landscaping & Gardening	Tree stump removal, pond excavation, garden bed preparation, irrigation trenching, hardscape foundation prep, drainage ditching, soil leveling, decorative rock placement.
Utility Installation	Water pipe laying, electrical conduit trenching, fiber optic cable burial, sewer line repair, sprinkler system installation, French drain construction, backfill compaction.
Indoor & Green-Zone Work (HT15-LI)	Exclusive to the HT15-LI electric variant: Indoor bathroom/kitchen demolition, basement excavation, greenhouse soil preparation, livestock barn cleanup, hospital campus maintenance, warehouse interior renovation, museum exhibit installation, food-processing facility earthwork.
Agriculture & Farming	Fence post hole digging, livestock shelter foundation prep, irrigation channel cleaning, orchard tree planting, drainage tile installation, barn cleanup, feedlot maintenance.
Light Demolition	Interior floor removal, concrete slab breakup (with breaker attachment), bathroom/kitchen renovation debris clearance, sidewalk removal, small building teardown.
Rental Fleet Operations	Ideal rental fleet addition — low purchase price, high daily rental yield, simple maintenance, broad customer appeal across DIY homeowners, contractors, farmers, and municipal departments. The 8-variant range lets you stock different power levels for different rental tiers.

Interested in the HT15 Mini Excavator Series?

Tell us your target market, preferred engine/gasoline/diesel/electric variant, cab requirement, and desired quantity. We’ll prepare a customized quotation.
