HT13 Mini Excavator | 1.3 Ton Crawler Digger | Multi-Engine Options

Name: HT13 Mini Excavator | 1.3 Ton Crawler Digger | Multi-Engine Options
Brand: ArcherMach
SKU: ht13-mini-excavator-1-3-ton-crawler-digger-multi-engine-options
Availability: InStock

HT13 is 1.3-ton class mini crawler excavator built on a robust 1300 kg operating weight platform. It delivers a maximum digging depth of 1710 mm, 2700 mm digging height, and an industry-leading 2910 mm reach. What sets it apart: four engine brand options — standard Kepu 192 gasoline, or premium upgrades to Briggs & Stratton (USA), Changchai diesel, or genuine Kubota diesel. Features optional enclosed cab, multiple factory color choices, Beifang main hydraulic valve, EPA/CE/ISO certification, and complete OEM private-label customization for global B2B distributors and rental fleet operators.

Excavator OEM Equipment

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Mini Excavator · Gasoline
HT13 · 1.3 Ton · 4 Engine Options · Optional Cab · OEM & Private Label

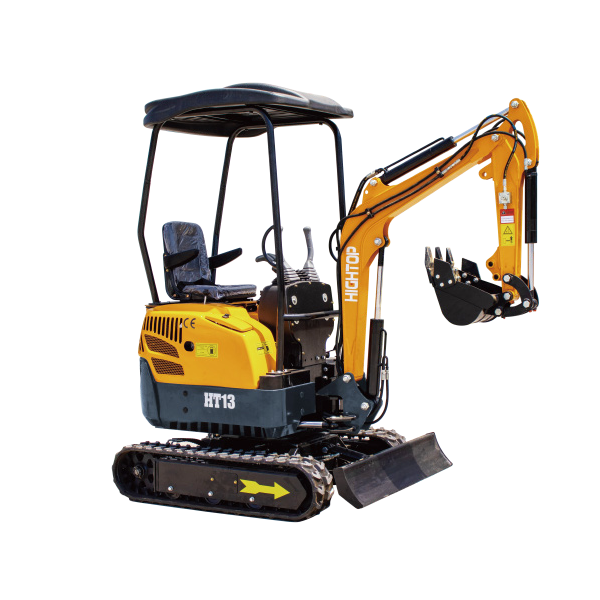

HT13 Mini Excavator — 1.3-Ton Crawler Digger with Multi-Brand Engine Options & Optional Enclosed Cab

The HT13 is China’s flagship 1.3-ton class mini crawler excavator, designed for professional landscaping contractors, utility installation crews, agricultural operations, light demolition teams, and equipment rental fleets worldwide. Built around a robust 1300 kg operating weight platform, it delivers a maximum digging depth of 1710 mm, 2700 mm digging height, and an industry-leading 2910 mm maximum reach. What sets the HT13 apart is its unmatched engine flexibility — choose from four powerplant options ranging from the standard Kepu 192 gasoline engine to premium upgrades including Briggs & Stratton, Changchai diesel, or even a genuine Kubota diesel engine. Additional features include an optional fully enclosed cab for all-weather operation, multiple factory color options for instant brand recognition, Beifang main control valve for precise hydraulic response, EPA/CE/ISO certification readiness, and complete OEM private-label customization for global construction machinery distributors and dealers.

Basic Information

Model	HT13 — Open canopy (standard) · Enclosed cab (optional)
Operating Weight	1300 kg — 1.3-ton class
Bucket Capacity	0.025 m³ (standard backhoe bucket)
Working Attachment Type	Backhoe — standard working device
Travel Speed	Variable speed hydraulic drive
Gradeability	30° slope capability
Color Options	Multiple colors available — Yellow, Red, Blue, White, Orange, or any custom RAL code
Cab Configuration	Open canopy with ROPS (standard) · Enclosed cab (optional)
Certifications Available	EPA, CE, ISO 9001 (specify when ordering)
OEM Private Label	Fully supported — Custom logo, color, decals, manuals

Engine & Powertrain — Four Configurable Options

Standard Engine	Kepu 192 — Single-cylinder, air-cooled, 4-stroke gasoline engine. Proven reliability, easy parts sourcing, cost-effective for entry-level markets.
Option 1: Premium Gasoline	Briggs & Stratton — American-made small gasoline engines. Industry benchmark for reliability in rental fleet applications. Global dealer network ensures fast spare-parts availability.
Option 2: Diesel (China)	Changchai — Chinese-manufactured diesel engine option. Delivers superior fuel economy and torque compared to gasoline alternatives. Ideal for markets where diesel fuel is cheaper or more readily available than gasoline.
Option 3: Premium Diesel	Kubota — Japanese-engineered premium diesel engine. Maximum durability, longest service life, best resale value. Recommended for demanding rental fleets and high-utilization professional users.
Main Hydraulic Valve	Beifang — China’s leading hydraulic component manufacturer. Precision-machined directional control valve ensures smooth, responsive boom/bucket/arm movement with minimal pressure loss.
Hydraulic System	Single-pump load-sensing hydraulic circuit with pilot-operated proportional controls
Travel Drive	Hydraulic track motors with mechanical track tension adjustment

Dimensions & Undercarriage

Transport Length	2325 mm — fits in standard pickup truck bed or small trailer
Total Width	1100 mm
Upper Structure Width	990 mm
Height with Canopy	2270 mm
Track Width (Shoe Width)	180 mm
Track Gauge (Center Distance)	920 mm
Ground Contact Length	1050 mm
Total Track Length	1545 mm
Tail Swing Radius	795 mm
Dozer Blade Ground Clearance	105 mm

Working Range & Digging Performance

Max Digging Height	2700 mm
Max Dumping Height	1840 mm
Max Digging Depth	1710 mm
Max Digging Reach (Radius)	2910 mm — extended reach for loading and material handling
Min Swing (Turning) Radius	1530 mm
Height at Min Turning Radius	2100 mm
Dozer Blade Max Digging Depth	270 mm
Boom Swing	Standard — enables wall-following trenching and parallel-to-foundation digging without repositioning

Key Differentiators — Why Choose the HT13

1. Four Engine Options	The HT13 is uniquely configurable with four engine brand options: Kepu 192 (standard gasoline, most economical), Briggs & Stratton (premium gasoline, global parts network), Changchai (Chinese diesel, fuel-efficient), or Kubota (premium Japanese diesel, maximum durability). No other 1.3-ton mini excavator on the market offers this level of engine flexibility — one SKU serves gasoline-preference and diesel-preference markets simultaneously.
2. 1.3-Ton Platform Advantage	At 1300 kg operating weight, the HT13 sits comfortably between the lighter 0.8–1.0-ton models and the heavier 1.5–2.0-ton compact excavators. This sweet spot delivers significantly more digging force, stability on uneven terrain, and lifting capacity than smaller machines while maintaining the compact transport dimensions (2325 × 1100 mm) that fit easily on pickup trucks and small trailers.
3. Beifang Main Control Valve	Equipped with a Beifang precision hydraulic main valve — one of China’s most respected hydraulic component manufacturers. Delivers smooth, proportional control of boom lift/lower, arm extension/retraction, bucket curl/dump, and swing functions with minimal pressure drop and heat buildup. Operators report noticeably smoother operation compared to generic valves found on budget machines.
4. Extended Reach — 2910 mm	With a 2910 mm maximum digging reach, the HT13 outperforms many competitors in its class by 200–400 mm. This extra reach is critical for: reaching over obstacles to dig on the far side, loading material directly into wheelbarrows and small dump trucks without repositioning, clearing debris from building foundations, and handling tasks that would otherwise require moving the entire machine multiple times per work cycle.
5. Optional Enclosed Cab	For year-round professional use, an optional fully enclosed cab kit is available at order time. Provides complete protection from sun exposure, rain, wind-blown dust, cold winter conditions, and job-site noise. Particularly valuable for rental fleets where operator comfort directly impacts utilization rates, and for markets with occupational safety regulations requiring operator enclosures on powered earth-moving equipment.
6. Multi-Color Factory Options	Multiple factory-standard color options available including yellow, red, blue, white, orange, and custom RAL code matching. For OEM private-label buyers, machines ship painted in your exact brand color scheme with your logo pre-applied — no post-import repainting needed. Reduces landed cost and accelerates time-to-market.

OEM & Private-Label Customization

Custom Paint Color	Any RAL color code or match to your existing brand color palette. Factory-applied before shipment.
Logo Placement	Your logo on body panels, boom arm, counterweight, operator console, and dozer blade.
Branded Decals	Custom decals produced from your artwork file — model designation, safety warnings, contact info.
Operator Manuals	Printed under your company name and brand identity in your target market language(s).
Engine Selection	Choose from 4 engine brands: Kepu 192, Briggs & Stratton, Changchai diesel, or Kubota diesel — matched to each market’s preference.
Cab Configuration	Open canopy or factory-installed enclosed cab — select per unit within your fleet order.
Packaging & Crating	Custom wooden crate with branded exterior markings for mixed-container shipments.

Why Choose Archer Machinery

Factory-Direct Pricing	Direct sourcing from Shandong Hightop Group manufacturing base eliminates intermediary markups. Competitive FOB/CIF/DDP pricing for importers and distributors worldwide.
Proven Platform Reliability	The HT13 is built on Shandong Hightop’s mature 1.3-ton platform with thousands of units deployed globally. Field-tested design with readily available spare parts and established maintenance procedures.
Container Load Efficiency	Compact dimensions (2325 × 1100 × 2270 mm) enable efficient mixed-container loading — typically 8–10 units per 40-foot HC container. Reduces per-unit shipping cost dramatically compared to larger machines.
Multi-Market Flexibility	Four engine options (gasoline/diesel, Chinese/premium international) plus EPA/CE/ISO certifications allow you to serve North America, Europe, Africa, Middle East, Southeast Asia, and South America with a single product platform.
Global After-Sales Support	Spare parts inventory maintained in Jinan warehouse. Technical documentation, video tutorials, and remote diagnostics support provided. Warranty terms tailored to each market’s commercial expectations.
Export Experience	JINAN ARCHER TRADE CO.,LTD has exported Chinese construction machinery to 170+ countries since 2017. Deep expertise in customs documentation, shipping logistics, LC payment terms, and local regulatory compliance across all major importing regions.

Applications & Use Cases

Landscaping & Gardening	Tree stump removal, pond excavation, garden bed preparation, irrigation trenching, hardscape foundation prep, drainage ditching, soil leveling, and decorative rock placement.
Utility Installation	Water pipe laying, electrical conduit trenching, fiber optic cable burial, sewer line repair, sprinkler system installation, French drain construction, and backfill compaction.
Agriculture & Farming	Fence post hole digging, livestock shelter foundation prep, irrigation channel cleaning, orchard tree planting, drainage tile installation, barn cleanup, and feedlot maintenance.
Light Demolition	Interior floor removal, concrete slab breakup (with breaker attachment), bathroom/kitchen renovation debris clearance, swimming pool demolition, sidewalk removal, and small building teardown.
Road & Infrastructure Maintenance	Pothole repair excavation, curb cut preparation, roadside drainage trenching, signpost foundation digging, pavement edge trimming, and utility access pit opening.
Rental Fleet Operations	Ideal rental fleet addition — low purchase price, high daily rental yield, simple maintenance, broad customer appeal across DIY homeowners, contractors, farmers, and municipal departments.
