HT08 Mini Excavator | 0.8 Ton Compact Crawler Digger

Name: HT08 Mini Excavator | 0.8 Ton Compact Crawler Digger
Brand: ArcherMach
SKU: ht08-mini-excavator-0-8-ton-compact-crawler-digger
Availability: InStock

Compact HT08 0.8-ton mini excavator for landscaping, gardening, and light construction. 800 kg operating weight, 0.025 m³ bucket, 1.2 m digging depth, standard boom swing, and optional EPA/CE/ISO certification. Custom colors, logos, and OEM private-label branding supported.

Excavator OEM Equipment

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Mini Excavator
HT08 · 0.8 Ton · OEM & Private Label

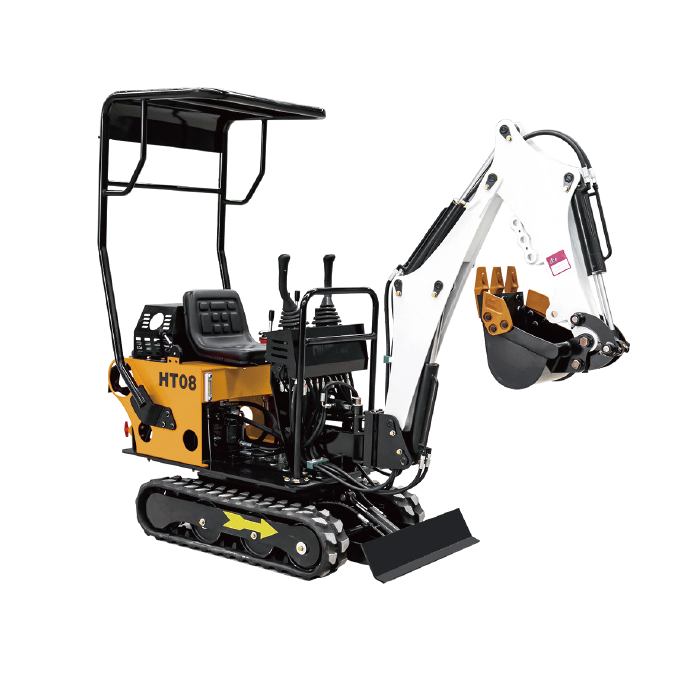

HT08 Mini Excavator — 0.8 Ton Compact Crawler Digger

The HT08 is an entry-level 0.8-ton mini excavator built for rental fleets, landscaping, and light construction jobs. With an 800 kg operating weight, 720–780 mm retractable width, 1.2 m digging depth, and standard boom swing, it fits through narrow doorways and works efficiently in tight spaces. Optional EPA, CE, and ISO certifications plus custom color and branding make it export-ready for any market.

Basic Information

Model	HT08
Operating Weight	800 kg
Bucket Capacity	0.025 m³
Bucket Width	340 mm
Rated Power	7.0–7.5 kW
Pump Type	Single gear pump
Working Pressure	14 MPa
Swing Speed	12 rpm
Travel Speed	2.2 km/h
Gradeability	30°
Ground Pressure	19 kPa

Engine & Powertrain

Standard Engine	Kepu 192F — single cylinder, 4-stroke, air cooled
Optional Engine	Briggs & Stratton (brand-recognized option for premium markets)
Rated Power	7.0–7.5 kW (9.4–10.1 HP)
Fuel Type	Gasoline
Starting System	Recoil start (electric start optional)
Transmission	Hydraulic drive to rubber crawler tracks

Dimensions

Overall Width	720–780 mm
Overall Height	1,300 mm
Overall Length	2,430 mm
Min Ground Clearance	80 mm
Track Ground Length	1,140 mm
Track Width	150 mm

Working Range

Max Digging Reach	2,450 mm
Max Digging Depth	1,200 mm
Max Digging Height	2,350 mm
Max Dumping Height	1,600 mm
Min Swing Radius	1,100 mm
Max Digging Force	7.5 kN
Dozer Blade Max Lift	120 mm
Dozer Blade Max Dig	200 mm

OEM Customization Options

Brand Logo	Your company logo on body, boom, and control panel
Paint Color	Standard red, yellow, blue — or any custom RAL color
Custom Decals	According to your design file (AI / CDR / PSD accepted)
Engine Brand	Kepu 192F standard · Briggs & Stratton optional
Canopy / Cab	Open canopy (standard) · enclosed cab with soft top optional
Attachments	Standard bucket, narrow bucket, auger, breaker, grapple, ripper
Branded Manual	Operator manual and spare parts catalog in your company name

Why Choose the HT08?

Ultra-compact footprint: 720–780 mm width and 1,300 mm height let it pass through standard doorways and garden gates.
Standard boom swing: dig along walls and fences without repeated repositioning.
Lightweight transport: at 800 kg, the HT08 can be towed or loaded on small trailers easily.
Reliable air-cooled engine: Kepu 192F with low fuel consumption and simple maintenance.
Export-ready certification: EPA, CE, and ISO available for global markets.
Full OEM support: color, logo, decals, and documentation tailored to your brand.
