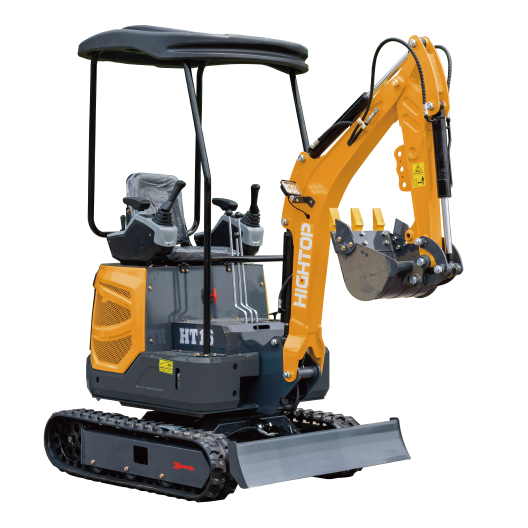

HT-16Z Mini Excavator | 900kg Compact Crawler Digger | Briggs/Kepu Engine

Name: HT-16Z Mini Excavator | 900kg Compact Crawler Digger | Briggs/Kepu Engine
Brand: ArcherMach
SKU: ht-16z-mini-excavator-900kg-compact-crawler-digger-briggs-kepu-engine
Availability: InStock

HT-16Z is compact mini crawler excavator built on a 900 kg operating weight platform, delivering an exceptional working envelope: 3130 mm maximum digging reach (class-leading in compact category), 2050 mm maximum digging depth, 2785 mm maximum digging height, and 1860 mm dumping height. Powered by your choice of Briggs & Stratton premium or Kepu economical 4-stroke gasoline engine, equipped with a precision Chaoxiang main hydraulic valve for smooth control, supporting optional enclosed cab installation, available in multiple factory colors , EPA/CE/ISO certified.

Excavator OEM Equipment

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Mini Excavator · Compact Crawler · Optional Cab
HT-16Z · Briggs/Kepu Engine · Chaoxiang Valve · Multi-Color Options · OEM & Private Label

HT-16Z Mini Excavator — Compact Power with Class-Leading Reach & Optional Enclosed Cab

The HT-16Z is China’s compact mini crawler excavator that punches far above its weight class. Built on an agile 900 kg operating weight platform, this machine delivers an impressive working envelope including a maximum digging reach of 3130 mm, maximum digging depth of 2050 mm, maximum digging height of 2785 mm, and maximum dumping height of 1860 mm — making it one of the most capable compact diggers in its size category. Powered by your choice of a Briggs & Stratton premium gasoline engine or Kepu economical engine, equipped with a precision Chaoxiang main control valve for smooth hydraulic response, and supporting optional enclosed cab installation for operator comfort. With transport dimensions of just 2450 × 1100 mm, the HT-16Z fits on small trailers and in tight job sites while still handling serious digging tasks. Available in multiple factory colors , EPA/CE/ISO certified, and fully customizable for OEM private-label branding.

Basic Information

Model	HT-16Z — Mini Crawler Excavator
Operating Weight	900 kg
Bucket Capacity	0.02 m³ (standard backhoe bucket)
Working Attachment Type	Backhoe — standard working device
Engine Options	Briggs & Stratton / Kepu — 4-stroke gasoline engines
Main Hydraulic Valve	Chaoxiang — precision main control valve
Gradeability	30° slope capability
Transport Length	2450 mm — fits pickup truck bed & small trailers
Color Options	Multiple colors available — Yellow, Red, Blue, White, Orange, custom RAL code
Cab Configuration	Open canopy (standard) · Enclosed cab optional
Certifications Available	EPA, CE, ISO 9001 (specify when ordering)
OEM Private Label	Fully supported — Custom logo, color, decals, manuals

Engine & Powertrain

Engine Option 1 — Premium	Briggs & Stratton gasoline engine. American-engineered quality, industry-leading durability, longest service intervals among small gasoline engines, and access to the world’s largest dealer network. Essential advantage for rental fleet operators where downtime directly impacts revenue. Briggs engines command higher resale value in secondary markets.
Engine Option 2 — Standard	Kepu 4-stroke gasoline engine. Economical choice with proven reliability across thousands of units shipped globally. Easy parts sourcing through established supply chains in Asia, Africa, Middle East, and South America. Lower initial purchase price ideal for price-sensitive emerging market importers.
Main Control Valve	Chaoxiangprecision main hydraulic valve. One of China’s most reputable valve manufacturers, delivering smooth proportional control, minimal internal leakage, consistent flow distribution across all functions (boom lift, arm crowd/extend, bucket curl/open, house swing), and extended service life under high-cycle operation. Superior metering accuracy for fine-positioning tasks such as landscaping, utility work, and interior demolition.
Hydraulic System Features	Pilot-assisted hydraulic controls for reduced operator fatigue, independent boom/arm/bucket circuit management, overload protection valves on all functions, and quick-coupler-ready auxiliary hydraulics for attachment interchange.
Fuel System	Carburetor fuel delivery system (simple maintenance, field-repairable), gravity-feed or pump-feed depending on engine selection. Fuel tank capacity optimized for 6–8 hours of typical operation per fill.

Dimensions & Undercarriage

Overall Length (Transport Position)	2450 mm
Overall Width	1100 mm
Upper Structure Width	990 mm
Machine Height (to Cab Top)
Standard Track Shoe Width	180 mm
Track Gauge (Center Distance)	920 mm
Track Ground Contact Length	1050 mm
Total Track Length	1350 mm
Tail Swing Radius	795 mm — compact rear swing for close-to-wall operation
Dozer Blade Ground Clearance	105 mm
Dozer Blade Max Digging Depth

Working Range & Digging Performance

Max Digging Height	2785 mm
Max Dumping Height	1860 mm
Max Digging Depth	2050 mm
Max Digging Reach (Radius)	3130 mm — class-leading reach in compact category
Min Swing (Turning) Radius	1655 mm
Max Height at Min Turning Radius	2205 mm
Slope Capability	30° gradeability

Key Differentiators — Why Choose HT-16Z?

🎯 Class-Leading Reach	With a 3130 mm maximum digging reach and 2785 mm maximum digging height, the HT-16Z outperforms many larger machines in its compact form factor. Reach deeper trenches from a single position, load material over obstacles without repositioning, and work closer to walls thanks to the tight 795 mm tail swing radius.
⚙️ Chaoxiang Precision Main Valve	Equipped with a genuine Chaoxiang main hydraulic valve — not a generic aftermarket part. Delivers smooth, predictable control response, superior fine-positioning capability for precision tasks, minimal internal heat generation, and proven long-term reliability under demanding duty cycles. A key differentiator versus budget alternatives using unbranded valves.
🔧 Dual Engine Brand Choice	Briggs & Stratton for premium rental-fleet-grade durability with global dealer network support, or Kepu for cost-effective reliability with easy local parts sourcing. Match the engine brand to your target market’s service infrastructure and price positioning strategy.
🏠 Compact Transport Footprint	At only 2450 mm long × 1100 mm wide in transport position, the HT-16Z rides in a standard pickup truck bed or on a small utility trailer — no CDL or oversize permit needed. Fits through standard doorways and gates, maneuvers inside buildings and narrow alleyways where larger machines cannot access.
🎨 Multiple Factory Colors	Multiple colors available — Yellow (construction standard), Red (high visibility), Blue, White, Orange, or any custom RAL code for fleet matching or brand identity. Factory-applied paint ensures professional finish quality and corrosion resistance.
🚜 Optional Enclosed Cab	Factory-fitted enclosed cab option available for operator protection against sun, rain, dust, and cold. Converts the machine from a fair-weather tool to an all-day-all-season workhorse — critical for professional users and rental fleets serving diverse climate zones.

OEM & Private Label Customization

Custom Paint Color	Choose from factory standard colors or specify any RAL code for exact brand-color matching
Custom Logo Application	Your company logo applied to body panels, counterweight cover, and boom arm structure
Branded Decals & Stickers	Safety labels, model badges, and warning stickers printed under your brand name
Operator Manual Branding	Custom-printed owner’s manual and service guide with your company logo and contact information
Engine Selection	Briggs & Stratton or Kepu — match engine brand to your target market preferences and service network availability
Cab Configuration	Open canopy (standard) or factory-fitted enclosed cab (upgrade option)
Packaging & Crate Branding	Custom export crate with your branding for professional container-unboxing experience

Why Source HT-16Z Through Archer Machinery?

Factory-Direct Pricing	Direct sourcing from Shandong Hightop Group manufacturing base eliminates middlemen margins. Competitive FOB/CIF/DDP pricing for B2B importers worldwide.
Proven Reliability	Thousands of Hightop mini excavators exported to 170+ countries across Africa, Middle East, Southeast Asia, South America, and Europe since 2017. Established track record of quality and after-sales responsiveness.
Container Loading Efficiency	Compact footprint allows efficient container utilization — multiple units per 40ft HC container reduces per-unit shipping cost. Mix-and-match with other Hightop models in same shipment.
Spare Parts Availability	Complete spare parts kit available with every order. Common wear items (bucket teeth, tracks, filters, hoses, seals) stocked for immediate air shipment. Engine parts sourced through Briggs/Kepu global networks.
Certification Support	EPA (North America), CE (EU), ISO 9001 documentation provided. Additional certifications (SONCAP, CIQ, INMETRO) can be arranged upon request for specific country requirements.
One-Stop Solution	Archer Machinery handles full export process: order confirmation → production QC → pre-shipment inspection → ocean/air freight booking → customs clearance documentation → door delivery. Single point of accountability from factory floor to your warehouse dock.

Applications & Use Cases

🌳 Landscaping & Gardening	Digging planting holes, tree stump removal, garden bed preparation, pond excavation, irrigation trenching, landscape grading, and backyard earthmoving projects
🏗️ Construction Sites	Foundation trenching, utility conduit burial, site preparation, backfilling, concrete breakout, indoor demolition in confined spaces, basement excavation
🔧 Utility & Pipeline Work	Water pipe installation, electrical conduit trenching, sewer line repair, fiber optic cable burial, drainage ditch excavation, road crossing trenches
🚜 Agriculture & Farming	Irrigation channel digging, fence post hole drilling (with auger attachment), livestock shelter foundation, farm building site prep, orchard soil cultivation
🛣️ Road & Infrastructure Maintenance	Roadside drainage, pothole repair excavation, curb cutting, sidewalk removal, asphalt patch preparation, signpost foundation digging
📦 Rental Fleet Operations	Ideal for equipment rental companies — low purchase cost, high demand from homeowners/contractors, easy transport by customer pickup truck, simple maintenance, strong resale value. Optional enclosed cab extends rentable season into winter months.
