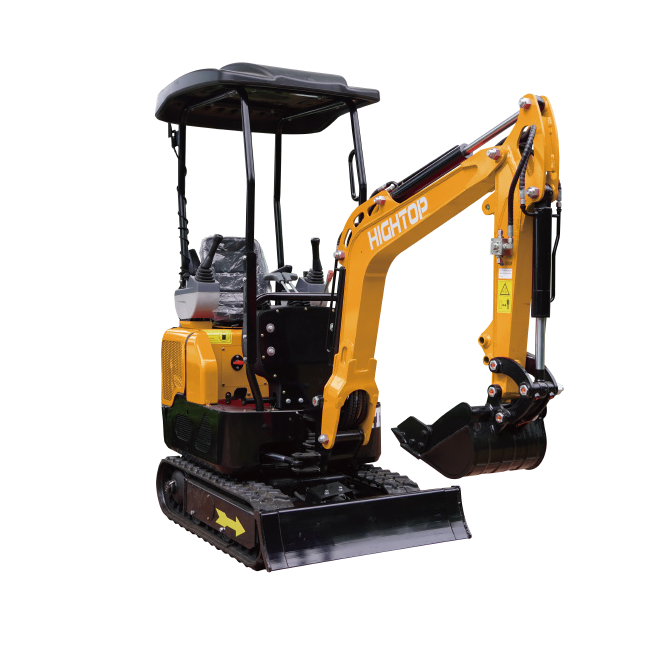

HT-12G Mini Excavator | 1.2-Ton Diesel Crawler Digger | Kubota Engine

Name: HT-12G Mini Excavator | 1.2-Ton Diesel Crawler Digger | Kubota Engine
Brand: ArcherMach
SKU: ht-12g-mini-excavator-1-2-ton-diesel-crawler-digger-kubota-engine
Availability: InStock

HT-12G and HT12 are 1.2-ton diesel-powered mini crawler excavators featuring a genuine Kubota 3-cylinder water-cooled engine (D722/Z482, 10.2 kW), class-leading 3000 mm maximum digging depth, German-manufactured dual-stage air filtration system, optional Eaton USA travel motor, large-capacity 20 L fuel and hydraulic tanks, and two cab configurations: factory-fitted enclosed cab (HT-12G) or open canopy with optional cab kit (HT12). CE/EPA/ISO certification ready.

Excavator OEM Equipment

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Mini Excavator · Diesel
HT-12G / HT12 · 1.2 Ton · Kubota Diesel Engine · OEM & Private Label

HT-12G / HT12 Mini Excavator — 1.2-Ton Crawler Digger with Kubota Water-Cooled Diesel Engine & Enclosed Cab Option

The HT-12G / HT12 represents China’s premium entry into the compact diesel mini excavator segment. Built around a robust 1200 kg operating weight platform with a class-leading 3000 mm maximum digging depth, it is powered by a genuine Kubota 3-cylinder water-cooled diesel engine (D722 or Z482 model, 10.2 kW @ 2500 rpm) delivering superior low-end torque and all-day runtime efficiency that gasoline alternatives cannot match. Available in two configurations: the HT-12G ships factory-fitted with a fully enclosed cab for all-weather protection, while the HT12 features an open canopy design with an optional add-on cab kit for flexible fleet deployment. Additional premium features include a German-manufactured dual-stage air filtration system, optional Eaton USA hydraulic travel motor, large-capacity 20 L diesel and hydraulic fluid tanks, EPA/CE/ISO certification readiness, and complete OEM private-label customization for global construction equipment distributors.

Basic Information

Model	HT-12G (enclosed cab) / HT12 (open canopy, optional cab)
Operating Weight	1200 kg
Working Weight	1010 kg
Bucket Capacity	0.025 m³ (130 kg payload)
Rated Power	10.2 kW @ 2500 rpm
Engine Configuration	3-cylinder, water-cooled, 4-stroke diesel
Fuel Type	Diesel — not gasoline
Digging Force	6.8 kN
Travel Speed	1.5 km/h (variable speed)
Climbing Ability	30° slope capability
Working Attachment	Backhoe / ripper (standard)

Engine & Powertrain — Genuine Kubota Diesel

Engine Brand	Kubota — Japan’s leading compact diesel engine manufacturer
Engine Models	D722 or Z482 — 3-cylinder water-cooled diesel (configurable by order)
Engine Type	3-cylinder, water-cooled, 4-stroke diesel — not air-cooled gasoline
Rated Power	10.2 kW (approx. 13.7 HP) @ 2500 rpm
Displacement / Bore × Stroke	0.719 L (65 mm bore, 68 mm stroke per cylinder)
Main Hydraulic Pump	Qingtian brand gear pump
Travel Motor	Standard hydraulic motor · Eaton (USA) optional upgrade for enhanced durability
Air Filtration System	German-manufactured filter element with dual pre-filter tubes — protects engine from dust, sand, and fine particles in harsh working environments
Fuel Tank Capacity	20 L large-capacity diesel tank (larger than typical 1-ton class) + 20 L hydraulic tank

Dimensions & Undercarriage

Overall Dimensions (L×W×H)	2775 × 930 × 2270 mm (with cab) / 2775 × 930 × 2219 mm (canopy)
Transport Length	2380 mm
Total Width	930 mm (upper structure: 940 mm)
Crawler Track Gauge	1195 mm
Crawler Track Length	1680 mm (HT-12G) / 1320 mm (HT12)
Track Shoe Plate Length	1235 mm
Rear Swing Radius	820–890 mm
Undercarriage Base Width	856 mm
Ground Clearance	1700 mm (max) / 910 mm (undercarriage)
Track Height	320 mm
Min Swing Radius	1330–1510 mm

Working Range & Performance

Max Digging Depth	3000 mm — class-leading depth for 1.2-ton excavator
Max Digging Height	2435 mm
Max Dumping Height	1850 mm
Max Dumping Reach	1970–2920 mm
Max Ground Digging Radius	2850 mm
Bucket Max Dig Depth	1345 mm
Dozer Blade Max Dig Depth	255 mm
Min Turning Radius	1330–1510 mm

Cab Configurations — Two Variants Available

HT-12G (Left Image)	Factory-fitted enclosed cab — full steel enclosure with doors, windows, and overhead roof. Protects operator from sun, rain, wind-blown dust, cold weather, and noise. Total height with cab: 2270 mm. Ideal for year-round professional use, rental fleets, and markets requiring operator safety compliance.
HT12 (Right Image)	Open canopy with ROPS frame — lightweight, excellent visibility, lower total height (2219 mm). Optional add-on cab kit available for retrofitting. Ideal for cost-conscious buyers who want flexibility, warm-climate operations, and easy transport through low-clearance spaces.
Operator Station	Adjustable operator seat, dual-lever pilot controls with intuitive layout, instrument dashboard panel
Boom Swing	Standard — enables parallel-to-wall digging along building foundations, fence lines, and trenches without repositioning the machine

Key Differentiators — Why Choose the HT-12 Series

1. Genuine Kubota Diesel Engine	Unlike most 1-ton mini excavators that run on small gasoline engines, the HT-12 uses a genuine Kubota 3-cylinder water-cooled diesel engine (D722/Z482). Delivers higher torque at low RPM, 30–50% better fuel economy during long work days, dramatically longer engine life (5000+ hour typical), and diesel fuel availability at virtually any job site worldwide.
2. Class-Leading 3000 mm Dig Depth	With a 3000 mm maximum digging depth, the HT-12 outperforms most competitors in its weight class (typically 1500–1800 mm). This means deeper utility trenching, foundation excavation for small structures, tree stump removal, and drainage installation without upgrading to a larger, more expensive machine.
3. German Air Filtration System	German-manufactured dual-stage air filtration with primary filter element and dual pre-filter intake tubes. Critical for protecting the precision Kubota diesel engine in dusty construction sites, sandy environments, agricultural fields, and demolition debris conditions where ordinary filters clog rapidly.
4. Large-Capacity Fuel & Hydraulic Tanks	20 L diesel fuel tank plus 20 L hydraulic fluid tank — both significantly larger than typical 1-ton class capacities. Means fewer refueling stops, longer continuous work cycles, reduced operator downtime, and higher daily productivity per machine.
5. Eaton Travel Motor Option	Optional Eaton (USA) hydraulic travel motor upgrade available for customers demanding maximum component durability. Eaton motors are recognized globally for reliability in harsh-duty applications, offering longer seal life, smoother speed modulation under load, and easier parts sourcing in international markets.
6. Dual Cab Configuration Options	Order either HT-12G with factory-installed enclosed cab for immediate all-weather deployment, or HT12 with open canopy plus optional cab kit for budget flexibility. Both configurations share identical mechanical specifications, engine, hydraulics, and working range — only the cab differs.

OEM & Private Label Customization

Custom Brand Logo	Your company logo placed on body panels, boom arm, counterweight, cab door (if equipped), and control console
Paint Color Options	Standard: Multiple colors available · or specify any custom RAL code for exact corporate identity matching
Body Decals	Custom decals produced from your artwork file (AI / CDR / PDF accepted) — applied to hood, sides, rear counterweight, and cab exterior
Engine Selection	Kubota D722 or Z482 — choose based on target market parts network and service infrastructure preference
Travel Motor	Standard hydraulic motor or Eaton (USA) upgrade for premium specification orders
Cab Configuration	HT-12G: Enclosed cab (factory-fit) · HT12: Open canopy + optional cab kit
Quick-Change Attachments	Standard bucket, narrow trenching bucket, auger drill, hydraulic breaker hammer, grapple, ripper tooth, landscape rake, dozer blade (standard)
Branded Documentation	Operator manual and spare parts catalog printed under your company brand name and logo

Why Choose Archer Machinery?

Factory-Direct Pricing	Direct export from Shandong Hightop Group factory — no middlemen, no distributor markup. Competitive FOB pricing with transparent cost breakdowns for bulk order quotations.
Proven Diesel Platform	Kubota diesel engine delivers proven reliability in demanding conditions. Water-cooling prevents overheating during extended summer operation — a common failure point for air-cooled gasoline models.
Deep Digging Capability	3000 mm max digging depth exceeds virtually every competitor in the 1-ton class. One machine handles tasks that normally require a 1.6–2 ton unit — saving your customers money on purchase price, shipping weight, and trailer requirements.
Dual Cab Strategy	Mix HT-12G (cab) and HT12 (canopy) within a single container order to match different customer segments — premium rental market gets cabs, cost-sensitive DIY market gets canopies. Same spare parts inventory serves both models.
Global Certification Ready	EPA (North America), CE (European Union), ISO 9001 (international quality) certifications configurable per order. We handle documentation, test reports, and compliance paperwork so you don’t have to.
Complete After-Sales Support	Spare parts warehouse in Jinan with 95%+ parts availability. Digital parts catalog with exploded diagrams. Video technical support via WhatsApp/WeChat. Container loading optimization for maximum units per shipment.

Applications

Utility Trenching	Water pipe, electrical conduit, fiber optic cable, irrigation line installation — 3000 mm depth covers most residential and light commercial trenching needs without a larger machine
Landscaping & Gardening	Pool excavation, garden bed preparation, tree stump removal, pond digging, retaining wall footings, drainage ditching, soil grading
Agriculture & Farming	Fence post hole drilling (auger attachment), livestock shelter foundations, irrigation channel maintenance, orchard soil preparation, farm building footings
Indoor Demolition	Zero-emission indoor operation (diesel with proper ventilation), bathroom/kitchen renovation floor removal, interior concrete breaking (breaker attachment), basement excavation
Road & Sidework	Curb cut repair, sidewalk edge trimming, asphalt patch prep, roadside drainage, signpost hole excavation, pothole cleanup
Rental Fleet Operations	Durable Kubota diesel engine withstands rental abuse. Large 20 L tanks reduce customer complaints about frequent refueling. Cab option satisfies premium rental tier. Shared parts with other Hightop models simplifies fleet maintenance.

Interested in the HT-12G / HT12 Diesel Mini Excavator?

Tell us your preferred configuration (HT-12G with cab or HT12 with canopy), target quantity, export destination, and required certifications. We’ll prepare a quotation within 24 hours.
