HT-10H Mini Excavator | 1.0 Ton Crawler Digger with Optional Cab

Name: HT-10H Mini Excavator | 1.0 Ton Crawler Digger with Optional Cab
Brand: ArcherMach
SKU: ht-10h-mini-excavator-1-0-ton-crawler-digger-with-optional-cab
Availability: InStock

Premium HT-10H 1.0-ton mini excavator featuring optional fully enclosed cab for all-day operator comfort. 1000 kg operating weight, 0.025 m³ bucket, 1.75 m digging depth, boom swing standard. Five engine brand options available — Kepu 192F, Runyou, Yupu, Kohler, Changchai. Custom colors, logos, and OEM private-label supported with EPA/CE/ISO certification.

Excavator OEM Equipment

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Mini Excavator
HT-10H · 1.0 Ton · OEM & Private Label

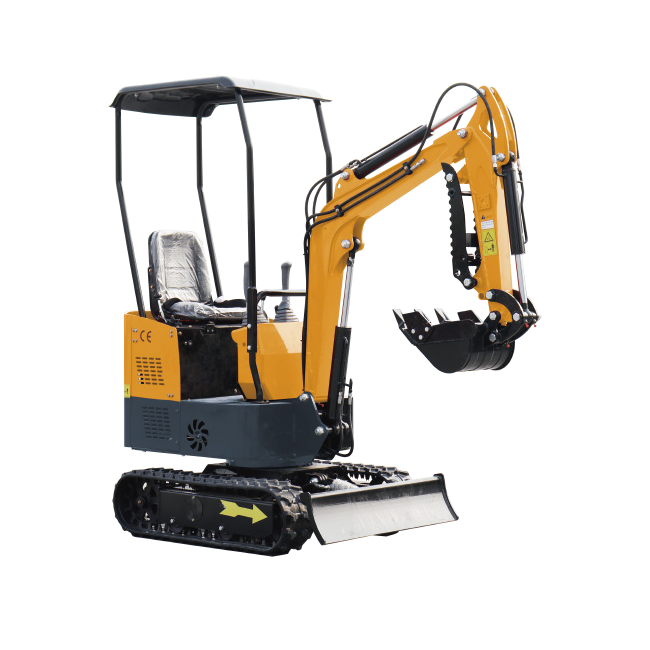

HT-10H Mini Excavator — 1.0 Ton Crawler Digger with Optional Cab

The HT-10H is a premium 1.0-ton mini excavator built for operators who demand comfort without sacrificing versatility. With a 1000 kg operating weight, 930 mm chassis width, 1.75 m digging depth, standard boom swing, and an optional fully enclosed cab for all-day operation, it excels in landscaping, rental fleets, and small construction jobs. Multiple engine brand options, optional EPA/CE/ISO certifications, and full OEM customization make it export-ready worldwide.

Basic Information

Model	HT-10H
Operating Weight	1000 kg
Bucket Capacity	0.025 m³ (120 kg payload)
Bucket Width	380 mm
Rated Power	7.0 kW @ 3000 rpm
Engine Configuration	Single cylinder, air cooled
Pump Displacement	6.8 ml/r
Travel Speed	1.5 km/h
Overall Dimensions	2900 × 930 × 2180 mm (L×W×H)
Wheelbase	910 mm
Track Ground Length	1230 mm

Engine & Powertrain Options

Standard Engine	Kepu 192F — single cylinder, 4-stroke, air cooled, 7.0 kW @ 3000 rpm
Option 2	Runyou (Runye) — single cylinder air-cooled petrol engine
Option 3	Yupu — single cylinder air-cooled petrol engine
Option 4	Kohler — premium brand option for North American markets
Option 5	Changchai — cost-effective diesel alternative
Transmission	Hydraulic drive to rubber crawler tracks

Undercarriage & Dimensions

Platform Ground Clearance	380 mm
Rear Swing Radius	784 mm
Undercarriage Width	896 mm
Track Gauge	180 mm
Undercarriage Ground Clearance	132 mm
Track Height	320 mm
Min Swing Radius	1330 mm

Working Range

Max Digging Reach	3050 mm
Max Digging Depth	1750 mm
Max Vertical Digging Depth	1550 mm
Max Digging Height	2610 mm
Max Dumping Height	1850 mm
Max Ground Digging Radius	3050 mm
Dozer Blade Max Lift	345 mm
Dozer Blade Max Dig	255 mm

Cab & Comfort Features

Standard Configuration	Open canopy with overhead guard
Optional Enclosed Cab	Fully enclosed cab with soft top — protects operator from sun, rain, dust, and noise
Boom Swing	Standard — dig parallel to walls without repositioning
Operator Station	Ergonomic seat with armrests, intuitive control levers

OEM Customization Options

Brand Logo	Your company logo on body, boom, and control panel
Paint Color	Standard red, yellow, blue — or any custom RAL color
Custom Decals	According to your design file (AI / CDR / PSD accepted)
Engine Brand	5 choices: Kepu 192F (standard) · Runyou · Yupu · Kohler · Changchai
Canopy / Cab	Open canopy (standard) · enclosed cab optional
Attachments	Standard bucket, narrow bucket, auger, breaker, grapple, ripper
Branded Manual	Operator manual and spare parts catalog in your company name

Why Choose the HT-10H mini Excavator?

Optional enclosed cab: Unique among 1.0-ton class machines — protects the operator from weather, dust, and noise for comfortable all-day operation.
Five engine options: Kepu 192F, Runyou, Yupu, Kohler, or Changchai — match your target market’s preference for brand recognition, fuel type, or budget.
More reach than 0.8-ton class: 1.75 m digging depth and 3.05 m reach let you handle deeper trenches and wider grading tasks.
Compact footprint: 930 mm width fits through residential gateways while delivering 1-ton class performance.
Boom swing standard: Dig alongside walls and obstacles without constant machine repositioning.
Export-ready: Optional EPA, CE, and ISO certifications for regulated markets across all continents.
