HT-10BZ Mini Excavator | 1.0-Ton Crawler Digger with Steel Hydraulic Hoses

Name: HT-10BZ Mini Excavator | 1.0-Ton Crawler Digger with Steel Hydraulic Hoses
Brand: ArcherMach
SKU: ht-10bz-mini-excavator-1-0-ton-crawler-digger-with-steel-hydraulic-hoses
Availability: InStock

HT-10BZ is the comfort-upgrade edition in China 1-ton mini excavator series. Five factory-installed upgrades included standard: steel-braided hydraulic hoses, ergonomically adjustable seat, instrument dashboard panel, cylinder protection guards, and sound insulation. Briggs & Stratton or Kopu gasoline engine, multiple color options (red/yellow/blue), optional enclosed cab, full OEM private-label customization for global B2B distributors and rental fleet operators.

Excavator OEM Equipment

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Mini Excavator
HT-10BZ · 1.0 Ton · Comfort Edition · OEM & Private Label

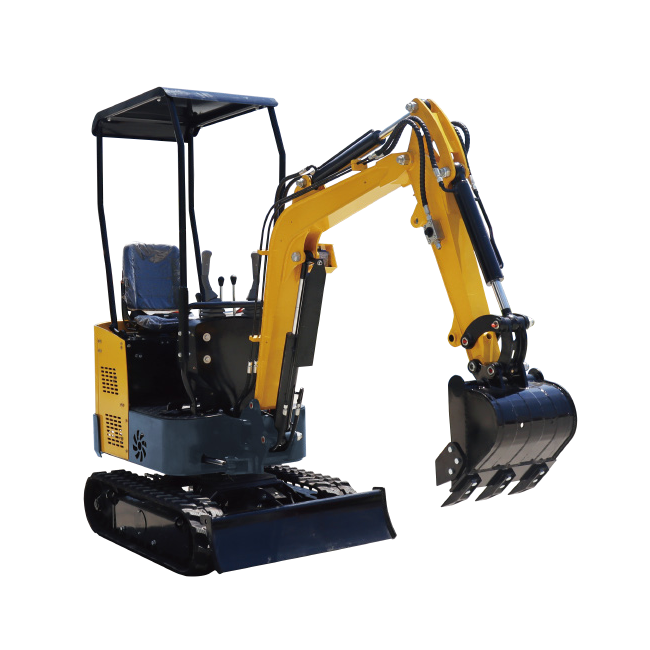

HT-10BZ Mini Excavator — 1.0-Ton Crawler Digger with Steel Hydraulic Hoses & Sound Insulation

The HT-10BZ is the comfort-upgrade edition in China popular 1-ton mini excavator series. Built around a 1000 kg operating weight platform with a compact 930 mm chassis width and 1750 mm digging depth, it stands out with five factory-installed upgrades: steel-braided hydraulic hoses for maximum durability, an ergonomically adjustable operator seat, a comprehensive instrument dashboard panel, integrated cylinder protection guards, and effective sound insulation for reduced operator fatigue during long shifts. Available with Briggs & Stratton or Kopu gasoline engine, multiple color options (red, yellow, blue), optional enclosed cab, EPA/CE/ISO certification, and complete OEM private-label customization for global B2B distributors and rental fleet operators.

Basic Information

Model	HT-10BZ
Operating Weight	1000 kg
Bucket Capacity	0.025 m³ (120 kg payload)
Bucket Width	380 mm
Rated Power	10.1 kW / 7.0 kW
Engine Configuration	Single cylinder, air cooled, 4-stroke gasoline
Engine Displacement	0.211 L (bore × stroke: 70 × 55 mm)
Hydraulic Pump Displacement	6.8 ml/r
Travel Speed	1.5 km/h
Overall Dimensions	2900 × 900(930) × 2180 mm (L×W×H)
Wheelbase	910 mm

Engine & Powertrain Options

Standard Engine	Briggs & Stratton gasoline engine — single cylinder, 4-stroke, air cooled, 10.1 kW @ rated output
Alternative Engine	Kopu brand gasoline engine — cost-effective option at 7.0 kW
Fuel Type	Gasoline (petrol) — easy refueling worldwide
Engine Displacement	0.211 L (70 × 55 mm bore × stroke)
Hydraulic Pump	Gear pump, displacement 6.8 ml/r
Drive System	Hydraulic drive to rubber crawler tracks

Undercarriage & Dimensions

Platform Ground Clearance	380 mm
Rear Swing Radius	784 mm
Undercarriage Width	896 mm
Track Gauge	180 mm
Undercarriage Ground Clearance	132 mm
Track Height	320 mm
Track Total Length	1230 mm
Min Swing Radius	1330 mm

Working Range & Performance

Max Digging Depth	1750 mm
Max Vertical Digging Depth	1550 mm
Max Digging Height	2610 mm
Max Dumping Height	1850 mm
Max Ground Digging Radius	3050 mm
Dozer Blade Max Lift Height	345 mm
Dozer Blade Max Dig Depth	255 mm

5 Key Upgrades — What Sets the HT-10BZ Apart

1. Steel-Braided Hydraulic Hoses	Factory-standard steel hydraulic hoses replace standard rubber hoses for dramatically longer service life. Resists abrasion, puncture, high-pressure bursts, and UV degradation. Ideal for demanding rental fleet environments and rocky job site conditions.
2. Comfort Adjustable Seat	Ergonomically adjustable operator seat with multi-position recline and slide adjustment. Reduces operator back strain and fatigue during extended work shifts compared to fixed-position seats found on economy models.
3. Instrument Dashboard Panel	Full instrument panel dashboard providing real-time visibility into engine temperature, fuel level, hour meter, oil pressure, and system status indicators — enabling proactive maintenance scheduling and preventing unexpected downtime.
4. Cylinder Protection Guards	Integrated hydraulic cylinder rod protection shields exposed cylinder rods from rock strikes, debris impact, and accidental damage during tight-space operation. Extends cylinder seal life by up to 40% in typical working conditions.
5. Sound Insulation	Factory-installed sound insulation package significantly reduces engine and mechanical noise reaching the operator station. Meets urban worksite noise regulations and improves operator concentration and comfort during multi-hour operation cycles.

Cab Configuration & Operator Station

Standard Cab	Open canopy with overhead guard and ROPS frame
Optional Enclosed Cab	Fully enclosed cab with soft-top roof available — protects operator from sun, rain, wind-blown dust, and cold weather. Ideal for year-round outdoor operation and premium rental fleet specification.
Operator Seat	Adjustable comfort seat — multi-position adjustment, ergonomic design for reduced operator fatigue
Boom Swing	Standard — dig parallel to walls, fence lines, and building foundations without repositioning the machine
Control Levers	Dual-lever pilot control system with intuitive layout

OEM & Private Label Customization

Custom Brand Logo	Your company logo placed on body, boom arm, counterweight, and control panel
Paint Color Options	Standard: Red · Yellow · Blue — or specify any custom RAL color code for exact corporate identity matching
Body Decals	Custom decals produced from your artwork file (AI / CDR / PDF accepted) — applied to hood, sides, and rear counterweight
Engine Selection	Briggs & Stratton (standard, 10.1 kW) or Kopu (alternative, 7.0 kW) — choose based on target market pricing and power requirements
Cab Option	Open canopy (standard) · Enclosed cab optional for premium markets
Quick-Change Attachments	Standard bucket, narrow trenching bucket, auger, hydraulic breaker hammer, grapple, ripper tooth, landscape rake
Branded Documentation	Operator manual and spare parts catalog printed under your company brand name and logo

Why Choose the HT-10BZ?

5 factory upgrades included: Steel hydraulic hoses, adjustable seat, instrument panel, cylinder guards, and sound insulation come standard — features typically sold as expensive add-ons on competing 1-ton mini excavators.
Briggs & Stratton engine reliability: Powered by the globally recognized Briggs & Stratton gasoline engine (10.1 kW) with proven field performance across 170+ countries. Parts availability through local dealers worldwide.
Rental-fleet ready build quality: Steel hoses and protective components are specifically designed to withstand the high-utilization, multi-operator demands of equipment rental fleets — reducing downtime and maintenance costs.
Full OEM private-label support: Complete customization including your brand logo, paint color (standard red/yellow/blue plus unlimited RAL codes), custom decals, branded documentation, and engine choice.
Certified for global markets: Optional EPA, CE, and ISO 9001 certification enables direct import into North America, European Union, Australia, Southeast Asia, Middle East, Africa, and South America without compliance barriers.
Compact footprint, big capability: At just 2900 mm length and 896 mm undercarriage width, the HT-10BZ navigates tight backyard spaces, greenhouse aisles, indoor demolition sites, and between buildings where larger machines cannot reach.

Ideal Applications

Landscaping & Garden	Tree stump removal, garden bed preparation, pond excavation, drainage ditch digging, soil grading, and small-scale earthmoving in residential properties
Utility & Pipeline	Water pipe installation, electrical conduit trenching, fiber optic cable laying, sewer lateral repair, irrigation system installation in confined urban spaces
Indoor Demolition	Bathroom floor removal, interior wall demolition, swimming pool renovation, basement excavation, concrete slab breaking with breaker attachment indoors
Agriculture & Farming	Greenhouse trenching for heating pipes, orchard tree planting holes, livestock barn cleanup, farm pond dredging, fence post hole drilling with auger attachment
Rental Fleet Operations	Ideal rental machine — durable steel hose construction handles multiple-operator abuse, low fuel consumption reduces rental operating costs, compact size fits pickup truck transport, broad appeal to DIY homeowners and contractors alike
Municipal & Public Works	Roadside utility repair, park pathway construction, cemetery grave digging, sidewalk edge cutting, municipal tree stump grinding access, noise-sensitive residential zone work (sound-insulated)

Interested in the HT-10BZ Mini Excavator for Your Market?

Tell us your target market, required color scheme, engine preference, and whether you need the enclosed cab option. We’ll prepare a customized quotation with OEM branding details.
