Compact HT-10B 1.0-ton mini excavator for landscaping, small construction, and rental fleets. 1000 kg operating weight, 0.025 m³ bucket, 1.75 m digging depth, standard boom swing, and optional EPA/CE/ISO certification. Custom colors, logos, and OEM private-label branding supported.

Excavator OEM Equipment

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Mini Excavator
HT-10B · 1.0 Ton · OEM & Private Label

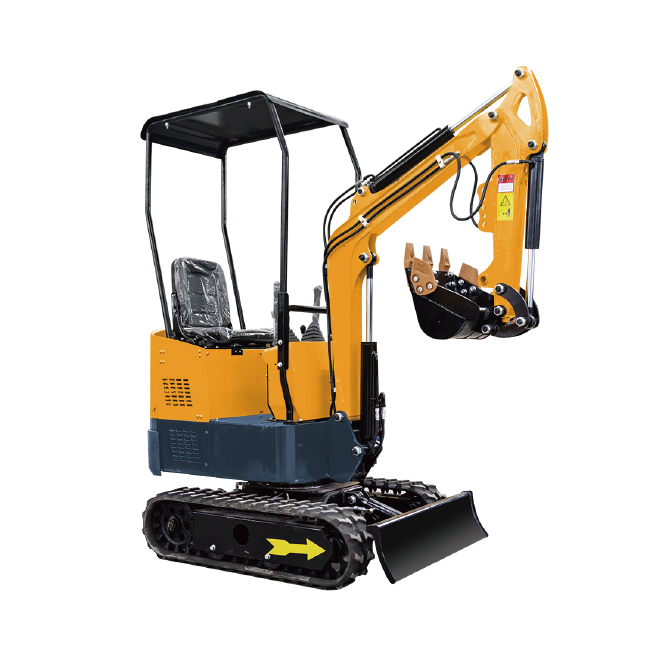

HT-10B Mini Excavator — 1.0 Ton Compact Crawler Digger

The HT-10B is a versatile 1.0-ton mini excavator built for landscaping, small construction, and rental fleets. With a 1000 kg operating weight, 930 mm chassis width, 1.75 m digging depth, and standard boom swing, it delivers more reach and power than the HT08 while staying compact enough for residential and tight-space jobs. Optional EPA, CE, and ISO certifications plus custom color and branding make it export-ready for any market.

Basic Information

Model	HT-10B
Operating Weight	1000 kg
Bucket Capacity	0.025 m³
Bucket Width	380 mm
Rated Power	7.0 kW @ 3000 rpm
Engine Configuration	Single cylinder, air cooled
Travel Speed	1.5 km/h
Overall Dimensions	2900 × 930 × 2180 mm (L×W×H)
Wheelbase	910 mm
Track Ground Length	1230 mm
Platform Ground Clearance	380 mm

Engine & Powertrain

Standard Engine	Kepu 192F — single cylinder, 4-stroke, air cooled
Optional Engine	Briggs & Stratton (brand-recognized option for premium markets)
Rated Power	7.0 kW (9.4 HP)
Fuel Type	Gasoline
Starting System	Recoil start (electric start optional)
Transmission	Hydraulic drive to rubber crawler tracks

Undercarriage & Dimensions

Chassis Width	896 mm
Track Width	180 mm
Track Height	320 mm
Undercarriage Ground Clearance	132 mm
Platform Rear Swing Radius	784 mm
Min Swing Radius	1330 mm

Working Range

Max Digging Reach	3050 mm
Max Digging Depth	1750 mm
Max Vertical Digging Depth	1550 mm
Max Digging Height	2610 mm
Max Dumping Height	1850 mm
Max Ground Digging Radius	3050 mm
Dozer Blade Max Lift	345 mm
Dozer Blade Max Dig	255 mm

OEM Customization Options

Brand Logo	Your company logo on body, boom, and control panel
Paint Color	Standard red, yellow, blue — or any custom RAL color
Custom Decals	According to your design file (AI / CDR / PSD accepted)
Engine Brand	Kepu 192F standard · Briggs & Stratton optional
Canopy / Cab	Open canopy (standard) · enclosed cab with soft top optional
Attachments	Standard bucket, narrow bucket, auger, breaker, grapple, ripper
Branded Manual	Operator manual and spare parts catalog in your company name

Why Choose the HT-10B?

More reach than 0.8-ton class: 1.75 m digging depth and 3.05 m reach let you handle deeper trenches and wider grading tasks.
Compact but stable: 930 mm width and 1.23 m track length balance maneuverability and jobsite stability.
Standard boom swing: Dig parallel to walls and obstacles without constant repositioning.
Canopy or cab: Optional enclosed cab protects the operator in harsh weather and dusty environments.
Export-ready: Optional EPA, CE, and ISO certifications for North America, Europe, and other regulated markets.
Full OEM support: Colors, logos, decals, engines, and manuals can be customized for your brand.
