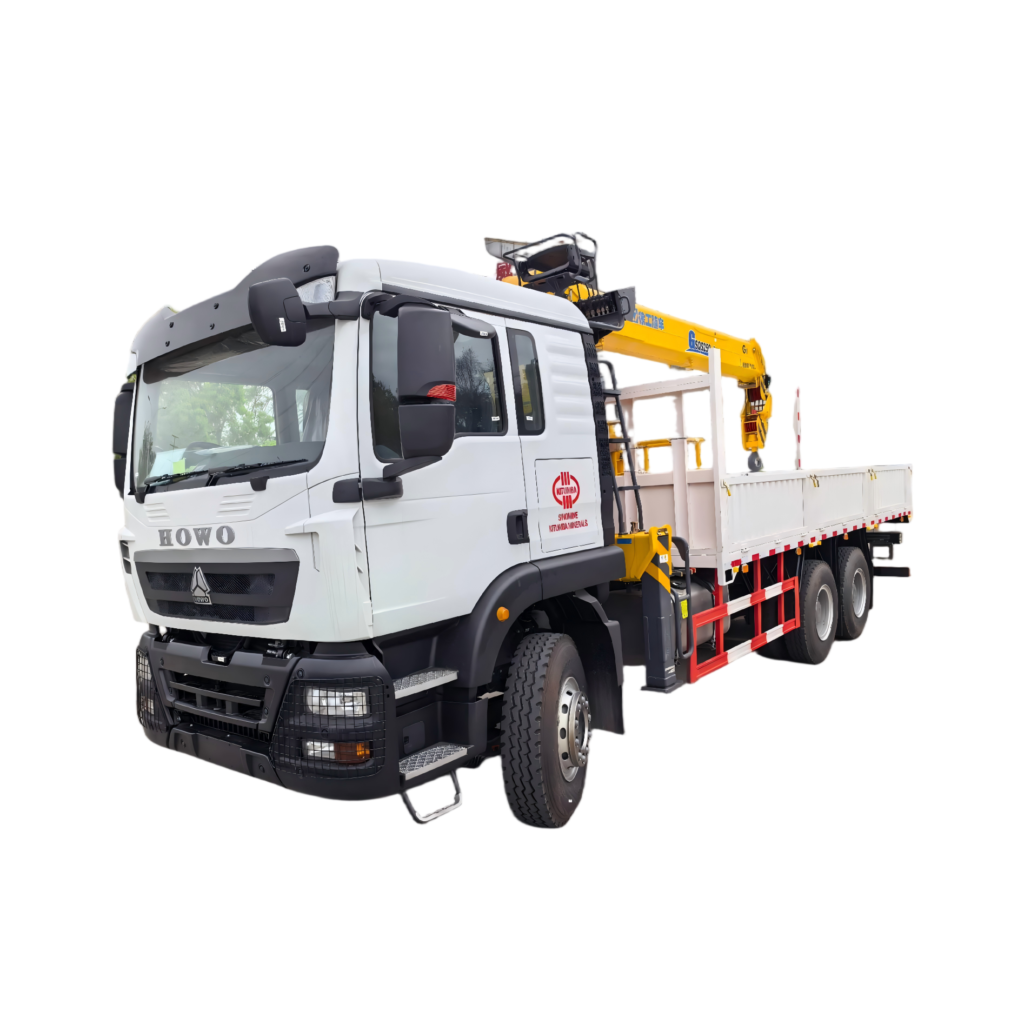

HOWO TX 6×4 371HP Truck Mounted 10-Ton XCMG Crane

The HOWO TX 6x4 flatbed truck with XCMG GSQS250 10-ton telescopic crane combines heavy-duty SINOTRUK chassis reliability with precision XCMG lifting power — an all-in-one transport and lifting solution for construction, logistics, and infrastructure projects.

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Truck Mounted Crane
SINOTRUK — HOWO TX Series
HOWO TX 6×4 371HP Truck with 10-Ton XCMG Crane

The HOWO TX 6×4 flatbed truck with XCMG GSQS250 10-ton telescopic boom crane combines SINOTRUK heavy-duty chassis engineering with XCMG’s precision lifting technology. Equipped with a 371 HP WD615.47 turbocharged engine, 10-forward-speed HW19710 gearbox, and a 360° rotating telescopic crane with 18.75 m working radius and 21 m lifting height. Ideal for construction material handling, equipment transport, and infrastructure projects in demanding job sites worldwide.

Basic Information

Chassis Brand / Model SINOTRUK HOWO / ZZ1257
Drive Configuration 6×4, Left Hand Drive
Cab HOWO TX-F, with AC + Single Sleeper Bed
Seating Driver + 1 Passenger
Emission Standard Euro II
Vehicle Type Flatbed Cargo Truck + Truck Mounted Crane
Crane Model XCMG GSQS250
Max Lifting Capacity 10 Tons

Engine & Powertrain

Engine Brand SINOTRUK
Engine Model WD615.47
Horsepower 371 HP
Engine Type 4-Stroke, 6-Cylinder In-line, Turbo-Charged & Intercooled
Displacement 9,726 mL
Fuel Type Diesel
Gearbox HW19710 — 10 Forward + 2 Reverse, Manual
Steering Hydraulic Power Steering, Left Hand Drive
Electrical System 24V, 2 × 12V Batteries

Dimensions & Weight

Overall Dimensions (L×W×H) 12,000 × 2,550 × 3,850 mm
Cargo Bed (L×W×H) 8,000 × 2,400 × 550 mm, Drop Sides
Wheelbase 5,800 + 1,350 mm
Tare Weight 15,500 kg
Payload 20 Tons
Front Axle Capacity 9,500 kg
Rear Axle Capacity 16,000 kg (Double Rear Axle)

Tires & Chassis

Tire Specification 12.00R20 Radial
Quantity 10 + 1 Spare
Cab Equipment FM Radio, Standard Tools, Fire Extinguisher
Cargo Bed Type Drop-Side Flatbed

XCMG GSQS250 Crane Specifications

Crane Model XCMG GSQS250
Max Lifting Capacity 10 Tons
Max Working Radius 18.75 m
Max Working Height 21 m
Slewing Angle 360° Continuous Rotation
Boom Type 2-Arm Telescopic
High-Altitude Operator Seat Yes
Landing Legs 4 Units — Front & Rear Hydraulic Outriggers

Why Choose This Truck-Mounted Crane

371 HP SINOTRUK Power

WD615.47 turbocharged & intercooled 6-cylinder diesel engine delivers robust power and torque for heavy-duty transport plus crane operation simultaneously.

All-in-One Transport + Lift

20-ton payload capacity on an 8 m drop-side flatbed combined with a 10-ton XCMG crane eliminates the need for separate transport and lifting equipment on site.

360° Full Rotation XCMG Crane

The GSQS250 telescopic boom slews a full 360° with 18.75 m horizontal reach and 21 m vertical lift — place loads precisely in any direction without repositioning the truck.

4-Point Hydraulic Stabilization

Front and rear hydraulic outrigger landing legs (4 units) provide a rock-solid lifting platform even on uneven terrain, ensuring safe crane operation at full capacity.

Proven HOWO Chassis Durability

ZZ1257 heavy-duty double-rear-axle 6×4 chassis with 12.00R20 radial tires provides excellent off-road mobility and load-bearing reliability in tough working environments.

Comfortable Operator Environment

TX-F cab with air conditioning, single sleeper berth, FM radio, and high-altitude crane operator seat — designed for long-haul transport and extended on-site lifting operations.

Ideal Applications

Construction Sites Transport and lift steel beams, concrete blocks, pipes, and prefab components directly on site
Infrastructure Projects Road, bridge, and railway work — self-load/unload heavy materials without auxiliary equipment
Equipment Delivery Deliver and place generators, transformers, compressors, or industrial machinery at customer sites
Oil & Gas / Mining Rugged 6×4 chassis handles off-road conditions for remote site logistics and lifting operations
Municipal & Utility Pole setting, transformer lifting, streetlight installation — a single vehicle replaces a crane + truck combo
