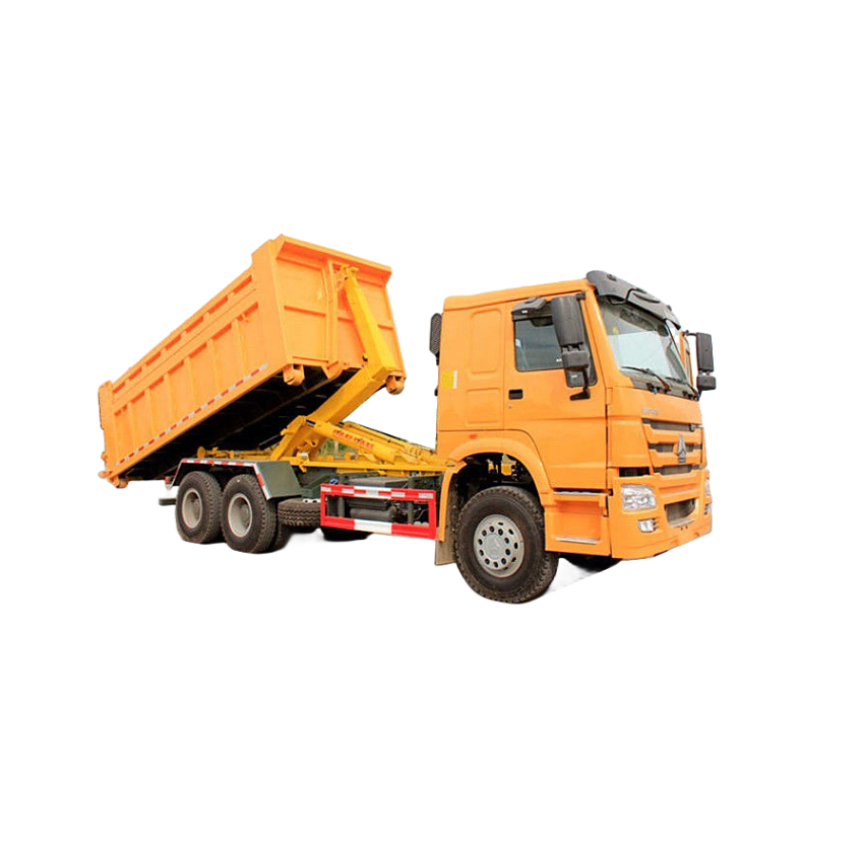

HOWO Hooklift Garbage Truck For Garbage Collection (10m³ – 12m³)

Name: HOWO Hooklift Garbage Truck For Garbage Collection (10m³ - 12m³)
SKU: SKU-262

The SINOTRUK HOWO Hooklift Garbage Truck For Garbage Collection (Model: ZZ1167K3817D1) is a highly versatile and efficient municipal sanitation vehicle. Featuring a heavy-duty hydraulic hook arm system and a detachable 10m³ to 12m³ Q235 carbon steel refuse container, it allows a single truck to operate with multiple garbage bins. Driven by a reliable 4x2 chassis and powerful multi-engine options (130HP-180HP), it dramatically minimizes downtime and optimizes urban waste logistics.

Truck & Special vehicles SINOTRUK

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Garbage Truck
SINOTRUK — HOWO 6×4 Series

HOWO Hooklift Garbage Truck For Garbage Collection

The HOWO Hooklift Garbage Truck For Garbage Collection is an innovative, high-efficiency municipal sanitation vehicle engineered for modern waste logistics. Built on a heavy-duty 6×4 chassis, this advanced truck utilizes a high-strength hydraulic hook arm mechanism designed to load, transport, and tip a detachable 10m³ to 12m³ refuse container. By allowing a single truck chassis to work seamlessly with multiple waste bins distributed across different collection points, it eliminates transit waiting times, reduces operational costs, and delivers unmatched efficiency for urban and community sanitation departments.

Basic Information & Dimensions

Brand & Core Model	SINOTRUK HOWO — ZZ3257N3847B (6x4Hooklift Series)
Driving Type	Left Hand Drive (LHD) Standard / Right Hand Drive (RHD) Optional
Overall Dimensions	7,950 × 2,490 × 3,150 mm
Wheelbase	3,800 mm
Wheel & Axle Track Base	Front track: 1,815, 2,041 mm / Rear track: 1,804, 1,860 mm
Curb Weight / Gross Weight	7,540 kg / 16,000 kg
Angles & Overhang	Approaching/Departure: 18° / 12° \| Overhang (Front/Rear): 1,260 / 2,890 mm
Tyre Specifications	10.00R20 high-load radial tyres \| Quantity: 6 + 1 Spare = 7 tyres

Hooklift Mechanism & Garbage Container

Detachable Container Volume	10 m³ – 12 m³ cargo container capacity
Container Construction	Premium Q235 carbon steel sheets (Side: 4mm / Floor: 5mm) with reinforced framework and ground rollers
Hooklift Lifting Structure	High-tensile alloy hydraulic hook arm assembly, dual main cylinders with locking mechanism for extreme transport security
Control System	In-cab electronic joystick remote control alongside external manual override levers
Loading & Unloading Cycle	≤ 35 seconds to pull up or drop down a fully-loaded garbage bin
Dumping Angle	≥ 48° for fast and complete self-tipping refuse discharge
Hydraulic System Pressure	16 MPa ~ 20 MPa operating pressure driven via engine-mounted PTO

Engine & Chassis Systems

Engine Models Offered	YN38CRD1 / CY4SK251 / YC4E140-56 / MC05.16-50 / MC05.18-50
Horsepower Output	130 HP to 180 HP options optimized to custom local market emission guidelines
Transmission Box	Heavy duty manual 5/6-speed manual synchronizer gearbox with PTO assembly
Suspension & Chassis	Reinforced heavy-duty multi-leaf springs (Front 9 / Rear 11+7) \| High-stiffness rigid parallel ladder frame
Braking Assemblies	Service Brake: dual-circuit compressed air brake \| Parking Brake: spring energy operating on rear wheels
Driver’s Cabin	HOWO ergonomic single-row or extended cabin with full climate control (A/C), power steering, clear dashboard diagnostics, and dynamic safety belts

Why Choose the HOWO Hooklift Garbage Truck

One-to-Many Multi-Bin Operation

Allows one truck chassis to service dozens of detached waste containers, reducing chassis idle time and multiplying municipal collection output while lowering overall fleet costs.

Heavy-Duty Hydraulic Power

Engineered with a high-tensile alloy hydraulic pull hook and rugged structural dual lift cylinders to safely complete an entire container loading loop in under 35 seconds.

Flexible Cab Controls

Features intuitive indoor electric remote controls allowing operators to finish hoisting and tipping safely inside the cabin, with backup manual levers for extreme environments.
