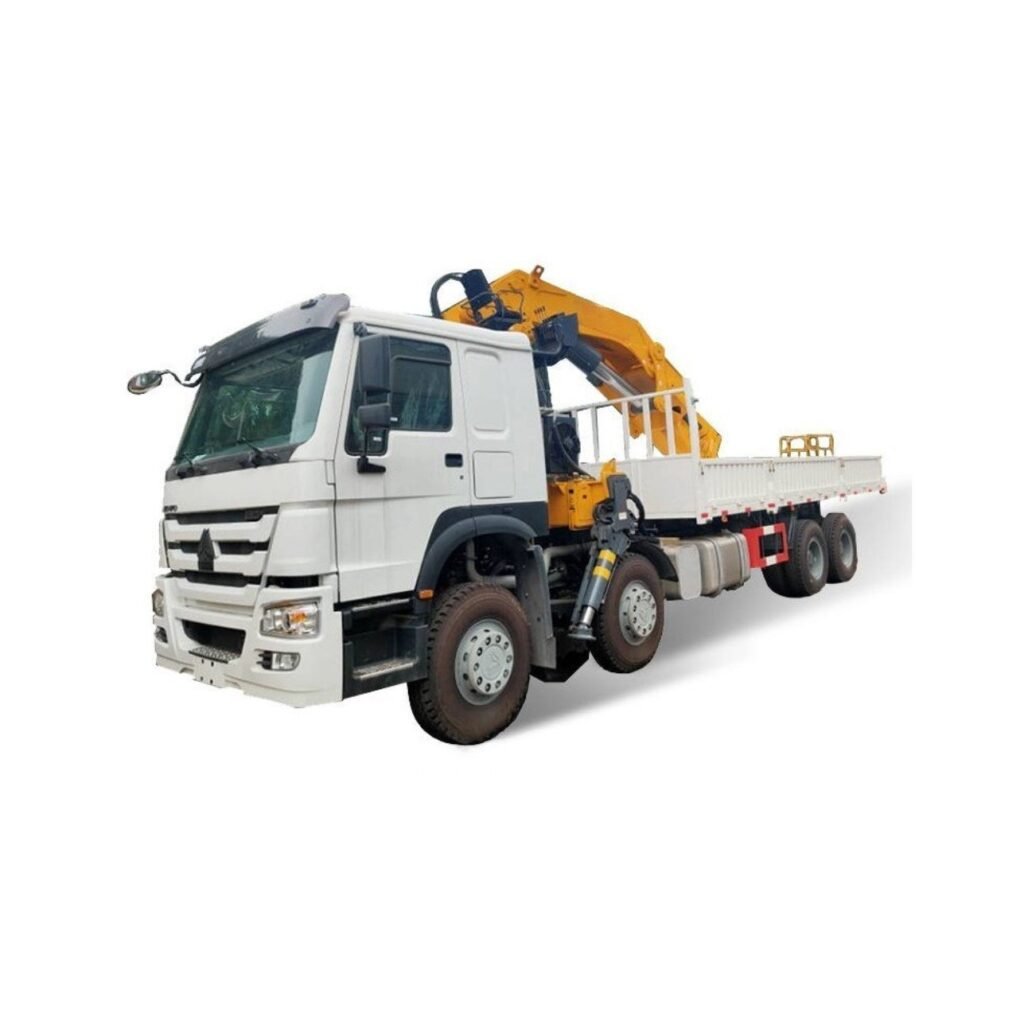

HOWO 16 Tons Truck Mounted Crane with XCMG SQ16ZK4Q

Name: HOWO 16 Tons Truck Mounted Crane with XCMG SQ16ZK4Q
SKU: SKU-238

HOWO 16 Tons Truck Mounted Crane represents an optimal, high-performance combination in heavy-duty logistics and infrastructure engineering. Built upon the ultra-rugged ZZ1317N4667W rigid chassis, it is powered by a high-torque 400HP WEICHAI WP12.400E21 diesel engine paired with an HW19710 10-speed manual gearbox. Outfitted with the premium XCMG SQ16ZK4Q knuckle boom crane, this lifting workhorse features an impressive 16,000 kg maximal lifting capacity, 360° full continuous rotation, an 8100mm drop-side cargo box, robust HF9/HC16 heavy axles, and a fully air-conditioned floating HW76 sleeper cabin to ensure total safety and control on any job site.

Truck & Special vehicles SINOTRUK

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Truck Mounted Crane
SINOTRUK HOWO & XCMG Combination

HOWO Heavy Duty 16 Tons Truck Mounted Crane

An optimal and powerful combination in the field of truck-mounted cranes, integrating the world-renowned high-strength HOWO heavy-duty rigid chassis with a premium XCMG 16-ton knuckle boom crane assembly. Engineered for complex cargo handling, industrial logistics, infrastructure installation, and heavy engineering lifting tasks under the most demanding job-site environments.

Crane Superstructure (XCMG SQ16ZK4Q)

Crane Brand & Model	XCMG SQ16ZK4Q Premium Heavy Series
Max Lifting Capacity	16,000 kg (16 Tons Payload Capacity)
Max Lifting Moment	40 T.M
Max Hydraulic Outreach	11.52 m
Slew System Specs	Slewing Angle: 360° Full Rotation \| Slewing Torque: 3.45 T.M
Stabilizer Spread	5,610 mm
Installation Dimensions	Fitting Space Required: 1,500 mm \| Width Folded: 2,458 mm
Hydraulic System	Max Operating Pressure: 31.5 Mpa \| Recommended Pump Capacity: 63 l/min
Cargo Body Cargo Size	8100 × 2450 × 600 mm (Heavy-duty Drop-side Cargo Box)
Crane Dead Weight	4,780 kg

Chassis, Weight & Dimensions

Chassis Model	ZZ1317N4667W Rigid Infrastructure Chassis
Vehicle Dimensions	Overall size (L × W × H): 12200 × 2550 × 3988 mm
Wheelbase Configuration	1800 + 4600 + 1350 mm
Approach / Departure Angle	19° / 14°
Gross Vehicle Weight (GVW)	31,000 kg
Curb Weight	18,800 kg

Engine Powertrain & Mechanical Components

Engine Brand & Model	WEICHAI WP12.400E21 (Heavy high-torque diesel series)
Engine Architecture	4-stroke direct injection, 6-cylinder in-line, water cooling, turbo-charging & inter-cooling
Engine Power Output	400 HP \| EURO II Emission Status
Gearbox Model	HW19710 Manual Transmission (10 forwards & 2 reverse gears)
Steering System	ZF8118 hydraulic steering assembly with integrated power assistance (LHD/RHD optional)
Front / Rear Axles Set	Front: HF9 series drum brake axle \| Rear: HC16 high loading capacity double reduction axle hub set
Tyres Specs	12.00R22.5 heavy radial tubeless tires, 12 pieces plus 1 full-sized spare tyre
Brakes Protection	Service brake: compressed air brake system \| Parking brake: spring energy compressed air operating on rear wheel sets \| Auxiliary brake: Engine exhaust brake valve closing mechanism

HW76 Professional Floating Cabin Setup

HW76 Extended Cabin Comfort Layout: Equipped with a single comfortable sleeper berth, integrated operational air conditioner system, and professional stereo radio unit. Features an adjustable steering column, hydraulically damped adjustable driver’s seat with high-absorption shock absorption, aerodynamic cab fairing, and side air deflector modules to minimize high-velocity wind drag.

Core Material Handling Benefits

Unmatched 16-Ton Knuckle Lifting

The integrated XCMG SQ16ZK4Q boom crane crane provides an enormous 40 T.M lifting moment with a full 360-degree rotating radius, speeding up complex heavy structural loadings.

400HP Weichai High-Torque Engine

Driven by the WEICHAI WP12.400E21 powertrain block, it delivers constant fluid hydraulic stability via PTO to ensure reliable performance on unpaved terrain.
