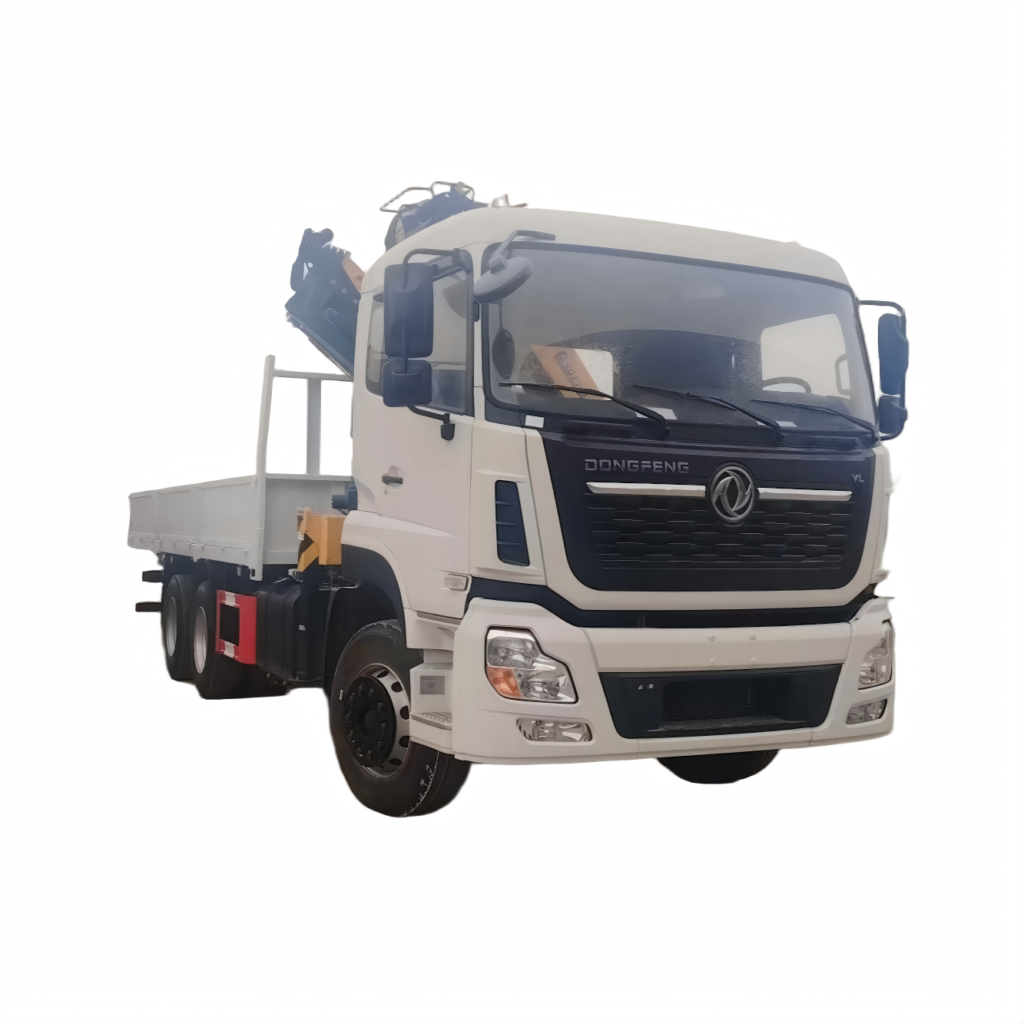

Dongfeng Euro3 375HP 6×4 Truck with XCMG 10T Knuckle Boom Crane

Name: Dongfeng Euro3 375HP 6x4 Truck with XCMG 10T Knuckle Boom Crane
SKU: SKU-423

Dongfeng 6x4 cargo truck (DFL1250 chassis) equipped with a rear-mounted XCMG GSQZ200.4 10-ton knuckle boom crane. Powered by a Dongfeng Cummins ISLe375 Euro 3 engine (375HP, 8.9L), matched with a Fast 12-speed gearbox. The XCMG crane delivers 10,000 kg lifting capacity, 12.75 m working radius, 14.7 m working height, and full 360° rotation — all controlled via wireless remote. Built on a heavy-duty 6x4 chassis with 20-ton payload capacity and drop-side cargo bed. Ideal for construction logistics, equipment handling, and infrastructure projects in Africa, the Middle East, and Southeast Asia.

Truck & Special vehicles

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Truck Mounted Crane
DONGFENG — DFL1250 Series

Dongfeng 6×4 Truck Mounted 10T XCMG Knuckle Boom Crane

This Dongfeng DFL1250 6×4 heavy-duty truck is factory-fitted with a rear-mounted XCMG GSQZ200.4 knuckle boom crane (折臂吊), delivering 10-ton lifting power with 360° rotation and wireless remote operation. Powered by a Cummins ISLe375 Euro 3 engine (375HP / 8.9L) and a Fast 12-speed manual gearbox, the vehicle combines highway transport capability with on-site crane loading — no separate lifting equipment needed. The drop-side cargo bed (6.5 m length) handles bulk cargo while the 5-arm folding crane loads and unloads at the job site. Built for tough conditions across Africa, the Middle East, and Southeast Asia. Factory-direct export with full QC before shipment.

Chassis & Cabin

Chassis Model	DFL1250 (Dongfeng)
Drive Configuration	6×4, Left Hand Drive
Cab Model	Dongfeng D310, with AC + 1 sleeper berth
Seating	Driver + 1 passenger
Standard Equipment	FM radio, tool kit, fire extinguisher
Steering	Hydraulic power steering (LHD)

Dimensions & Weight

Overall (L×W×H)	10200 × 2550 × 3900 mm
Cargo Bed (L×W×H)	6500 × 2450 × 550 mm — Drop-side type
Wheelbase	4350 + 1350 mm
Wheel Track (F/R)	2040 / 1830 mm
Tare Weight	14,500 kg
Payload	20 tons
Max Speed	~90 km/h

Engine & Powertrain

Engine Brand / Model	Dongfeng Cummins ISLe375 30
Horsepower	375 HP (276 kW)
Engine Type	4-stroke, 6-cylinder inline, turbocharged & intercooled
Displacement	8.9 L
Emission Standard	EURO III
Fuel Type	Diesel
Gearbox	Fast 12JSD180T — 12 forward + 2 reverse, manual
Electrical System	24 V — 2 × 12V batteries

Tires & Running Gear

Tire Specification	295/80R22.5
Quantity	10 + 1 spare

XCMG Knuckle Boom Crane — GSQZ200.4

Crane Model	XCMG GSQZ200.4
Max Lifting Capacity	10,000 kg (10 tons)
Max Working Radius	12.75 m
Max Working Height	14.7 m
Slewing Angle	360° full rotation
Boom Type	Knuckle boom — 5 folding arms
Oil Tank Capacity	160 L
High-Altitude Seat	Yes — operator seat at crane base
Front Outriggers	Included
Rear Outriggers	Included
Remote Control	Wireless — 1 unit included
