Dongfeng 4x2 135HP Truck with 4ton XCMG crane

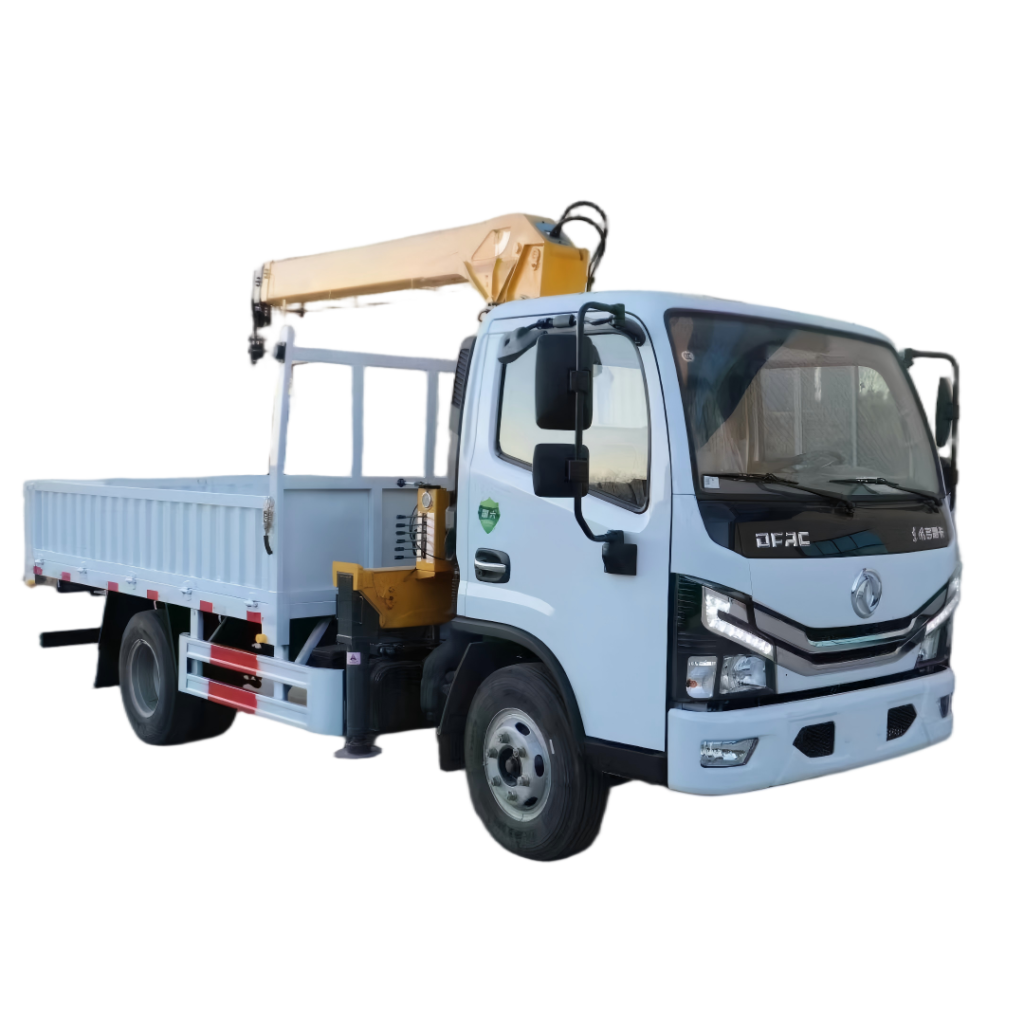

Dongfeng 4×2 135HP Truck with 4-Ton XCMG Crane

Name: Dongfeng 4×2 135HP Truck with 4-Ton XCMG Crane
SKU: SKU-519

Dongfeng 4x2 chassis truck powered by Yuchai 135HP diesel engine, paired with XCMG SQS100 4-ton telescopic crane (3 arms, 360° rotation, 8.1 m working radius). 6-ton cargo capacity with 4300 mm bed. Compact, versatile, and cost-effective mobile lifting solution for construction, municipal, and logistics applications. Available in LHD/RHD configurations with full OEM customization.

Truck & Special vehicles XCMG

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Crane Truck
DONGFENG — 4×2 Chassis

Dongfeng 4×2 135HP Truck with 4-Ton XCMG Crane

Compact yet powerful — this Dongfeng EQ1090 4×2 chassis pairs a 135 HP Yuchai diesel engine with the XCMG SQS100 4-ton telescopic boom crane. With a 6-ton cargo bed, 360° crane rotation and 8.1 m working radius, it delivers reliable mobile lifting for construction logistics, utility maintenance and material handling applications. Factory-direct pricing with full OEM customization available.

Basic Information

Truck Brand	DONGFENG
Chassis Model	EQ1090
Driving Type	4×2 · Left Hand Drive (RHD available)
Cab Type	Flat Head · Single Cab · With Air Conditioner
Overall Dimensions (L×W×H)	7,000 × 2,400 × 3,400 mm
Cargo Box (L×W×H)	4,300 × 2,050 × 550 mm
Cargo Capacity	6 Ton
Curb Weight	4,900 kg
Max Speed	90 km/h
Delivery Time	40 working days after deposit

Engine & Powertrain

Engine Model	YC4E135-33
Manufacturer	Guangxi Yuchai Machinery Co., Ltd
Rated Power	135 HP (100 kW)
Engine Capacity	4,257 mL
Engine Type	4-cylinder inline diesel · 4-stroke · Turbocharged & intercooled
Fuel Type	Diesel
Transmission	WLY 6TS55 · Manual · 6 Forward + 1 Reverse
Power Steering	Hydraulic power assisted

Tires & Chassis

Tire Size & Type	7.50R16 · Radial · 6 + 1 Spare
Wheel Tread (Front / Rear)	1,835 mm / 1,640 mm
Wheelbase	3,800 mm
Max Speed	90 km/h

XCMG SQS100 — 4-Ton Hydraulic Crane

Crane Model	XCMG SQS100
Max Lifting Capacity	4,000 kg (4 Ton)
Max Working Radius	8.1 m
Boom Type	3 Arms Telescopic · Knuckle Boom
Rotation Angle	360° Full Rotation
Hydraulic Oil Tank	45 L
Crane Net Weight	1,271 kg
Mounting Position	Between cab & cargo body · Chassis-integrated subframe

Why Choose This Dongfeng + XCMG Crane Truck

Compact 4×2 Footprint 7-meter overall length with 3.8 m wheelbase maneuvers easily in urban streets, job sites, and confined workspaces where larger trucks cannot go.	Yuchai 135 HP Proven Engine Turbocharged & intercooled 4.2 L diesel from Guangxi Yuchai — widely recognized for durability, low maintenance, and excellent parts availability worldwide.
Dual Function — Haul & Lift 6-ton cargo bed handles material transport while the 4-ton XCMG crane provides on-site self-loading/unloading. One truck, two jobs — reduce equipment fleet and labor costs.	Full 360° Crane Rotation Unlike rear-mounted cranes limited to rear-only operation, the SQS100 rotates a full 360° — lift from any side of the truck without repositioning the vehicle.
WLY 6-Speed Gearbox The 6TS55 manual transmission from WLY offers smooth shifting with PTO compatibility for crane hydraulic pump drive — a matched, proven drivetrain.	Low Operating Cost Yuchai engine + WLY transmission + 7.50R16 radial tires = minimal consumable costs. Widely available aftermarket parts keep total cost of ownership low in any region.

Ideal Applications

Industry	Typical Use
Construction & Infrastructure	On-site delivery and lifting of pipes, precast elements, steel beams, scaffolding, and building materials
Utility & Municipal Services	Lifting transformers, manhole covers, poles, streetlight fixtures, and water/sewer components during maintenance work
Logistics & Warehousing	Self-loading/unloading of palletized goods, machinery, generators, and heavy equipment at sites without fixed cranes
Agriculture & Rural Works	Moving irrigation equipment, water pumps, livestock feed, fertilizer bags, and farm machinery between fields
Equipment Rental	Delivery and pick-up of compact construction equipment (mini excavators, concrete mixers, generators, compressors)

OEM Customization Options

Option	Available Choices
Driving Position	LHD (standard) or RHD for left-hand traffic markets
Cargo Body	Flatbed · Dropside · Van box · Stake sides · Tool compartments
Crane Options	XCMG SQS100 (4T) standard · Upgrade to SQS125 (5T) or SQS80 (3.2T) available
Outriggers	Manual or hydraulic stabilizer legs · Front/rear configuration
Paint & Branding	Any RAL color · Custom decals & company logo application
