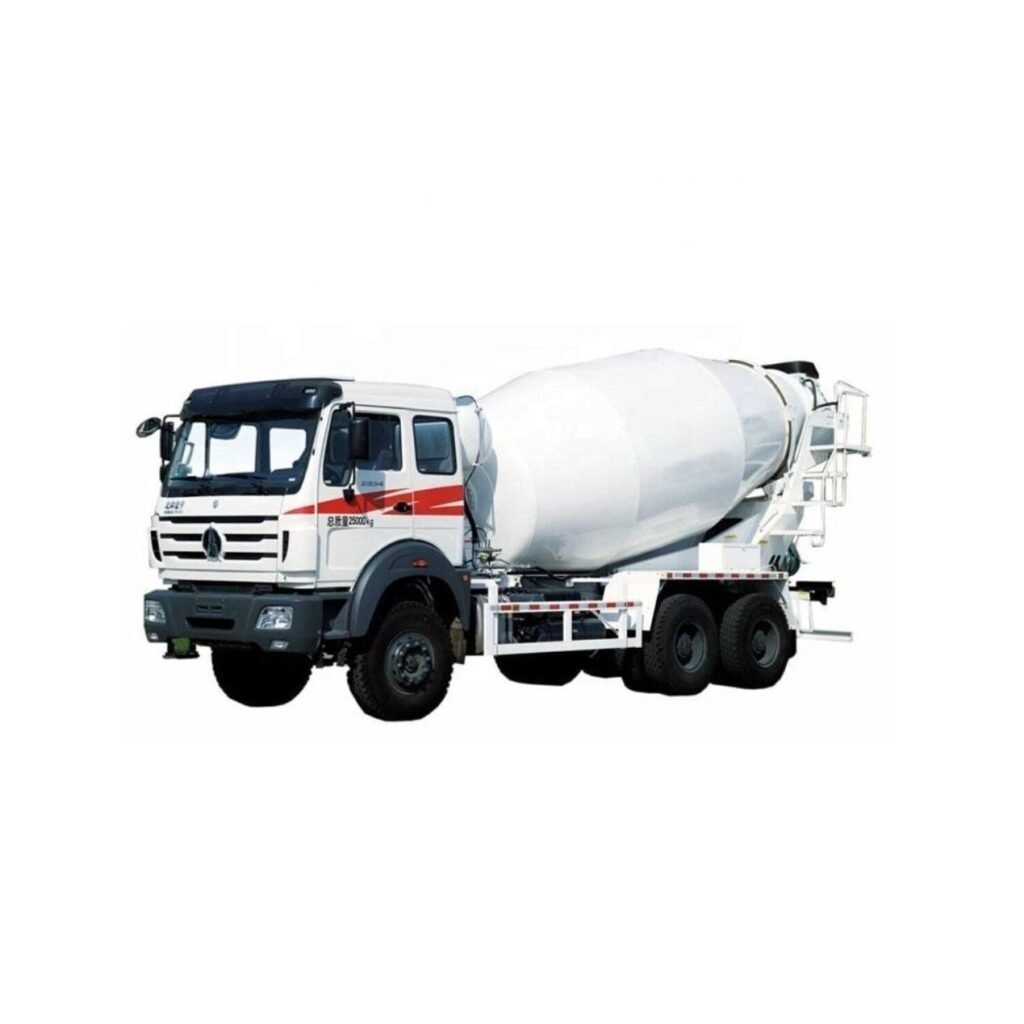

BEIBEN NORTH BENZ Concrete Mixer Truck 6X4 10CBM

BEIBEN 6×4 Concrete Mixer Truck 10CBM | 340HP Transit Mixer

Name: BEIBEN 6x4 Concrete Mixer Truck 10CBM | 340HP Transit Mixer
SKU: SKU-372

The BEIBEN 6×4 10CBM Concrete Mixer Truck (Model: 2529BY) is a heavy-duty transit mixer engineered for reliable ready-mix concrete delivery. Built on robust Mercedes-Benz chassis technology, it is powered by a high-torque WEICHAI WP10.340E32 diesel engine yielding 340hp at 2200rpm. The mixer drum offers a 10m³ effective mixing volume, supported by a world-class Eaton 54 hydraulic pump and motor system alongside a PMB6sp gearbox. Equipped with 12.00R20 radial tires, a TAS85 hydraulic booster steering system, and an NG80B long cabin with an inner sleeper bunk and A/C

Truck & Special vehicles

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Concrete Mixer Truck
NORTH BENZ — Heavy Engineering Platform

BEIBEN 6×4 10CBM Concrete Mixer Truck

As detailed in the technical specifications of image_eb1a42.png and image_eb1a27.png, the BEIBEN 6×4 10CBM Concrete Mixer Truck (Model: 2529BY) is a heavy-duty transit mixer meticulously engineered for tough construction environments. Combining the structural integrity of Mercedes-Benz axle heritage with a highly efficient Weichai engine and premium Eaton hydraulic components, this mixer truck guarantees uniform concrete transit, quick discharging speed, and low residual rates under harsh continuous-duty cycles.

Concrete Mixer Drum & Hydraulic System Specifications

Effective Mixing Volume	10 m³
Geometric Drum Volume	15.5 m³
Filling Ratio & Drum Gradient	64.50% \| 15° Gradient angle
Feeding / Discharging Speed	Feeding speed: ≥3 m³/min \| Discharging speed: ≥2 m³/min
Surplus Ration (Residual Rate)	<1% (Minimizes material waste)
Range of Concrete Slump	20 ~ 300 mm
Hydraulic Pump & Motor	Premium Eaton 54 Pump (ACA542337R) & Eaton 54 Motor (HHD542337R)
Mixer Gear Box	Heavy duty PMB6sp gear reduction box
Water Supply System	400L Capacity water tank, Air pressure type water supply

Engine Powertrain & Gearbox Specs

Engine Model	WEICHAI WP10.340E32
Engine Architecture	Water-cooled, 4 strokes, 6 cylinders in line, turbocharged, direct injection
Max Power Output	340 hp (250 kW) @ 2200 rpm
Max Torque	1350 Nm @ 1200-1600 rpm
Displacement & Stroke	9.726 L \| 126/130 mm
Emission Standard	Euro III
Transmission / Gearbox	9T-160 Mechanism \| Manual operated with synchronizer \| 9 forward gears + 1 reverse gear
Clutch Configuration	430 size, Single dry frictional disc, Hydraulic boosting assisted

Chassis, Steering & Benz Technology Axles

Front Axle	Mercedes-Benz Technology front steering axle, equipped with double-shoe pneumatic brakes
Middle & Rear Axles	Mercedes-Benz Technology double reduction driving axle, ductile casting casing with hub redactor, double-shoe pneumatic brakes
Suspension Layout	Front: Non-free standing leaf spring with telescopic shock absorber and stabilizer bar (10pcs) Rear: Non-free standing stabilization spring, balance suspension system (13pcs)
Steering System	TAS85 system, whole circulation in ball, hydraulic booster
Chassis Frame	Fish belly shape structural design, variable width, variable sections for maximum torsional resistance
Tyres Module	Heavy weight 12.00R20 Radial steel tires

Dimensions, Payload Capacity & Braking Performance

Overall Dimensions	9300 × 2500 × 3900 mm
Wheelbase	3800 + 1450 mm
Curb Weight / Loading Capacity	Curb Weight: 13,650 kg \| Payload Capacity: 11,220 kg
Angles & Gradeability	Approaching/Departure Angle: 26/20° \| Max climbing capability: 40%
Fuel Tank Capacity	300L fuel tank
Brake Architecture	Service Brake: Double circulation air brake system with automatic gap adjustment Assistant Brake: Engine exhaust brake Park Brake: Potential springs pressing on middle and rear wheels

NG80B Cabin Structure & Comfort Features

Cabin Model & Orientation	NG80B Long cabin with a single sleeper bunk (Available in LHD or RHD layouts); Can be tipped forwardly
Structural Build	Full steel skeleton structure, securely covered with double layer steel plates for ultimate collision protection
Interior Controls	High back with arm seat for driver, high back seat for co-driver; Outfitted with inner Air Conditioning (A/C) systems

Why Choose BEIBEN 10CBM Mixer for Your Fleet?

Eaton 54 Closed System

Leveraging original Eaton 54 pumps and hydraulic motors paired with robust PMB6sp gearboxes, this truck ensures stable mixing speeds, preventing any premature segregation of ready-mix concrete during long hauls.

Benz Dual-Reduction Core

The heavy-duty double reduction hub-reduction axles derived from Mercedes-Benz technical drawings offer supreme ground clearance and high mechanical torque transmission over muddy or unpaved site paths.

Fish-Belly Frame Stability

The specialized fish-belly variable section frame structure isolates heavy liquid drum torque movements from the driving line, optimizing chassis safety factors during steep 40% slope climbs.
