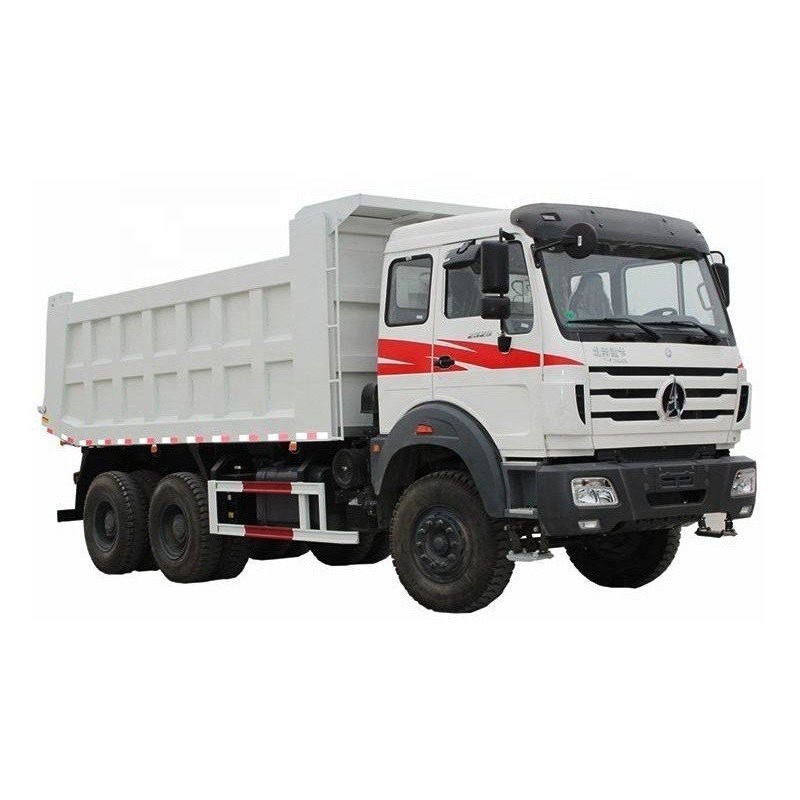

BEIBEN 2638 6×4 Dump Truck

Name: BEIBEN 2638 6x4 Dump Truck
SKU: SKU-366

The BEIBEN 2638 6×4 Dump Truck is a heavy-duty tipper engineered with robust Mercedes-Benz structural heritage for superior load-bearing capacity and extreme durability. Driven by a powerful Weichai WP10.340E32 engine outputting 340HP (with 360HP and 380HP options available), this vehicle easily handles a total mass of 25t and an impressive actual loading capacity up to 30,000kg. It features an NG80B full steel skeleton short cab, reliable Mercedes-technology HD7 middle axle, and HL7 rear axle with a 5.263 ratio. Equipped with a heavy-duty Q345 high carbon steel tipper body (Bottom 8mm, Side 6mm) measuring 5800×2350×1500mm, it is built to survive the harshest mining and construction operations.

Truck & Special vehicles

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Dump Truck / Tipper
BEIBEN — 2638 Heavy-Duty Engineering Platform

BEIBEN 2638 6×4 Dump Truck

As detailed in the technical data sheet image_eb2603.png, the BEIBEN 2638 6×4 Dump Truck is a premier heavy-duty hauling machinery inheriting world-renowned Mercedes-Benz chassis and axle technology structures. Specifically designed for severe mining sectors, aggregate transportation, and massive earthmoving infrastructure projects, the BEIBEN 2638 integrates an ultra-reinforced frame platform with a reliable Weichai high-torque powertrain. This ensures maximal operational up-time and safe, cost-efficient heavy-payload transport under unstable topography conditions.

Basic Information & Payload Capacities

Brand & Core Model	BEIBEN — 2638 Series
Condition & Status	100% Brand New Model
Drive Model Variants	6×4 (Standard Baseline) \| 6×6 and 8×4 variants customizable upon request
Total Mass (GVW)	25t
Actual Loading Weight Capacity	30,000 kg (30 Tons payload-optimized chassis structural integrity)
Available Body Color Configurations	Yellow, White, Green (custom engineering fleet branding finishes available)

Engine Powertrain & Clutch Specifications

Engine Model	WEICHAI WP10.340E32 — 6 cylinders straight in-line, water-cooled, four strokes, turbocharged intercooler
Power Core Selections	340hp (250Kw @ 2200rpm baseline detailed in image_eb2603.png) \| 360hp and 380hp engine selections available
Emission Standard	Euro 2 Emission level status
Clutch Configuration	Φ430 Heavy Diaphragm Spring setup with integrated Hydraulic Boosting control lines

Chassis, Mercedes-Benz Tech Axles & Running Gear

Middle Axle Load Spec	Mercedes technology HD7 / 016DGS-13 axle casing \| Speed ratio profile: 5.263
Rear Axle Load Spec	Mercedes technology HL7 / 015DS-13 hub reduction gear axle casing \| Speed ratio profile: 5.263
Wheelbase	3800 + 1450 mm
Overhang (Front / Rear)	1410 mm / 1687 mm
Overall Dump Truck Dimensions	8825 × 2550 × 3430 mm
Tyre Style & Sizes	12.00R20 Specialized Steel-Wire Construction Rib Radial Tires
Total Tyre Number Set	10 + 1 spare tire (Full-sized heavy construction backup matching tyre set included)

Tipper Box Body & Structural Reinforcements

Cargo Body Material	Q345 High Carbon Steel (High yield point anti-wear, structural resistance under high shock stress loading)
Dumper Box Sheet Thickness	Floor/Bottom plate: 8 mm \| Side walls plate: 6 mm
Inner Dumper Box Dimensions	5800 × 2350 × 1500 mm (Optimized profile center of gravity layout)

Cabin Architecture & Driver Safety Safety

The infrastructure of the operator cab is detailed below to ensure structural operator durability during harsh structural failure risks:

Cabin Structural Layout	NG80B Series specialized short engineering cabin layout without sleeper bunk systems.
Skeleton Components	Full heavy-duty high-tensile steel skeleton frame structure, securely wrapped and reinforced with protective double layer steel outer plates.
Maintenance Accessibility	Entire cockpit structure can be seamlessly tipped forward mechanically to ensure instant engine maintenance workspace access path loops.

Why Choose the BEIBEN 2638 Dump Truck

Benz structural Heritage

Built upon authentic Mercedes-Benz design philosophies, the specialized HD7 middle and HL7 hub reduction axle sets provide an ultimate load-carrying baseline that resists structural fractures under intense terrain loads.

Heavy-Duty Box Profile

Featuring an extra-thick bottom plate of 8mm and side walls of 6mm high carbon Q345 industrial grade steel, the tipper body is perfectly optimized for severe quarry mining rock drop forces.

Double-Layer Cab Protection

The NG80B steel skeleton cockpit wrap utilizes full double-layer defensive plating architecture to shield operators against dangerous construction site debris or side impact collisions.
