5 ton XCMG Wheel Loader ZL50GN

5 ton XCMG Wheel Loader ZL50GN

The XCMG ZL50GN is a heavy-duty 5-ton wheel loader designed for efficiency and durability. Equipped with a 220HP engine and advanced hydraulics, it is the top choice for tough environment

Wheel Loader XCMG

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details


Wheel Loader
XCMG — ZL50GN Series

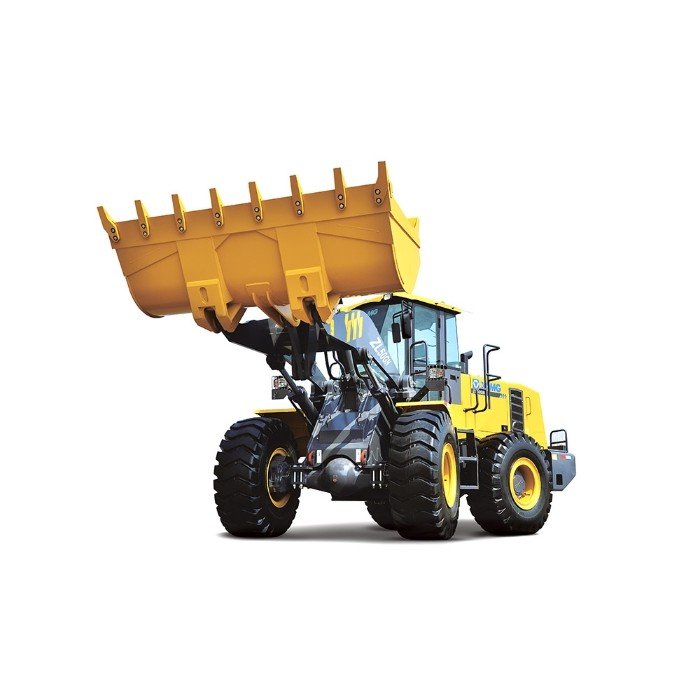

XCMG ZL50GN Wheel Loader

The XCMG ZL50GN is a global benchmark in the 5-ton wheel loader market, renowned for its exceptional power, reliability, and versatility. Engineered for high-intensity environments such as mining, heavy construction, and material handling, the ZL50GN combines a reinforced structure with a high-efficiency Weichai powertrain to deliver maximum productivity at the lowest operational cost.

Basic Information

Brand & Model XCMG — ZL50GN
Rated Load 5,000 kg (5 Tons)
Bucket Capacity 2.5 – 4.5 m³ (configurable)
Operating Weight 17,500 ± 300 kg
Overall Dimensions (L × W × H) 8,225 × 3,016 × 3,515 mm
Wheelbase 3,300 mm
Tread 2,250 mm
Tyre Size 23.5-25-16PR

Engine & Powertrain

Engine Model Weichai WD10G220E21 — 6-cylinder in-line, water-cooled, 4-stroke diesel
Rated Power 162 kW (220 HP)
Fuel Type Diesel
Transmission Countershaft Power Shift
Travel Speed — I-Gear (F / R) 13 / 17 km/h
Travel Speed — II-Gear (F) 41 km/h

Performance & Hydraulics

Max Breakout Force 175 ± 5 kN
Max Tractive Force 160 ± 5 kN
Dump Clearance (Max Lift) 3,100 – 3,780 mm
Reach at Max Lift 1,100 – 1,220 mm
Hydraulic Cycle Time — Raise ≤ 6 s
Total Hydraulic Cycle Time ≤ 10.5 s
Gradeability 30°
Articulation Angle 38°
Min Turning Radius (Over Tyres) 5,925 ± 50 mm

Why Choose the XCMG ZL50GN

Durable Reinforced Structure

Reinforced front and rear frames with heavy-duty axles allow the ZL50GN to thrive in rocky mining and tough earthmoving conditions.
Advanced Hydraulics

Load-sensing hydraulic system provides precise joystick control, ensuring smooth lifting and fast cycle times for high efficiency.
Operator-Centric Design

Spacious A/C cab with low noise and vibration levels creates a comfortable working environment for extended shifts.

Interested in the XCMG ZL50GN Wheel Loader?

Factory-direct pricing, pre-shipment QC, worldwide DDP delivery.

Send Inquiry Now WhatsApp +86 178 6053 9508

Related Products

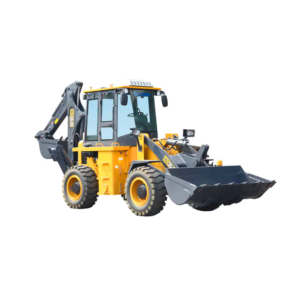

XCMG Brand WZ30-25 small backhoe loader

XCMG WZ30-25 Backhoe Loader | 4×4 Wheel Drive

XCMG WZ30-25 backhoe loader features Yuchai 73.5kW engine, 2.5T rated working load, and 4×4 wheel drive. 1.0m³ loader bucket and 0.3m³ backhoe bucket for versatile earthmoving applications.

SDLG Backhoe Loader B877F

SDLG Backhoe Loader B877F for Sale — 1 m³ Loader + 0.18 m³ Digger

The SDLG B877F is an 8-tonne backhoe loader combining a 1 m³ front loading bucket with a 0.18 m³ rear digging bucket. Powered by a 70 kW Yuchai YC4A105Z-T20 diesel engine, the B877F offers two transmission options — the ZF…

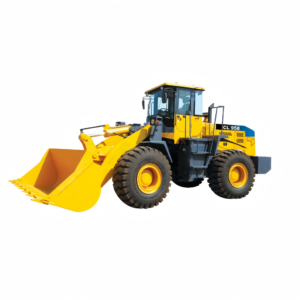

Chinese Wheel Loaders for Sale — 1T to 6T
