4 Axle Fuel Tank Semi Trailer — TITAN 45000L Carbon Steel

Name: 4 Axle Fuel Tank Semi Trailer — TITAN 45000L Carbon Steel
SKU: SKU-535

4-axle fuel tank semi trailer — 45,000L carbon steel, WABCO braking, airbag suspension, explosion-proof safety devices. Ideal for long-haul fuel, petrol & oil transport.

Trailer

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Fuel Tank Trailer
TITAN — 4 Axle Semi Trailer Series

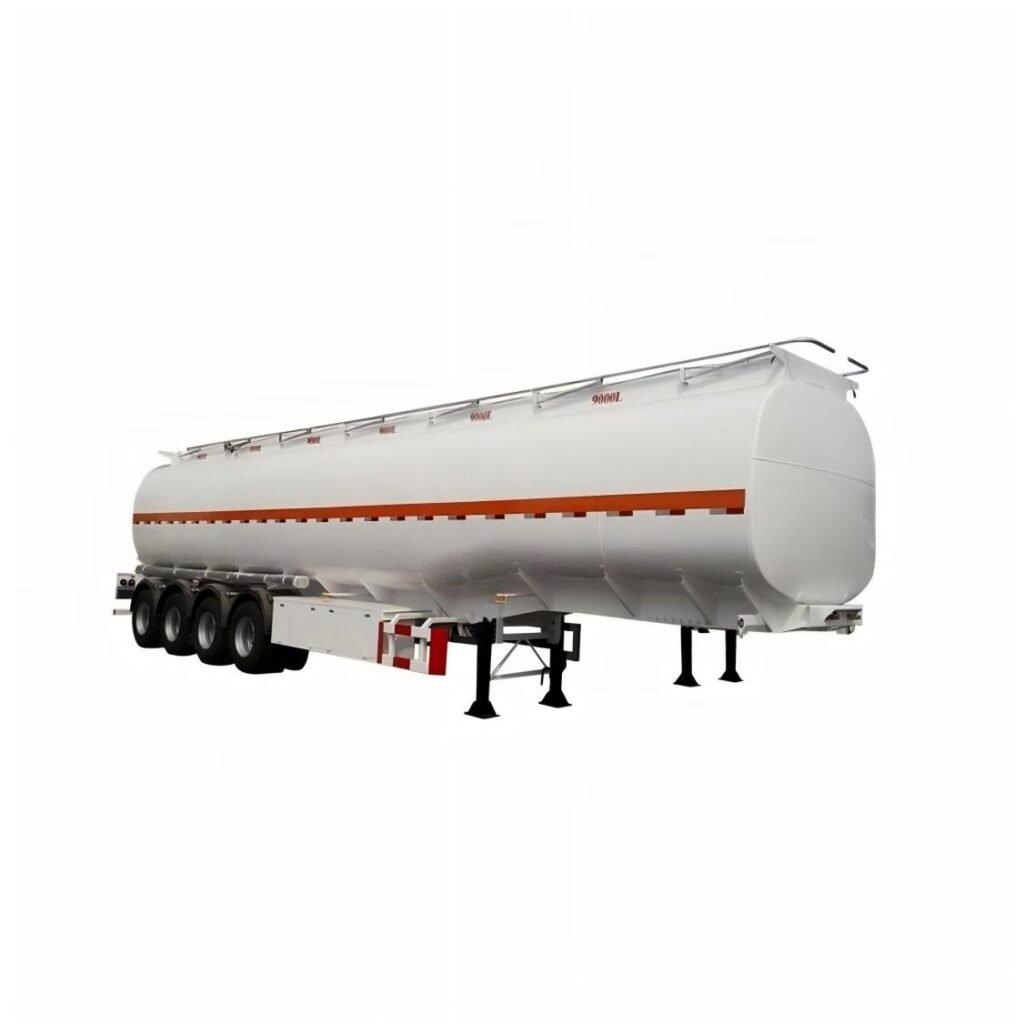

4 Axle Fuel Tank Semi Trailer

TITAN 4-axle fuel tank semi trailer engineered for safe, efficient long-haul transport of fuel, petrol, and oil. Features automatic longitudinal welding, explosion-proof manhole cover, emergency shut-off valve, WABCO braking system, JOST landing gear, and airbag suspension. Water-filled leak testing ensures zero-leak delivery. Advanced polyurethane paint system with 5+ year exterior durability. Customizable volume and configuration to match your fleet requirements.

4 Axles

Heavy-Duty Configuration

45,000 L

Tank Volume (Estimated)

12,500 mm

Overall Length

WABCO

Braking System

16 Units

Tire Configuration

Basic Information

Trailer Brand	ARCHERMACH
Trailer Type	4 Axle Fuel Tank Semi Trailer
Overall Dimensions (L×W×H)	12,500 × 2,500 × 3,900 mm
Transport Medium	Fuel, Petrol, Oil
Tank Material	Carbon Steel (Stainless Steel / Aluminum Alloy optional)
King Pin	90# (JOST Brand optional)

Tank Body & Welding Technology

Welding Process	Longitudinal automatic welding by advanced large-scale special welding machine
Construction	Waved board design — reduces liquid surge impact on tank body during transport
Leak Testing	Water-filled test equipment — full tank pressurization test ensures high sealing & zero oil leakage
Manhole Cover	Explosion-proof large cover — enhanced safety during loading/unloading & emergency scenarios
Emergency Shut-off Valve	Equipped at tank bottom outlet — immediate fuel cut-off in case of accident or hose rupture
Discharging Pipe	2 pieces, 6 m each (total 12 m)
Paint System	Advanced polyurethane paint system — anti-corrosion, aesthetic appearance, 5+ year exterior durability

Chassis & Running Gear

Axles	4 Axles — FPWA / BPW / TITAN brand optional
Suspension	Airbag Suspension (Mechanical optional) — smoother ride, reduced stress on tank & cargo
Tires	16 Units — 12R22.5 / 315/80R22.5 / 12.00R20 (brand selectable)
King Pin	90# — JOST 2.0″ or 3.5″ bolted / welded available
Landing Gear	JOST Brand — D200T double-speed, 28-ton heavy-duty
Main Beam	Q345B high-tensile steel, welded I-beam construction
Component Quality	Famous brand parts throughout — lowers maintenance cost & extends service life

Brake & Electrical System

Brake System	WABCO — RE 6 relay valve, dual-circuit air brake with spring brake chambers
ABS	Optional — WABCO / HALDEX electronic ABS for enhanced road safety
Electrical System	24V — full LED light set, 7-pin receptacle (7-wire harness)
Lighting	LED side markers, tail lights, turn signals, reverse lights — export-grade brightness & durability
Painting Process	Complete chassis sandblasting → 1 coat anti-corrosive primer → 2 coats polyurethane top paint
Color	Custom colors available upon request

Key Advantages

1
Explosion-Proof Safety

Explosion-proof manhole cover + emergency shut-off valve at bottom outlet. Full compliance with fuel transport safety regulations.

2
Longitudinal Auto-Welding

Advanced large-scale automatic welding machine produces uniform, high-strength longitudinal seams that extend tanker service life.

3
Zero-Leak Assurance

Every tank undergoes water-filled pressure testing before delivery. Guaranteed high sealing performance — no oil leakage, ever.

4
Waved Baffle Board

Internal waved board design significantly reduces liquid surge impact on the tank body during braking, cornering, and acceleration.

5
5+ Year Paint Durability

Sandblasting + polyurethane paint system delivers superior corrosion resistance and aesthetic appearance that lasts beyond 5 years.

6
Famous Brand Components

JOST landing gear, WABCO brakes, LED lights — all premium components for lower TCO, easier maintenance & long service life.

Why Choose This Fuel Tank Trailer

Superior Weld Integrity

Longitudinal automatic welding on a purpose-built machine produces consistent, high-integrity seams that conventional hand welding cannot match. Fewer weld joints = fewer potential failure points.

Proven Export Quality

Equipped with WABCO valve, LED lights, 24V system, and 7-pin receptacle — fully compliant with international road transport standards across Africa, Middle East, and Southeast Asia.

Airbag Smooth Transport

Airbag suspension absorbs road vibration, protects the tank structure, and reduces cargo sloshing — safer for sensitive fuel loads over long distances.

4-Axle Heavy Payload

Four axles distribute weight evenly for superior road compliance and legal axle-load limits. Ideal for high-volume fuel distribution with maximized payload capacity.

Full OEM Customization

Volume, compartment layout, tank material (carbon steel / stainless steel / aluminum alloy), brand of axles, tires, and suspension — all configurable to your fleet spec.

Ideal Applications

Application	Cargo	Recommend Tank
Petrol Station Supply	Petrol, Gasoline	Carbon Steel (5–6 mm)
Industrial Fuel Delivery	Diesel, Kerosene	Carbon Steel (5 mm)
Aviation Fuel Supply	Jet A-1, AVGAS	Aluminum Alloy
Lubricant / Oil Transport	Engine Oil, Lubricants	Carbon Steel (heated)
Long-Haul Fleet Logistics	Multi-fuel mixed delivery	Multi-compartment with individual discharge

OEM Customization Options

Tank Volume	25,000 L / 30,000 L / 35,000 L / 40,000 L / 45,000 L / 50,000 L / 55,000 L
Tank Material	Carbon Steel (Q235) / Stainless Steel / Aluminum Alloy
Compartment Layout	Single / Multi-compartment with independent discharge systems
Suspension	Airbag (BPW / TITAN brand) / Mechanical / Bogie
Axle Brand	FUWA 13T/16T / BPW 12T/14T / TITAN / Hua Jing
Tire Brand	Double Coin / Triangle / Hankook / Bridgestone / Michelin
ABS	WABCO / HALDEX 4S/2M or 4S/3M electronic ABS
Color / Branding	Custom colors + logo/decals with your company branding
