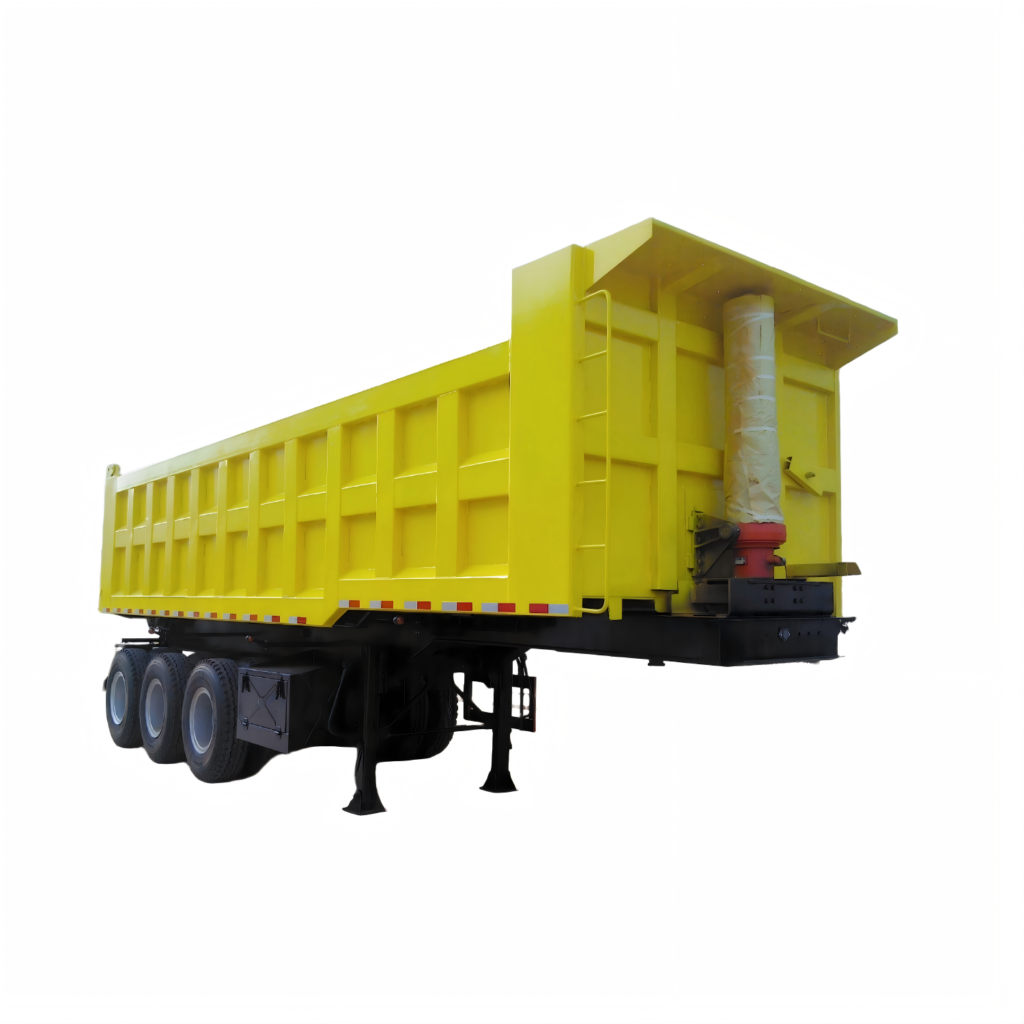

3 Axle Dump Semi Trailer — 40 Ton / 21.5 m³

Name: 3 Axle Dump Semi Trailer — 40 Ton / 21.5 m³
SKU: SKU-528

Built for mining, construction, and bulk material transport, this 3-axle dump semi-trailer delivers 40-ton payload capacity with Q345 high-tensile steel construction and a reliable HYVA hydraulic tipping system.

Trailer

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Dump Semi-Trailer
3 Axle — 40 Ton Payload

3 Axle Dump Semi Trailer — 21.5 m³

Heavy-duty 3-axle rear-dump semi-trailer engineered for bulk material transport in mining, quarrying, and large-scale construction projects. With a 21.5 m³ box volume, 40-ton payload capacity, Q345 high-tensile steel body, and a HYVA-brand hydraulic tipping system, this trailer delivers reliable performance under the toughest conditions. Compatible with 6×4 tractor heads — available on HOWO, SHACMAN, FAW, or any major brand chassis. Full OEM customization supported.

40,000 kg

Payload

21.5 m³

Box Volume

3 × 16T

Axles (FUWA)

HYVA

Hydraulic System

Q345

Steel Grade

Basic Information

Trailer Model	ST9407TZXE
Trailer Type	3-Axle Rear Dump Semi-Trailer
Compatible Tractor	6×4 Tractor Head (HOWO ZZ4257S3241V or equivalent)
Fifth Wheel	90# — Saddle Height 1,400 mm
Overall Dimensions (L×W×H)	9,250 × 2,550 × 3,560 mm
Tare Weight	~12,600 kg
Payload Capacity	40,000 kg
Wheelbase	3,780 + 1,310 + 1,310 mm
Color	Optional — custom colors available on request

Dump Box

Box Shape	Rectangle — open top, rear dump
Internal Dimensions (L×W×H)	8,500 × 2,300 × 1,100 mm
Inside Volume	21.5 m³
Box Material	Q345 High-Tensile Carbon Steel
Floor Thickness	Industry standard (upgradeable on request)
Side Wall Thickness	Industry standard (upgradeable on request)
Side Wall Structure	Reinforced ribbed design
Bottom Longitudinal Beam	Heavy-duty structural reinforcement
Tipping Mechanism	Double-shaft integrated tipping hinge

Hydraulic Tipping System

Hydraulic Brand	HYVA (Netherlands)
Hydraulic Cylinder Model	HYVA 196
Hydraulic Connection	Quick-connect coupling
PTO Requirement	Tractor head requires PTO (Power Take-Off) to drive hydraulic pump

Chassis & Running Gear

Main Beam	500 mm height — 16/6/6/16 mm section (Q345 steel)
Beam Reinforcement	Reinforcing plate girders
King Pin	3.5″ (90#) — bolt-in type
Suspension	Mechanical leaf-spring suspension
Leaf Spring	11-leaf packs — heavy-duty overseas specification
Axles	3 × 16T FUWA
Landing Gear	T30 — double-speed quick-lift
Spare Wheel Carrier	2 units (main beam / middle position)

Braking System & Tires

Tires	12.00R20 18PR × 12
Rims	8.5-20 × 12
Relay Valve	China brand
Brake Cylinder	Dual-chamber — spring brake
Brake System	Dual-circuit pneumatic — service brake + emergency/parking brake

Accessories & Safety Equipment

Lighting	Full LED lighting system with 2 protective guards
Reflective Markings	Vehicle identification & reflective strips — sprayed to specification
Tool Box	1 × 500 mm toolbox, securely mounted
On-Board Tools	Tire spanner, socket sleeve, cranking bar — packed inside toolbox

Why Choose This Dump Semi-Trailer

Q345 High-Tensile Steel Box

Superior strength-to-weight ratio versus standard Q235. The box withstands heavy rock, ore, and demolition debris without deformation.

HYVA Hydraulic System

Genuine HYVA (Netherlands) cylinder and hydraulic kit — industry gold standard for dump applications. Fast, reliable tipping with quick-connect coupling.

FUWA 16T Axles × 3

Three FUWA 16-tonne axles deliver a combined 48-tonne axle capacity, comfortably handling the 40-tonne payload with reserve margin for rough terrain.

Integrated Double-Shaft Hinge

The box tilts on an integrated double-shaft hinge — distributes load evenly during tipping, reduces stress on the chassis, and improves stability on uneven ground.

21.5 m³ Rectangle Box

8.5 × 2.3 × 1.1m internal — optimized for sand, gravel, coal, ore, and demolition waste. Rectangle shape maximizes load volume for every trip.

Full OEM Customization

Box dimensions, material thickness, axle brand (BPW optional), suspension type, tire brand, color, and accessories — all customizable to your market requirements.

Ideal Applications

Mining & Quarrying	Transport ore, crushed stone, and overburden from pit to processing area
Construction Projects	Haul sand, gravel, crushed aggregate, and excavated soil on large-scale sites
Demolition & Waste	Remove demolition debris, construction waste, and scrap materials
Coal & Bulk Materials	Bulk transport of coal, coke, grain, fertilizers, and other granular cargo
Infrastructure & Road Work	Supply asphalt, road base, and fill material to highway and infrastructure projects
Long-Haul Bulk Logistics	Medium-to-long-distance bulk material delivery with high productivity per trip

OEM Customization Options

Axle Brand	FUWA / BPW / Hua Jing — 13T or 16T per axle
Suspension	Mechanical / Air suspension (BPW or domestic brand)
Tire Brand	Double Happiness / Triangle / Linglong / Aeolus / other brand
Tire Size	12.00R20 / 12R22.5 / 315/80R22.5
Box Volume	20 / 25 / 30 / 35 m³ — custom internal dimensions
Hydraulic Brand	HYVA / China domestic (Haizhou, etc.)
ABS	Optional — WABCO or domestic
Color & Branding	Custom paint color and OEM logo/decal available
