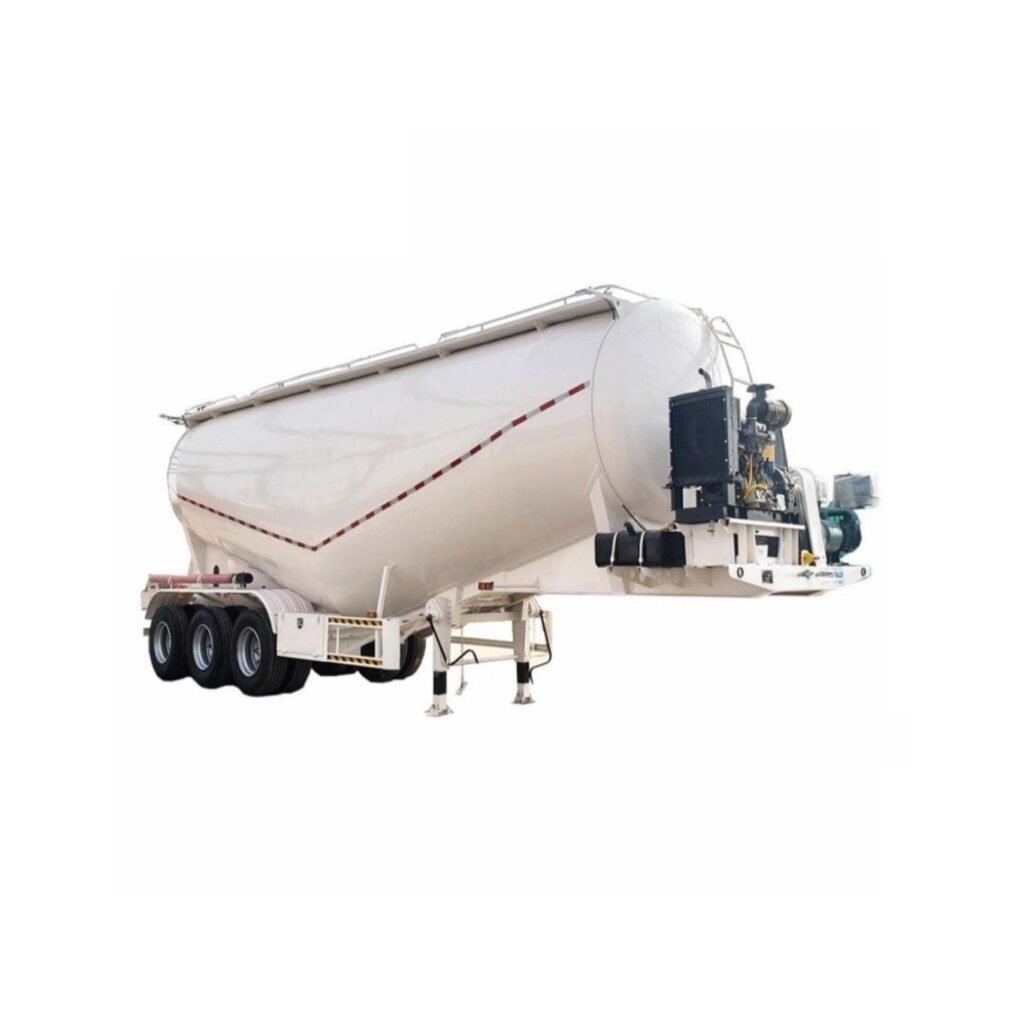

3 Axle Bulk Cement Tank Trailer | 30–68 m³ Powder Tanker

Name: 3 Axle Bulk Cement Tank Trailer | 30–68 m³ Powder Tanker
SKU: SKU-522

Heavy-duty 3-axle bulk cement/powder tanker trailer with 30–68 m³ capacity, loading rate >98% and discharge speed >1.5 t/min. Available in V-shape or multi-silo design, carbon steel/stainless steel/aluminum alloy. Supports OEM customization.

Trailer

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Semi Trailer
Bulk Powder Transport Series

3 Axle Bulk Cement Tank Trailer

Engineered for high-efficiency pneumatic discharge of cement, fly ash, lime, and other dry bulk powders. Built from high-tensile Q235 carbon steel with automatic Submerged-Arc welding, our bulk cement trailers deliver a loading rate above 98%, residual rate below 0.2%, and an unloading speed exceeding 1.5 t/min — saving fuel and maximizing every haul. Available in single-silo V-shape or multi-silo (2/3 compartment) layouts with volumes from 30 to 68 m³. Full OEM customization supported.

Key Performance Highlights

≥98%

Loading Rate (Fully Filling)

<0.2%

Residual Rate (Thorough Discharge)

≥25 m

Delivery Height (Silo Compatible)

>1.5 t/min

Unloading Speed (Fuel-Saving)

Basic Information

Trailer Type	3 Axle Bulk Cement / Powder Tank Semi-Trailer
Tank Shape	Optional — Single Silo (V-type), Two-Silo or Three-Silo Design (V / W shape)
Tank Material Options	Carbon Steel (standard) · Stainless Steel · Aluminum Alloy
Volume Range	25 / 30 / 35 / 39 / 40 / 55 / 65 m³ — custom volumes available
Overall Dimensions (L×W×H)	12,000 × 2,490 × 3,990 mm (exact design subject to final configuration)
Tare Weight	Approx. 7,500 – 15,000 kg (varies by volume and material)
Welding Process	Automatic Submerged-Arc Welding (high-tensile carbon steel)

Tank Body Specification

Tank Body Material	5 mm or 6 mm Q235 Carbon Steel (standard)
End Plate	5 mm or 6 mm Q235 Carbon Steel
Manhole Cover	Carbon Steel, Ø500 mm
Discharging Valve	3-inch or 4-inch butterfly valve
Discharging Pipe	Standard discharging pipeline
CatWalk	Included — standard or special design
Diesel Engine (Air Compressor)	Weichai, Tianhe 4100 / 4102 or other brands (optional)
Air Compressor	Bohai 10 m³/min or 12 m³/min, or other brands

Chassis Specification

Main Beams	Welding Design — Q345 High-Tensile Carbon Steel
Axles	3 Axles — 12 T / 13 T / 16 T capacity; BPW / FUWA / Hua Jing brand optional
Suspension	Mechanical Leaf Spring · German / American Type · Air Suspension (optional)
Leaf Spring	90 mm × 13 mm × 10 layers or 100 mm × 12 mm × 12 layers
King Pin	Jost 2.00-inch or 3.5-inch bolt-in kingpin
Landing Gear	Jost D200T (28 T capacity) or equivalent China brand
Rim Size	9.00-22.5 / 8.00-20 / 8.5-20 (China brand)
Tyre Options	12R22.5 · 315/80R22.5 · 11.00R20 · 12.00R20 — brand selectable
Pneumatic Braking	WABCO RE 6 Relay Valve · T30/30+30 Spring Brake Chamber · 45 L Air Tanks
ABS	Optional
Accessories	1× Standard Toolbox

Surface Treatment & Painting

Preparation	Complete chassis sandblasting to remove rust and mill scale
Primer Coat	1 coat anticorrosive primer
Finish Coat	2 coats final paint — color customizable

Key Advantages

⚡ High-Efficiency Discharge

Discharge speed >1.5 t/min, delivery height ≥25 m — compatible with most silo facilities worldwide. Saves fuel and reduces turnaround time.

🔧 Submerged-Arc Welding

Automatic SAW process delivers superior weld penetration and consistent bead quality, far exceeding manual welding in strength and fatigue resistance.

📐 Multi-Silo Flexibility

Single-silo V-type or two/three-silo designs available. Carry multiple powder materials in one trip, maximizing payload versatility.

🏗️ Material Choice

Standard Q235 carbon steel, stainless steel, or lightweight aluminum alloy — match your cargo, corrosion requirements, and weight limits.

🛡️ WABCO Brake System

WABCO RE 6 relay valve with spring brake chambers and 45 L air tanks. Optional ABS for markets requiring advanced braking standards.

🔩 Premium Axle Brands

BPW, FUWA, or Hua Jing axles in 12/13/16 T ratings. Jost kingpin and landing gear for reliable coupling and long service life.

Ideal Applications

Cement & Building Materials	Portland cement, slag cement, blended cement — plant to silo or ready-mix station
Industrial Powder	Fly ash, lime, gypsum powder, dry mortar, barite powder
Chemical & Mineral	Soda ash, titanium dioxide, alumina, calcium carbonate
Food Grade (SS / Aluminum)	Flour, starch, sugar, salt, milk powder (stainless steel or aluminum alloy tank)
Infrastructure Projects	Highway, bridge, and infrastructure cement supply chains

OEM Customization Options

Volume	25 / 30 / 35 / 39 / 40 / 55 / 65 m³ or non-standard volumes
Tank Material	Carbon steel / Stainless steel / Aluminum alloy
Silo Configuration	Single / Double / Triple silo; V-shape or W-shape
Axle Load Rating	12 T / 13 T / 16 T — BPW / FUWA / Hua Jing
Suspension Type	Mechanical leaf spring / Air suspension (Germany / USA type)
Tyre Specification	12R22.5 / 315/80R22.5 / 11.00R20 / 12.00R20
Color & Branding	Custom paint color, decals, and OEM logo available
