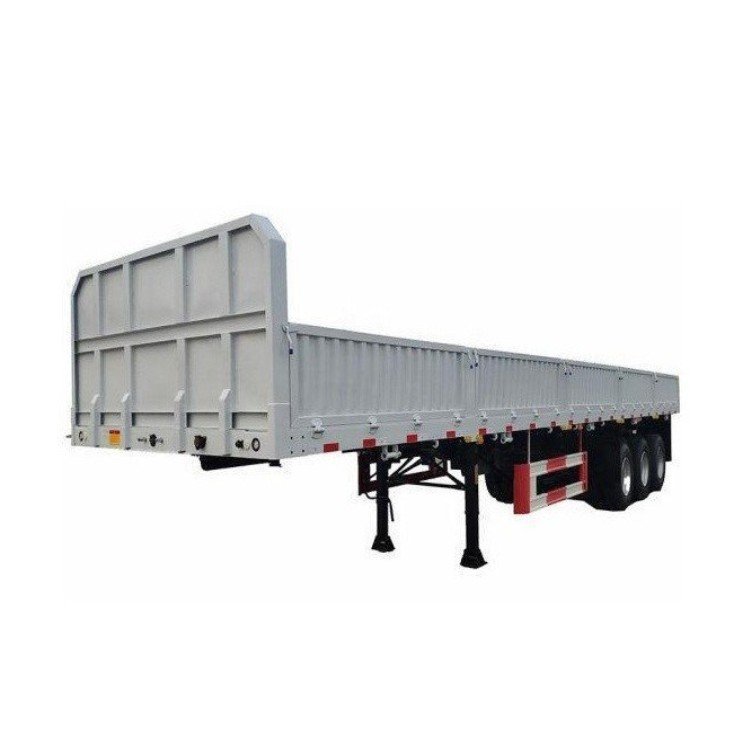

3 Axle Bulk Cargo Side Wall Semi Trailer — 60T Capacity

Name: 3 Axle Bulk Cargo Side Wall Semi Trailer — 60T Capacity
SKU: SKU-525

Heavy-duty 3-axle side wall semi trailer with ≤60T loading capacity. 13000×2500×3050mm, Q345B steel main beam, FUWA/BPW axles, JOST kingpin, WABCO braking, LED lighting. Ideal for bulk cargo, grain, coal, ore, and medium/long-distance freight. OEM customization available.

Trailer

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Semi Trailer
Bulk Cargo — Side Wall Series

3 Axle Bulk Cargo Side Wall Semi Trailer — ≤60T

Developed on the basis of a container flatbed trailer, the bulk cargo side wall semi trailer features a robust side wall structure designed for medium and long-distance transport of medium, heavy, and loose bulk cargo. Available in 40T, 50T, and 60T capacities. Add container twist locks to switch seamlessly between bulk and container haulage. Fully customizable — color, side wall height, suspension, axles, and payload all configurable to order.

≤60T

Loading Capacity

3 Axle

FUWA / BPW Axles

13,000mm

Platform Length

~7.6T

Tare Weight

1500mm

Side Wall Height

Basic Information

Trailer Type	3 Axle Bulk Cargo Side Wall Semi Trailer
Loading Capacity	≤60 T (40T / 50T / 60T options)
Dimensions (L×W×H)	13,000 × 2,500 × 3,050 mm
Trailer Sides Height	1,500 mm (customizable)
Tare Weight	Approx. 7,600 kg
Number of Axles	3 Axles — 13T or 16T per axle
Axle Brand	FUWA / BPW
Painting	Sandblasted chassis → 1× anticorrosive primer → 2× top coat; custom color available

Main Structure & Chassis

Main Beam	Welded design — Q345B steel; Height 500 mm; Upper plate 14 mm / Middle plate 8 mm / Bottom plate 16 mm
Side Beam	16 mm or 18 mm steel channel — Q235 steel
Bottom Platform	3 mm checkered plate (anti-slip steel deck)
King Pin	JOST brand — 2.0 inch or 3.5 inch (bolted or welded)
Landing Gear	JOST D200T or Chinese brand — 28T double-speed
Twist Locks (Container)	4, 8, or 12 sets — lifting type or screw type (optional)

Suspension & Braking

Suspension Type	Mechanical / Bogie / Airbag suspension — China brand or BPW brand
Leaf Spring	90(W) mm × 13(T) mm × 10 layers or 100 mm × 12 mm × 12 (export spec)
Brake System	WABCO RE 6 relay valve; T30/30 + T30 spring brake chamber (TKL brand); 45 L air tank
ABS	Optional (WABCO)

Wheels & Tires

Tire Specification	12R22.5 / 315/80R22.5 / 11.00R20 / 12.00R20 — brand optional
Rim Size	9.00-22.5 or 9.75-22.5 — China brand
Quantity	12 units

Electrical & Accessories

Lighting	Full LED lights (export spec)
Voltage	24 V
Socket	7-pin socket (7-wire harness, export standard)
Valve	WABCO valve (export spec)
Tool Box	1 × 1000 × 500 × 500 mm — includes tire spanner, gudgeon sleeve, cranking bar; size customizable

Key Advantages

Q345B Welded Main Beam

500 mm height, 14 mm upper / 16 mm bottom plate — superior rigidity and fatigue resistance for heavy long-haul loads.

Container Dual-Purpose

Add 4/8/12 JOST-compatible twist locks to convert to a standard container flatbed — maximizing trailer utilization.

WABCO Brake System

RE 6 relay valve + T30/30 spring brake chamber + 45 L air tank — reliable, safe braking on fully loaded descents.

Multiple Suspension Options

Mechanical / bogie / airbag (BPW or China brand) — match your road conditions and cargo requirements with ease.

Export-Grade Components

JOST kingpin & landing gear, full LED lighting, WABCO valve, and 7-pin socket ensure compliance with major international markets.

Full OEM Customization

Color, side wall height, capacity, axle rating, suspension type, tire size, and payload range — all configurable to order.

Ideal Applications

Agriculture	Bulk grain, rice, wheat, maize — medium and long-distance intercity transport
Mining & Quarrying	Coal, ore, gravel, sand — overloaded bulk commodity haulage
Construction	Steel bars, pipes, timber, aggregates, construction materials
General Freight	Heavy machinery, packed goods, and palletized cargo on main freight corridors
Container Logistics	ISO containers when fitted with JOST-compatible twist locks (4/8/12 sets)

OEM Customization Options

Capacity	40T / 50T / 60T wallside options
Side Wall Height	Standard 1,500 mm or custom height per client spec
Axles	13T or 16T — FUWA, BPW, or other approved brand
Suspension	Mechanical / bogie / full airbag (BPW or China brand)
Tires	12R22.5 / 315/80R22.5 / 11.00R20 / 12.00R20 — customer’s preferred brand
Color	Any RAL / Pantone color available
Twist Locks	4 / 8 / 12 sets, lifting or screw type — add container-carrying capability
