20ft & 40ft Container Flatbed Semi Trailers — 3-Axle 60T Platform

Name: 20ft & 40ft Container Flatbed Semi Trailers — 3-Axle 60T Platform
SKU: SKU-532

ArcherMach supplies 20ft and 40ft container flatbed semi trailers built with Q345B hardened main beams, tri-axle 60T BPW/FUWA running gear, WABCO braking systems, and JOST kingpins. Both lengths share the same rigorous platform. Twist locks accommodate 4, 8, or 12 container corners. Air or mechanical suspension, LED lighting, sandblasted anti-corrosion paint. Ask for your custom specification and factory-direct price.

Trailer

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

Product Details

Flatbed Semi Trailer
Container Transport — 20ft & 40ft Models

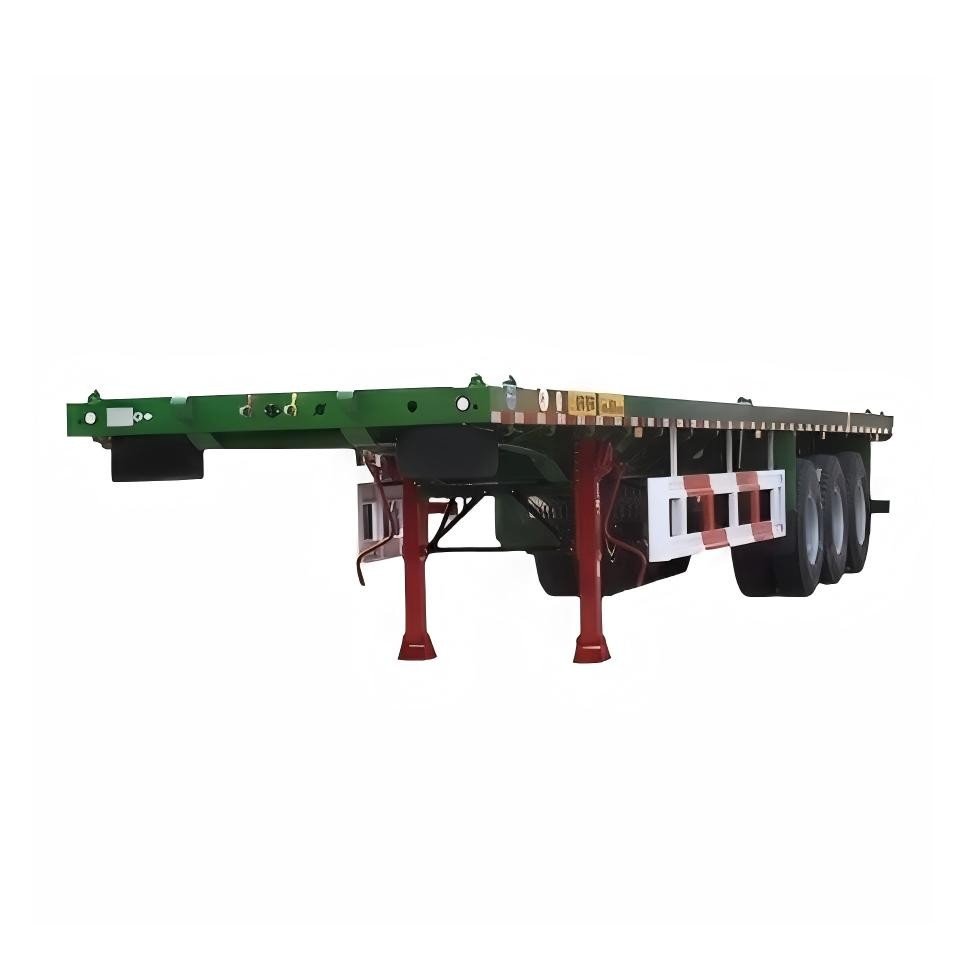

20ft & 40ft Container Flatbed Semi Trailers

Built on a unified platform of Q345B high-tensile steel main beams, tri-axle 60T BPW/FUWA running gear, WABCO braking, JOST kingpins, and air or mechanical suspension. Choose the 20ft (10,000 mm) or 40ft (12,500 mm) deck length — both deliver the same heavy-duty reliability, full twist-lock compatibility, and export-grade LED lighting. OEM customization available across all parameters.

≤60T

Loading Capacity

3 × 13/16T

Tri-Axle FUWA/BPW

10 / 12.5 m

20ft / 40ft Deck

Q345B

Main Beam Steel

4 / 8 / 12

Twist Lock Sets

Model Overview

Product Series	Container Flatbed Semi Trailer
Models	20ft: 10,000 × 2,500 × 1,550 mm 40ft: 12,500 × 2,500 × 1,550 mm
Loading Capacity	≤60 T (both models)
Axle Configuration	Tri-axle (3 axles), 13T or 16T — FUWA / BPW brand
Container Compatibility	1 × 20ft container or 1 × 40ft container (with twist locks)
Customization	Full OEM — color, axle, suspension, tire brand, twist lock count, deck length

Main Frame & Chassis

Main Beam	Height 500 mm — Upper plate 14 mm, Middle plate 8 mm, Bottom plate 16 mm
Main Beam Material	Q345B high-tensile carbon steel
Side Beam	16 mm or 18 mm steel channel — material: Q235 carbon steel
Platform Deck	3 mm-thick checkered (diamond) plate
King Pin	JOST brand — 2.0″ or 3.5″ (bolt-in or welded)
Landing Gear	JOST brand D200T or Chinese brand 28T (double-speed)

Suspension & Braking

Suspension	Air suspension (China brand or BPW brand) — also available in mechanical
Leaf Spring	90(W) × 13(Thickness) mm × 10 layers or 100 × 12 mm × 12 layers (export spec)
Brake System	Dual-circuit full air brake system
Brake Valve	WABCO RE 6 relay valve (export specification)
Brake Chamber	T30/30 + T30 spring brake chamber — TKL brand
Air Tank	45 L capacity
ABS	Optional

Wheels & Tires

Number of Tires	12 units
Tire Size	12R22.5 or 315/80R22.5 (brand selectable)
Rim	9.00-22.5 or 9.75-22.5

Twist Locks & Container Compatibility

Twist Lock Count	4, 8, or 12 sets (configurable)
Lock Type	Lifting type or screw type
20ft Model	Secures 1 × 20ft ISO container
40ft Model	Secures 1 × 40ft ISO container (or 2 × 20ft with 12 locks)

Electrical System & Accessories

Lighting	Full LED — tail, brake, turn, reverse, side marker (export specification)
Voltage	24V
Socket	7-pin receptacle (7-wire harness)
Valve Brand	WABCO (export specification)
Tool Box	1000 × 500 × 500 mm — includes 1 tire spanner, 1 gudgeon sleeve, 1 cranking bar

Painting & Anti-Corrosion

Surface Preparation	Complete chassis sandblasting to remove rust and scale
Primer	1 coat of anti-corrosive primer
Top Coat	2 coats of final paint — color customizable

Key Advantages

█Q345B Hardened Main Beam

500 mm-height I-beam with 14/8/16 mm triple-plate construction. Designed for sustained 60-ton loads over rough terrain and long-haul corridors.

█BPW / FUWA Axle with Air Suspension

Tri-axle 13T or 16T running gear from BPW or FUWA, paired with air suspension (or mechanical). Smooth ride and low cargo vibration even at highway speed.

█WABCO Braking System

RE 6 relay valve, T30/30+T30 spring brake chambers, WABCO valves, 45L air tank, and optional ABS. Meets export-market safety expectations.

█JOST Kingpin & Landing Gear

German JOST 2.0″ or 3.5″ kingpin (bolt-in or welded) plus JOST D200T or 28T double-speed landing gear. Reliable coupling and stable parking on any job site.

█Flexible Twist Lock Configuration

Support 4, 8, or 12 twist lock positions (lifting or screw type). The 40ft model can carry two 20ft containers simultaneously with the 12-lock setup.

█Export-Grade Electrical & Paint

Full LED lighting, 24V 7-pin receptacle, and three-coat sandblasted paint system (primer + 2 top coats). Built for long marine voyages and tropical climates.

Ideal Applications

Application	Recommended Model	Details
Port Container Haulage	40ft (with 12 locks)	Shuttle ISO containers between terminals, depots, and inland distribution centers.
Small Container Delivery	20ft (with 4 locks)	Urban and last-mile delivery of single 20ft containers. Compact turning radius.
Intermodal Logistics	Both models	Transfer containers between rail, port, and trucking fleets. Air suspension reduces cargo shift.
Long-Haul Freight	40ft (air suspension)	Highway line-haul with air suspension for fuel efficiency and cargo protection over long distances.
Construction & Project Sites	20ft (heavy-duty spec)	Move tool containers, site offices, and heavy equipment modules on rough access roads.

OEM Customization Options

Component	Available Options
Axle	FUWA / BPW / other brands — 13T or 16T rating
Suspension	Air (BPW/China) or mechanical / bogie
Tire	12R22.5 / 315/80R22.5 — Chinese or international brand
Twist Lock Count	4 / 8 / 12 sets — lifting or screw type
Deck Length	20ft (10,000 mm) / 40ft (12,500 mm) / custom intermediate lengths
Color	Standard red/blue/yellow or any RAL color
ABS	Optional — add ABS braking module

Why Choose ArcherMach

Factory-Direct Pricing

No middlemen. You deal directly with the manufacturer, getting competitive ex-works pricing with full transparency on every component.

Pre-Shipment QC

Every trailer undergoes complete inspection before dispatch. We share QC photos and videos so you approve what leaves the factory.

Global DDP Delivery

We handle shipping, customs clearance, and import duties. Your trailer arrives door-to-door — you just take delivery and start working.

Full OEM Flexibility

Axle, suspension, tires, paint color, twist locks — every component is configurable. We build the trailer to your specification, not ours.

6-Brand Engineering Machinery

As authorized exporters for XCMG, SANY, Zoomlion, Shantui, SDLG, and YTO, we can bundle your trailer with a matching tractor head for a turnkey fleet solution.
