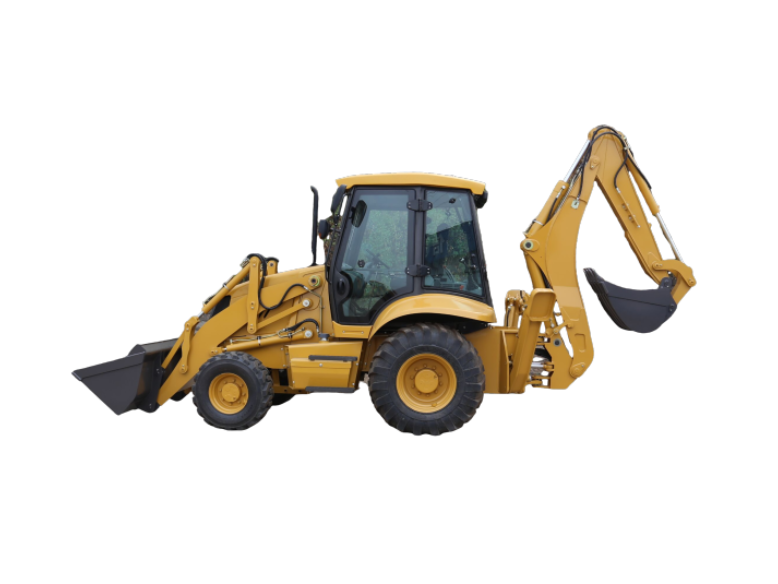

Chinese Backhoe Loader WZ30-25 with best price.This backhoe machine, while not being from a renowned brand, boasts a highly dependable quality, making it the most cost-effective product.
backhoe loader Specification
| Overall Operating Weight | 7640KG |
| Transport Dimension(L*W*H) | 5910x2268x3760mm |
| Wheel Base | 2250mm |
| Min.Ground Clearance | 300mm |
| Bucket Capacity | 1.0m3 |
| Breakout Force | 38KN |
| Loading Lifting Capacity | 2500KG |
| Bucket Dumping Height | 2742mm |
| Bucket Dumping Distance | 1062mm |
| Digging Depth | 52mm |
| Backhoe Capacity | 0.3m3 |
| Max. Digging Depth | 4082mm |
| Swing Angle of Excavator Grab | 190° |
| Max. Pulling Force | 39KN |
| Engine Model | YTR4108G60-1 |
| Type | In direct injection four-stroke and injection combustion chamber |
| Cylinder-Inside Diameter*Stroke | 4-108×120 |
| Rated Power | 55kW |
| Rated Speed | 2400r/min |
| Min. Fuel Consumption | <216g/km.h |
| Max. Torque | >261.7N.M/1800r/min |
| Displacement | 4.4L |
| Model of Steering Device | BZZ5-250 |
| Steering Angle | ±36° |
| Min.Turning Radius | 5018mm |
| Pressure of the System | 12Mpa |
| Axle Manufacturer | Feicheng Axle Factory |
| Main Transmission Type | Double Reduction |
| Final Reducer | Single Stage Final Reducer |
| Rated Loader of Axle | 7.5t |
| Transmission System | |
| Torque Converter | |
| Model | YJ280 |
| Type | Single-stage Three Elements |
| Max. Efficiency | 84.40% |
| Inlet Pressure | 0.4Mpa-0.55Mpa |
| Outlet Pressure | 1.2Mpa-1.5Mpa |
| Cooling Method | Oil-cooling Pressure Circulation |
| Gearbox | |
| Type | Fixed Shaft Power Transmission |
| Oil Pressure of Clutch | 1373Kpa-1569Kpa |
| Gears | Two Gears Ahead, Two Gears Astern |
| Max. Speed | 22Km/h |
| Tyre | |
| Model | 16/70-20 |
| Pressure of Front wheel | 0.22Mpa |
| Pressure of Rear Wheel | 0.22Mpa |
| Brake System | |
| Service Brake | Air over oil Caliper Brake |
| External Type | |
| Self-regulation | |
| Self-balance | |
| Emergency Brake | Operation Power Implementing brake |
| Manual Operation Power Terminating Brake | |
| Hydraulic System | |
| Digging Power of Excavator Grab | 46.5KN |
| Digging Power of Dipper | 31 KN |
| Bucket Lifting Time | 5.4S |
| Bucket Lowering Time | 3.1S |
| Bucket Discharge Time | 2.OS |
| The parameters are subject to change without notice. |
