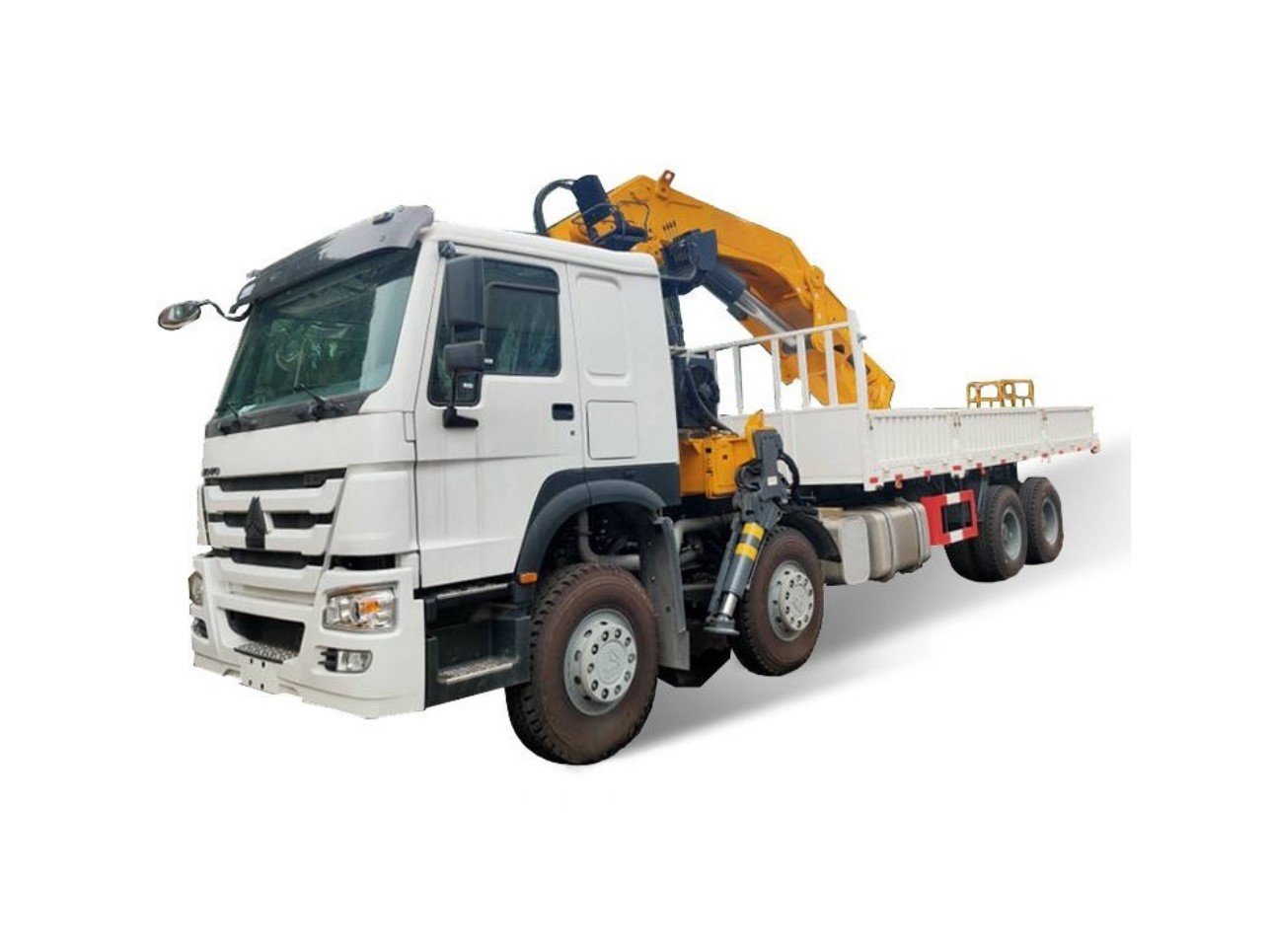

We provide the HOWO chassis Truck mounted crane for sale,The Crane is XCMG brand.This is an optimal combination in the field of truck mounted cranes.
HOWO 16 Tons Truck mounted Crane Specification | ||
Cabin | Chassis model: ZZ1317N4667W HW76 Cab with sleeper, Air conditioner, stereo radio, adjustable steering column, driver’s seat with hydraulic shock absorption, with fairing and side air deflector | |
Vehicle Main Dimensions | (L x W x H)mm | 12200x2550x3988 |
Wheel base (mm) | 1800+4600+1350 | |
Approach/Departure angle(°) | 19/14 | |
Weight in KGS | Gross Weight | 31000 |
Curb Weight | 18800 | |
Steering | ZF8118,hydraulic steering with power assistance | |
Front axles loading capacity | HF9,drum | |
Rear axles loading capacity | HC16 | |
Engine | Brand | WEICHAI |
Model | WP12.400e210 | |
Type | 4-stroke direct injection, 6-cylinder,water cooling, turbo-charging and inter-cooling | |
Horse Power（HP) | 400 | |
Emission standard | Euro II | |
Gearbox | HW19710,10 forwards & 2 reverse | |
Tire | 12.00R22.5,12 pieces including one spare tire | |
Brakes | Service brake: air brake Parking brake: compressed air operating on rear wheels Auxiliary brake: engine exhaust brake | |
Steering Wheel | LHD/rhd | |
Superstructure | ||
Crane | XCMG SQ16ZK4Q with lift capacity 16tons | |
Cargo body size | 8100*2450*600mm | |
Max Lifting capacity | KGS | 16000 |
Max lifting moment | T.M | 40 |
Max Hydraulic outreach | m | 11.52 |
Slewing angle | ° | 360 |
Slewing torque | T.M | 3.45 |
Stabilizer spread | mm | 5610 |
Fitting space required | mm | 1500 |
Width folded | mm | 2458 |
Max. operating pressure | Mpa | 31.5 |
Recommended pump capacity | l/min | 63 |
Dead weight | kg | 4780 |
