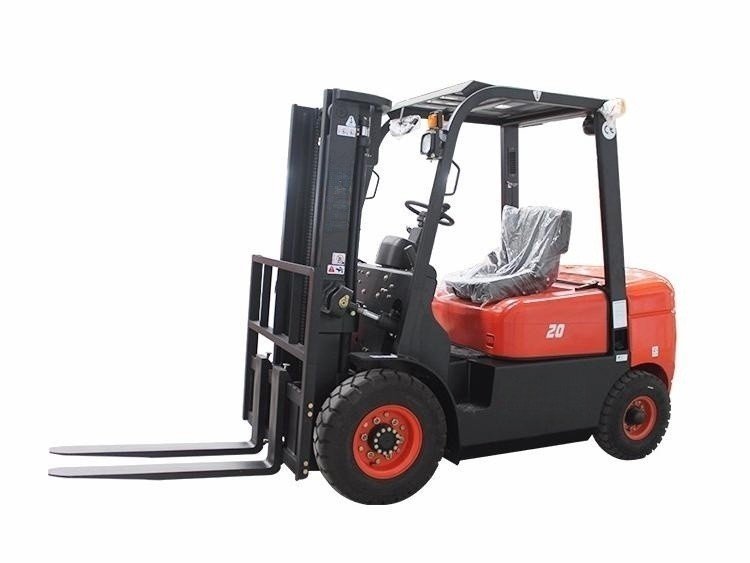

As lifting and transporting machineries, 2.0Ton Small Diesel Forklift Truck is widely used for loading, unloading and transporting the packaged goods in the construction site, factories, warehouses, stations, wharves, ports and so on.
Advantages:
Strong Power System. 2.0Ton small Diesel forklifts are all with reliable power accessories. All accessories like engine, gear box are support by domestic and world famous brand, high quality, reliable after-sales. We follow the strict environmental design, all engines match the China Ⅲ or even higher emission standards.
2.0 Ton Diesel Forklift specifications
| General | Brand | WECAN | ||
| 1 | Model | CPCD20FR | ||
| 2 | 2.0 Ton Forklift capacity | kg | 2000 | |
| 3 | Load center | mm | 500 | |
| 4 | Power type | Diesel | ||
| 5 | Transmission | Hydraulic/Mechanical | ||
| Dimensions | 6 | Lifting height | mm | 3000 |
| 7 | Free lifting height | mm | 60 | |
| 8 | Turning radius | mm | 2450 | |
| 9 | Overall length | mm | 3605 | |
| 10 | Overall width | mm | 1160 | |
| 11 | Overall height (mast lowered) | mm | 2095 | |
| 12 | Overall height (mast raised) | mm | 4080 | |
| 13 | Overall height (overhead guard) | mm | 2095 | |
| 14 | Fork length | mm | 1070 | |
| 15 | Fork width | mm | 100 | |
| 16 | Fork thickness | mm | 40 | |
| Performance | 17 | Max. driving speed (with/without load) | km/h | 17/19 |
| 18 | Max. lifting speed (with load) | mm/s | 400 | |
| 19 | Max. traction (with/without load) | kn | 14/9 | |
| 20 | Gradeability (with/without load) | % | 15/20 | |
| 21 | Tilting angles (forward/backward) | ° | 6/12 | |
| 22 | Service weight | kg | 3320 | |
| Engine | 23 | Engine model | 490BPG engine | |
| 24 | Power | kw | 39 | |
| 25 | Rated speed | rpm | 2650 | |
| 26 | Displacement | L | 2.67 | |
| 27 | No. of cylinder | 4 | ||
| Wheel | 28 | Front overhang | mm | 451 |
| 29 | Wheel base | mm | 1640 | |
| 30 | Front tread | mm | 970 | |
| 31 | Rear tread | mm | 970 | |
| 32 | Front tire | 7.00-12 | ||
| 33 | Rear tire | 6.00-9 | ||
Product Features:
1, Standard lifting height: 3000mm with wide view mast
2, Load center: 500mm
3, Equipped with Xinchai/Quanchai engine or imported Isuzu/Yanmar/Mitsubishi/engine
4, Advanced ergonomical Design
5, Applied the advanced outline designing method, the truck is designed with stream, sporty outline, and thanks to the new design, all the exposed parts are metal made, which is firm and reliable.
6, Easy access to engine and transmission due to applied bolt type fastened front plate, greatly improving the convenience of daily maintenance and repair.
7, Enlarged cross section of rear OHG improves the air intake capacity, and reduces air intake resistance, which makes internal combustion more complete and prolongs engine life.
More Forklifts For Option:
Diesel Forklift: 1.5Ton 1.8Ton 2Ton 2.5Ton 3Ton 3.5Ton 3.7Ton 4Ton 4.3Ton 5Ton 6Ton 7Ton 10Ton
LPG/Gasoline Forklift: 2Ton 2.5Ton 3Ton 3.5Ton
Electric Forklift: 1.5Ton 2Ton 2.5Ton 3Ton 3.5Ton
Rough Terrain Forklift: 3Ton
