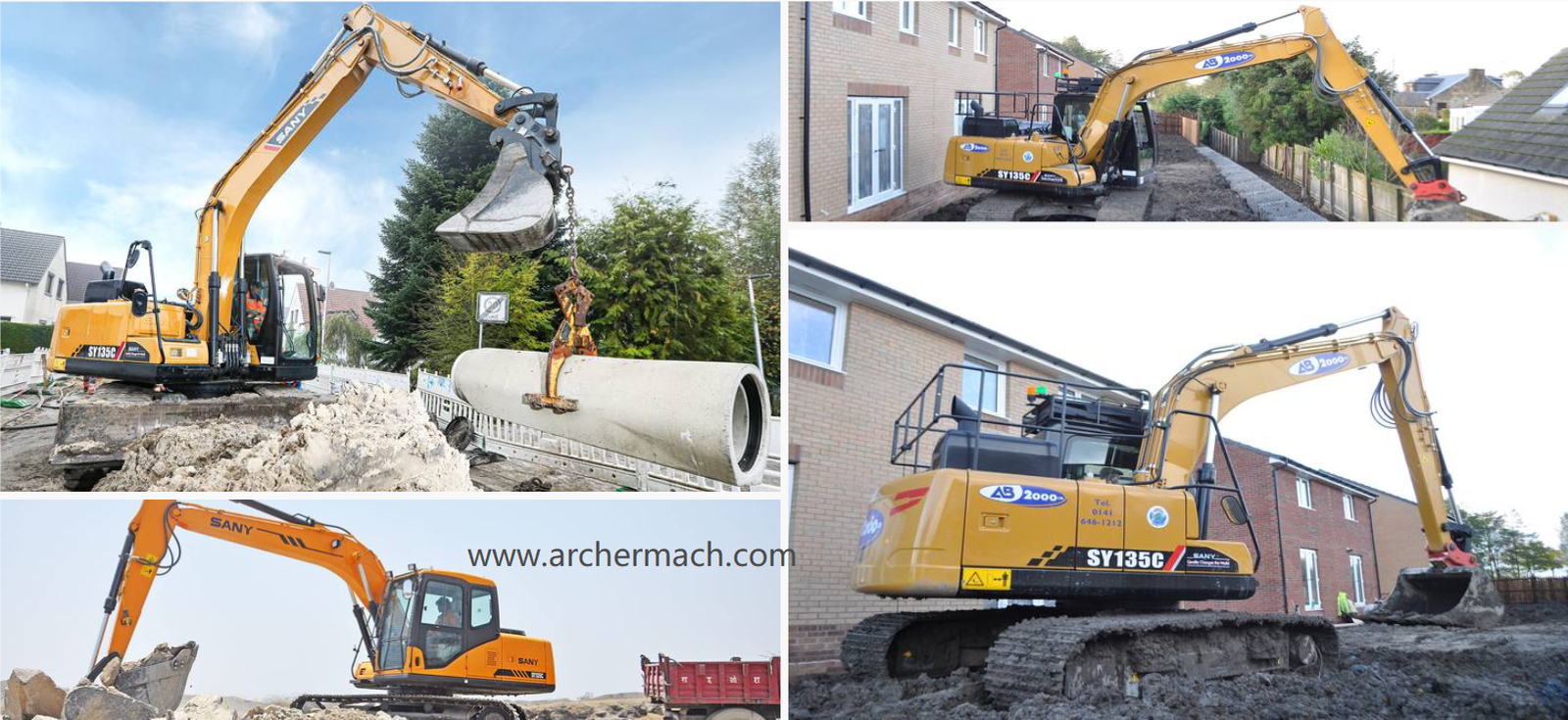

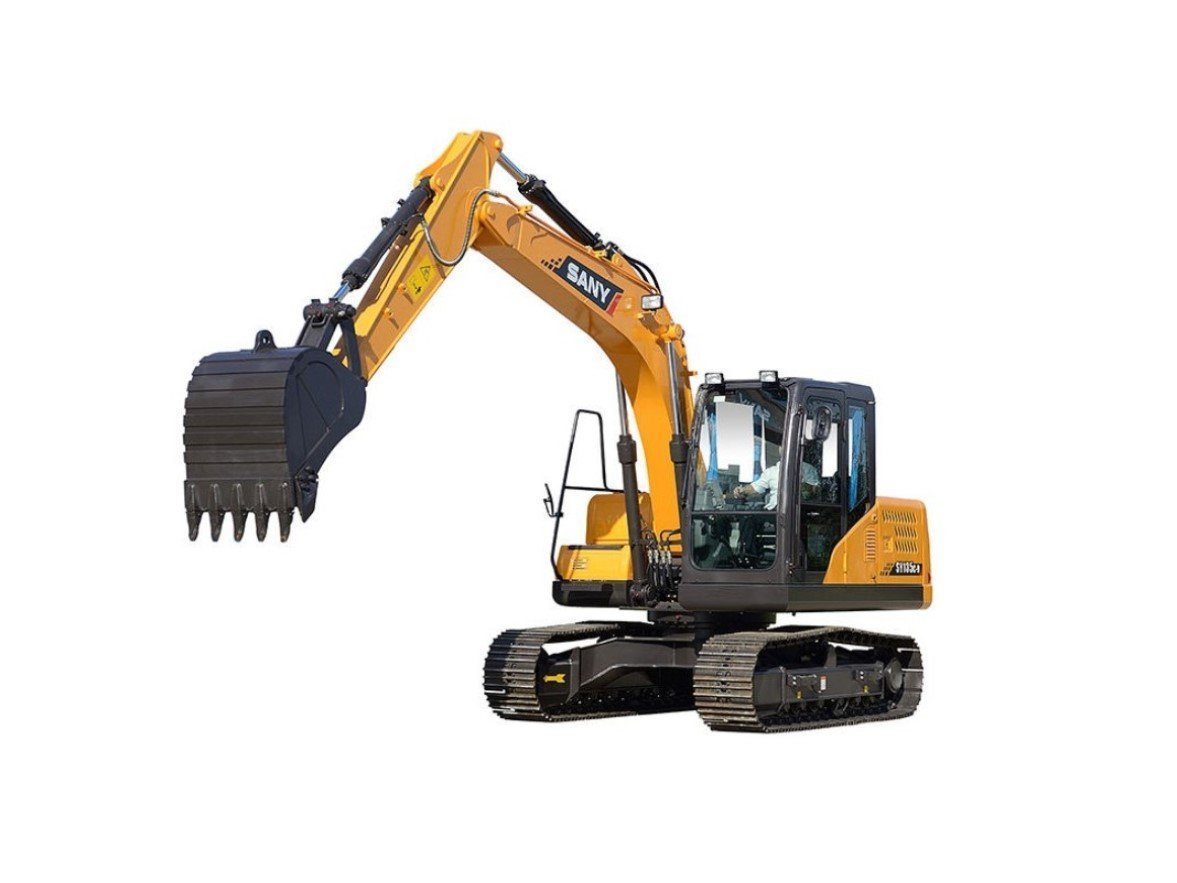

We are a supplier of SANY heavy equipment. The below is the SANY SY135C Excavator. Contact us to get the SANY SY135C price.
SANY excavator SANY SY135C Specs
| DIMENSIONS | |
| Overall length | 7,700 mm |
| overall width | 2,590 mm |
| Overall superstructure width | 2,490 mm |
| Overall boom height | 2,815 mm |
| Rear length | 2,205 mm |
| Track width | 1,990 mm |
| Landing gear length | 3,665 mm |
| Landing gear width (dozer blade) | 2,650 mm |
| Blade height | 480 mm |
| Track shoe | 700mm |
| Min. ground clearance | 425 mm |
| Tail swing radius | 2,205 mm |
| Distance between track wheel and guide wheel (center) | 2,930 mm |
| Boom length | 4,600 mm |
| Arm length | 3000 mm |
| Bucket capacity | 0.6 cubic meters |
| WEIGHT | |
| Operating mass | 14,666 kg |
| WORKING RANGE | |
| Max. ground level range | 8,290 mm |
| Max. excavation depth | 5,500 mm |
| Max. vertical range | 8,645 mm |
| Max. dumping height | 6,175 mm |
| Minute. radius of gyration | 2,500 mm |
| Max. excavation depth, vertical wall | 4,850 mm |
| ENGINE | |
| Model | Isuzu 4JJ1X |
| Rated power | 78.5 kW |
| Max. torque | 375Nm/1600rpm |
| Shift | 2.999 l |
| HYDRAULIC SYSTEM | |
| Main pump | Adjustable axial piston pump |
| Max. oil flow | 110 l / min |
| Travel drive | Adjustable axial piston pumps |
| Slewing gear | Adjustable axial piston pumps |
| RELIEF VALVE SETTINGS | |
| Boom circuit | 343 bar |
| Slewing circuit | 253 bar |
| Drive circuit | 343 bar |
| Pilot control circuit | 39 bar |
| PERFORMANCE | |
| Swing speed | 12 rpm |
| Max. ground speeds | fast 5.3 km/h slow 3.5 km/h |
| Max. traction force | 112 kN |
| Climbing ability | 35° |
| ISO bucket breakaway force | 103 kN |
| ISO arm tear-out force | 67 kN |
| SERVICE REFILL CAPACITIES | |
| Fuel tank | 245 L |
| Engine coolant | 23.6 L |
| Engine oil | 15 L |
| Travel drive (per side) | 5.5 L |
| Hydraulic oil tank | 175 L |
