Are you in need of a reliable and high-performing forklift for your business? Look no further than Zoomlion forklift, a leading manufacturer in the industry. Specializing in producing top-notch forklifts, Zoomlion has established itself as a trusted name in the market.
One of Zoomlion’s notable forklift models is the Zoomlion FD50. This robust and versatile machine is designed to handle heavy loads with ease. With a maximum lifting capacity of 5 tons, the FD50 can tackle demanding tasks effortlessly. Its advanced hydraulic system ensures smooth and precise lifting, providing optimum efficiency and productivity.
For smaller-scale operations, Zoomlion offers the Zoomlion FD30. Although compact in size, this forklift doesn’t compromise on performance. With a lifting capacity of 3 tons, the FD30 is ideal for maneuvering in tight spaces without sacrificing power. Its ergonomic design and user-friendly controls make it a favorite among operators, ensuring comfort and convenience during operation.

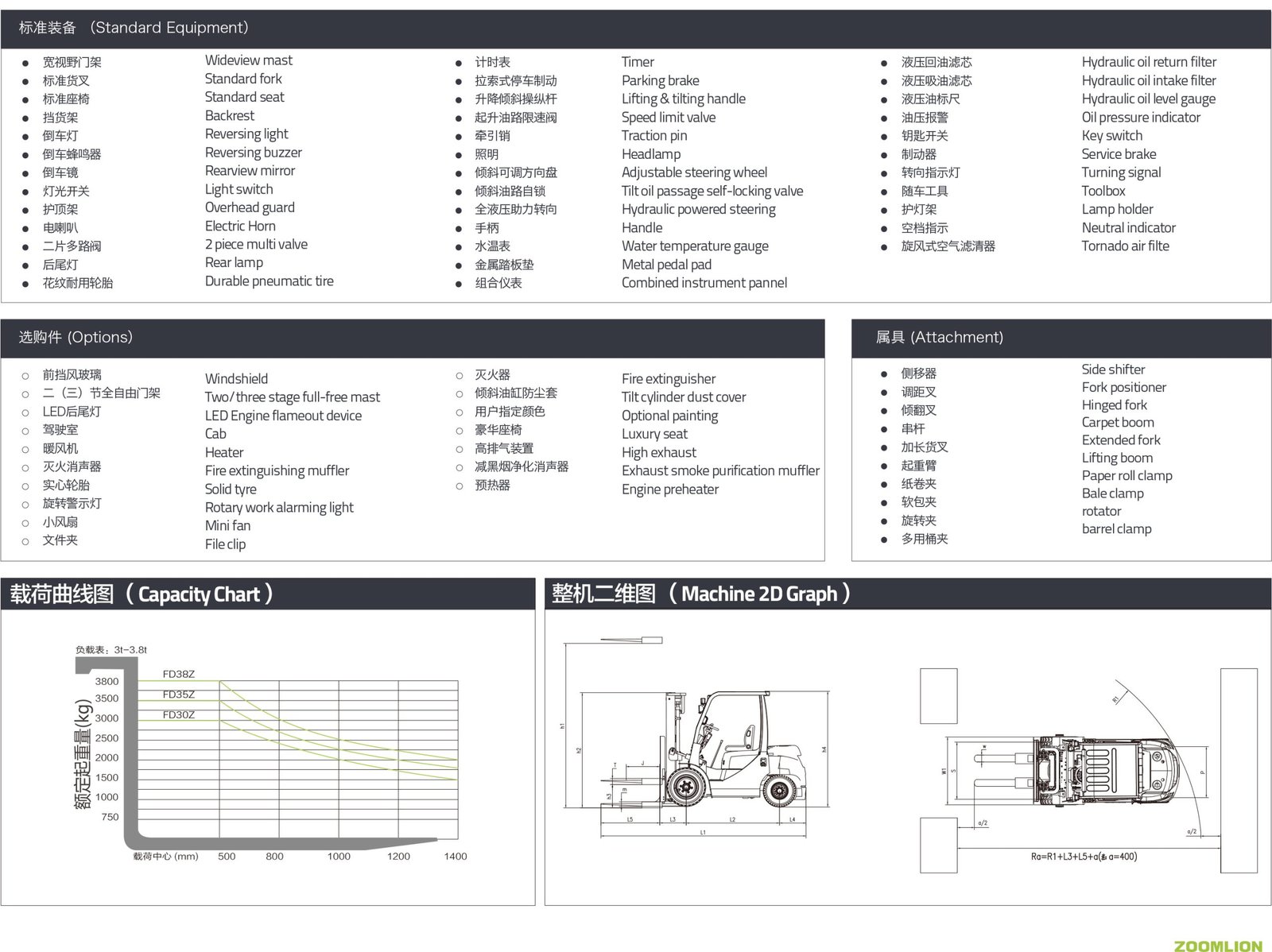

To explore the complete range of forklifts offered by Zoomlion, refer to their comprehensive catalog. The catalog provides detailed information about each model, including specifications, features, and benefits. It serves as a valuable resource for customers, allowing them to make informed decisions based on their specific requirements.
Zoomlion takes pride in its commitment to manufacturing high-quality forklifts that meet industry standards. Their products undergo rigorous testing and quality control measures to ensure reliability and durability. By choosing Zoomlion, you can trust that you are investing in a long-lasting and efficient forklift that will enhance your business operations.
Specifications | UNIT | FD20H | FD25H | FD30H | FD35H | |||
1 | Characteristics | Power | diesel | diesel | diesel | diesel | ||
2 | Rated Capacity | kg | 2000 | 2500 | 3000 | 3500 | ||
3 | Center of load | mm | 500 | 500 | 500 | 500 | ||
4 | Lifting height | mm | 3000 | 3000 | 3000 | 3000 | ||
5 | Free lifting height | mm | 135 | 135 | 145 | 160 | ||
6 | Forks L×W×H | mm | 1070x122x40 | 1070x122x40 | 1070x125x45 | 1070x125x50 | ||
7 | Tilt Forward/Backward | 。 | 6/12 | 6/12 | 6/12 | 6/12 | ||
8 | Min.turning radius | mm | 2240 | 2240 | 2410 | 2445 | ||
9 | Min.ground clearance(Mast) | mm | 110 | 110 | 110 | 120 | ||
10 | Overhead guard height | mm | 2090 | 2090 | 2130 | 2090 | ||
11 | Height from seat to overhead guard | mm | 1005 | 1005 | 1000 | 1005 | ||
12 | Front overhang | mm | 473 | 473 | 483 | 488 | ||
13 | Perf | Max.traveling speed(loaded) | km/h | 19 | 19 | 20 | 20 | |
14 | Max.lifting speed(loaded/empty) | mm/s | 490/510 | 490/510 | 470/520 | 470/520 | ||
15 | Drawbar pull/Gradeability | kN/% | 17/20 | 17/20 | 18/20 | 18/20 | ||
16 | Dimensions | Overall length (without fork) | mm | 2570 | 2570 | 2705 | 2746 | |
17 | Overall width | mm | 1160 | 1160 | 1230 | 1230 | ||
18 | Mast lowered height | mm | 1990 | 1990 | 2055 | 2095 | ||
19 | Mast extended height | mm | 4000 | 4000 | 4256 | 4256 | ||
20 | Chassis | Tire | Front | 7.00-12-12PR | 7.00-12-12PR | 28×9-15-12PR | 28×9-15-12PR | |
21 | Rear | 6.00-9-10PR | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | |||
22 | Wheelbase | mm | 1600 | 1600 | 1700 | 1700 | ||
23 | Tread width | Front/Rear | mm | 970/970 | 970/970 | 1000/970 | 1000/970 | |
24 | Curb weight | None-load | kg | 3350 | 3800 | 4350 | 4850 | |
25 | Powertrain | Battery | Voltage/Capacity | V/Ah | 12/90 | 12/90 | 12/90 | 12/90 |
26 | Engine | Model | XC490BPG | XC490BPG | XC490BPG | XC495BPG | ||
27 | Rated power | kw/r.p.m | 37/2650 | 37/2650 | 37/2650 | 42/2650 | ||
28 | Rated torque | Nm/r.p.m | 148/2000 | 148/2000 | 148/2000 | 174/2000 | ||
29 | Cylinder amount | 4 | 4 | 4 | 4 | |||
30 | Bore×Stroke | mm | 90×100 | 90×100 | 90×100 | 95×105 | ||
31 | Displacement | 2.54 | 2.54 | 2.54 | 2.98 | |||
32 | Fuel tank | L | 60 | 60 | 70 | 70 | ||
33 | Transmission | 1/1 automatic transmission | ||||||
34 | Working pressure | MPa | 17.5 | 17.5 | 17.5 | 17.5 |
