We offer a range of Zoomlion cranes for sale,such as:ZOOMLION 80 Ton Crane ,catering to various construction needs. Explore our product listings to find the right crane model for your requirements.The Zoomlion ZTC800V is a highly popular crane model.

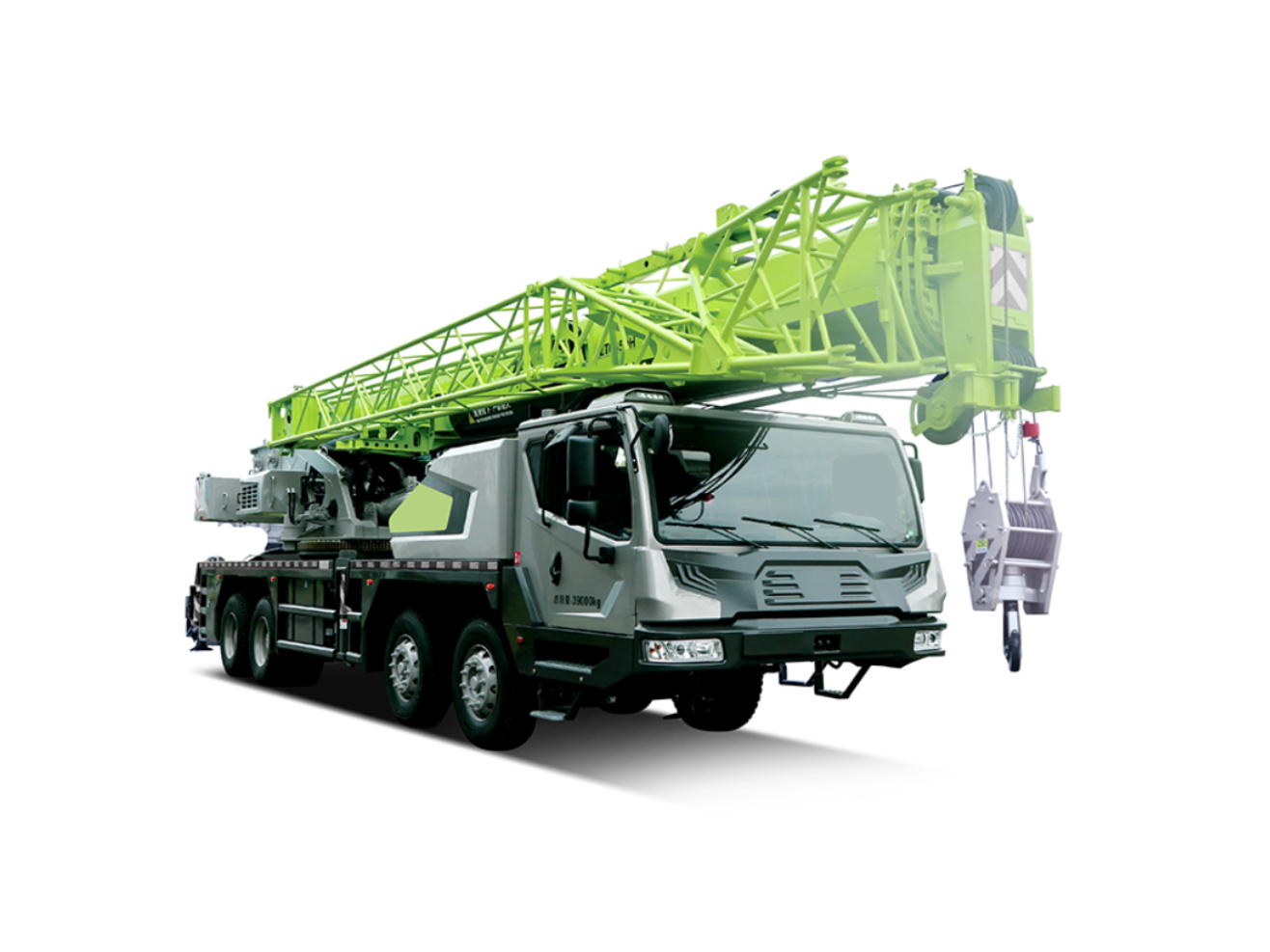

Zoomlion crane ZTC800V Specification
| ZOOMLION 80 Ton Crane Item | Unit | Value | Remarks | |
| Working performance | Max. rated lifting capacity | kg | 80000 | |
| Max. load moment of basic boom | kN.m | 2646 | ||
| Max. load moment of main boom(fully extended) | kN.m | 1288 | ||
| Max. lifting height of main boom | m | 47.7 | These parameters do not include deflection of main boom and jib | |
| Max. lifting height of jib | m | 63.8 | ||
| Working speeds | Max. hoist rope speed(Main winch) | m/min | 125 | At 4th layer |
| Max. hoist rope speed(Auxiliary winch) | m/min | 110 | At 2nd layer | |
| Boom demrricking up time | s | 55 | ||
| Boom telescoping out time | s | 120 | ||
| Slewing speed | r/min | 1.7 | ||
| Driving parameters | Max. driving speed | km/h | 85 | |
| Max. gradeability | % | 46 | ||
| Min. Turning diameter | m | ≤24 | ||
| Min. ground clearance | mm | 305 | ||
| Oil consumption per hundred kilometers | L | 45 | ||
| Mass | Deadweight in driving condition | kg | 46000 | |
| Complete vehicle kerb mass | kg | 45805 | ||
| Front axle load | kg | 20000 | ||
| Rear axle load | kg | 26000 | ||
| Dimensions | Overall dimensions(L×W×H) | mm | 14500×2800×3850 | |
| Longitudinal distance between outriggers | m | 6.05 | ||
| Transversal distance between outriggers | m | Fully extended:7.8 | ||
| Tail slewing radius | mm | 4200 | ||
| Boom length | m | 12.1 – 47.0 | ||
| Boom angle | ° | -2 – 80 | ||
| Jib length | m | 9.5, 16.0 | ||
| Offset | ° | 0/15/30 | ||
