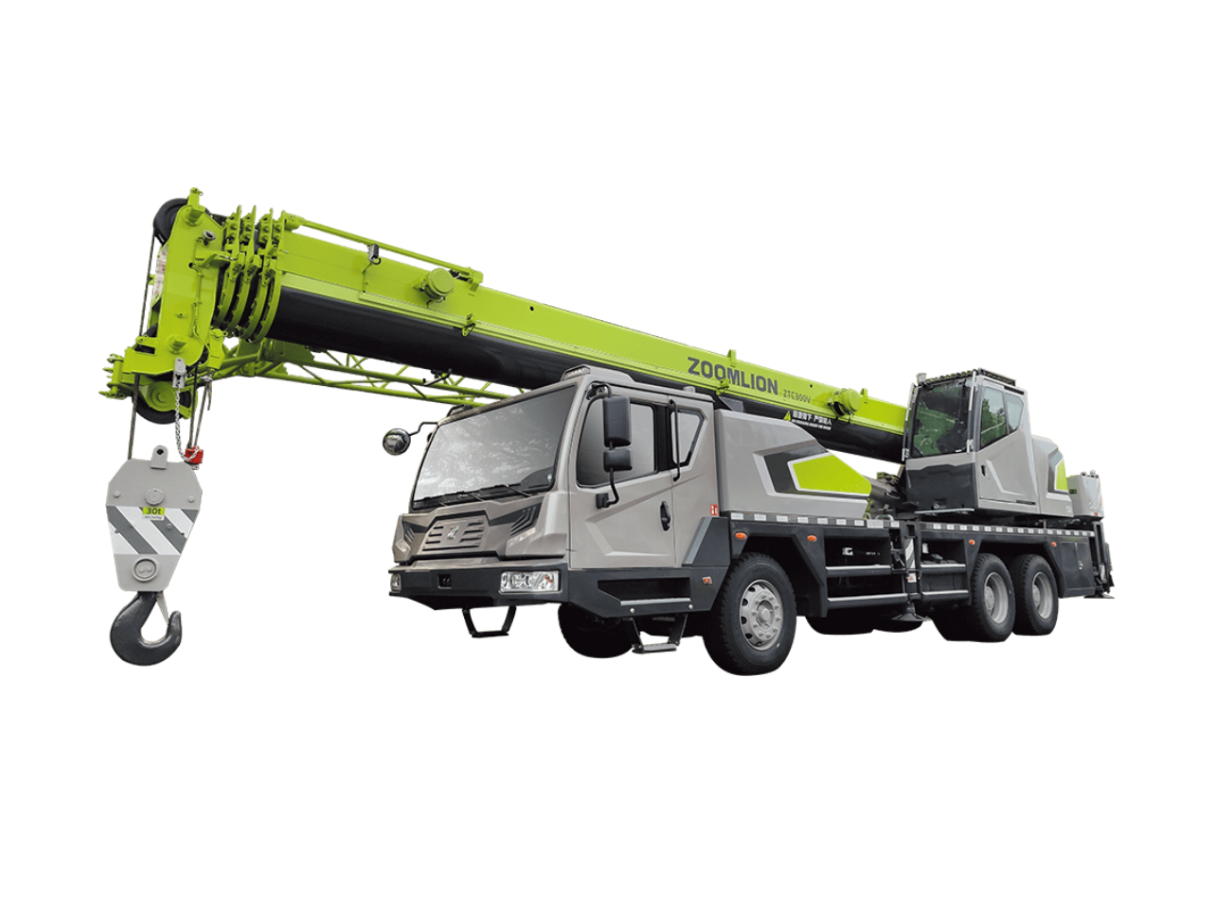

Introducing the ZTC300V truck crane, a cutting-edge product by Zoomlion, boasting decades of expertise in mobile crane design and manufacturing. This high-performance crane is tailored for global markets, featuring advanced lifting height, main boom length, working speed, and capacity.
Equipped with 5 telescopic boom sections and a hydraulic-proportional control system, the ZTC300V offers full-range slewing capabilities. Its specially designed 3-axle (6×4 drive) chassis ensures optimal performance and maneuverability. The wide-view cab and user-friendly design enhance operator comfort.
The crane’s hydraulic system is outfitted with the latest directional control valve, maximizing each mechanism’s efficiency while improving reliability and safety. Safety features like relief valves, balance valves, hydraulic locks, and brake valves mitigate risks from oil line overloads and ruptures.
Additionally, the crane is equipped with a load moment limiter and a comprehensive lighting system for safe nighttime operations. Experience the pinnacle of performance and safety with the ZTC300V, tailored to meet your construction needs worldwide.
| Item | Value | Remarks | ||
| Working
performance |
Max. rated lifting capacity | kg | 30000 | |
| Max. load moment of basic boom | kN.m | 990 | ||
| Max. load moment of Max. length main boom | kN.m | 624 | ||
| Max. lifting height of basic boom | m | 11.3 | ||
| Max. lifting height of main boom | m | 42.1 | These parameters
do not include deflection of boom and jib. |
|
| Max. lifting height of jib | m | 50 | ||
| Working
speeds |
Max. hoist rope speed (Main winch) | m/min | 120 | At 4th layer |
| Max. hoist rope speed (Auxiliary winch) | m/min | 120 | At 4th layer | |
| Boom derricking up time | s | 25 | ||
| Boom telescoping out time | s | 84 | ||
| Slewing speed | r/min | 0 – 2.7 | ||
| Driving | Max. operation altitude | m | 2000 | |
| Max. driving speed | km/h | 90 | ||
| Max. gradeability | % | 42 | ||
| Min. turning diameter | m | ≤ 20 | ||
| Min. ground clearance | mm | 260 | ||
| Oil consumption per hundred kilometer | L | 28 | ||
| Mass | Deadweight in driving condition | kg | 32510 | |
| Complete vehicle kerb mass | kg | 32380 | ||
| Front axle load | kg | 6610 | ||
| Rear axle load | kg | 25900 | ||
| Dimensions | Overall dimensions (L×W×H) | mm | 13150×2500×3450 | |
| Longitudinal distance between outriggers | m | 5.40 | ||
| Transversal distance between outriggers | m | For completely
extended outrigger: 6.2 m for intermediately extended outrigger: 4.25 m |
||
| Tail slewing radius | mm | 3265 | ||
| Main boom length | m | 10.7 – 42.0 | ||
| Main boom angle | ° | -1 – 80 | ||
| Jib length | m | 8 | ||
| Offset | ° | 0, 15, 30 | ||
