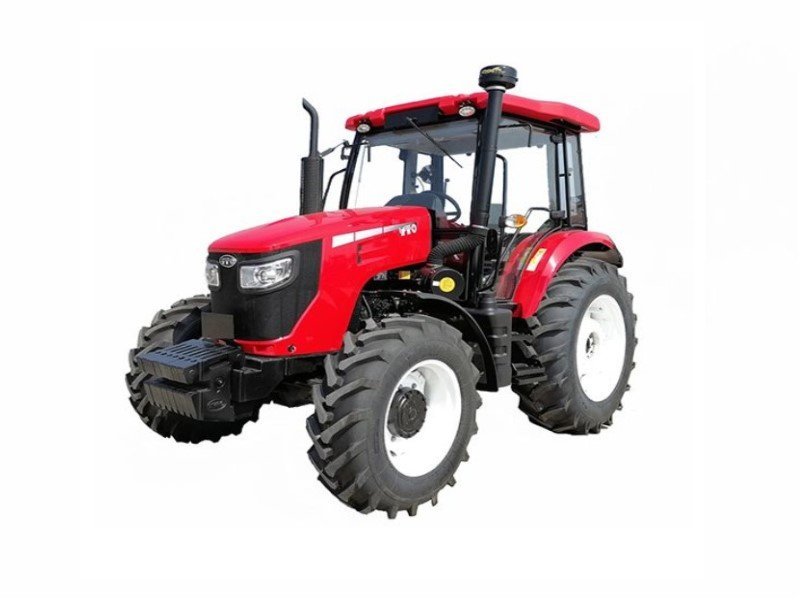

1. YTO-EMF604/EMF600 Wheeled Tractor
(1). Hydraulic steering, easy and flexible to operate, can effectively reduce the fatigue of the driver;
(2).With integrated flat floor, larger working space for the driver; convenient to operate and comfortable to drive.
2. YTO-EF804 Wheeled Tractor
(1). Gearbox 8F + 4R, more gears to meet varieties of operation requirements; mesh sleeves gear shifting , with high coupling efficiency;
(2). With integrated flat floor, larger working space for the driver; soft, convenient to operate and comfortable to drive.
(3). The EF804 adopts a heavy-duty front drive axle, which can withstand large external shocks and vibrations and has a strong loading capacity;
3. YTO-EX800 Wheeled Tractor
(1). Gearbox 12F + 4R, more gears to meet varieties of operation requirements; mesh sleeves gear shifting, with high coupling efficiency;
(2). With hanging clutch pedal, brake pedal and integrated flat floor, larger platform space for the driver; soft, convenient to operate and comfortable to drive.
60-80HP Wheeled Tractor Specifications
| Tractor Model | YTO-EMF604 | YTO-EMF600 | YTO-EF804 | YTO-EF800 | YTO-EX800 | |||
| Drive type | 4WD | 2WD | 4WD | 2WD | 2WD | |||
| Dimension(L*W*H) | mm | 3910*1805*2150 | 3910*1805*2150 | 3990*1900*2255 | 3910*1900*2255 | 3950*2170*2705 | ||
| Min. ground clearance | mm | 425 | 430 | 395 | 400 | 360 | ||
| Min. operation weight | Kg | 2456 | 2256 | 2791 | 2404 | 3110 | ||
| Engine | Model | YD4100T | Y4110T | LR4B3-23 | ||||
| Rated power | Kw/hp | 44.1/60 | 58.8/80 | 59/80 | ||||
| Rated rotation speed | rpm | 2200 | 2300 | 2300 | ||||
| Type | 4-cylinder, water-cooled, naturally aspirated | 4-cylinder, water-cooled, naturally aspirated | 4-cylinder, water-cooled, naturally aspirated | |||||
| Traveling system | Gears | F/R | 8F/4R | 8F/4R | 12F/4R | |||
| Forward speed | km/h | 2.8-34.6 | 2.8-36.4 | 1.9-31.7 | ||||
| Tire | 9.5-20/14.9-28 | 7.5-16/14.9-28 | 9.5-24/16.9-30 | 7.5-20/16.9-30 | 7.5-16/16.9-30 | |||
| wheel tread | Front | mm | 1400 | 1350 | 1380 | 1350-1550 | 1400-1900 | |
| Rear | mm | 1400-1600 | 1420-1620 | 1500-2100 | ||||
| Steering type | hydraulic | hydraulic | hydraulic | |||||
| Min turning radius | m | 4.5±0.3 | 4.0±0.3 | 4.5±0.3 | 3.9±0.3 | 4.1±0.2 | ||
| Brake type | Hydraulic, disc type | Hydraulic, disc type | Hydraulic, disc type | |||||
| Hydraulic system | Link system | 3P | Ⅱ | Ⅱ | Ⅱ | |||
| Lifting force | linkage point | KN | ≥14.8 | ≥20.7 | ≥21.7 | |||
| 610mm | ≥9.9 | ≥13.4 | ≥16 | |||||
| PTO | Type | Independent | Independent | Independent and synchronized | ||||
| Rotation speed | rpm | 540/1000 | 540/1000 | 540/1000 | ||||
| Power | Kw/hp | 39.7/54.0 | 48.1/65.4 | 50/68 | ||||
| Tillage control method | Force control, position control | Force control, position control | Force control, position control, force position comprehensive control, floating control | |||||
※ Specifications are subject to change without notice; the information in this brochure is for reference only, please refer to the actual product when purchasing.
