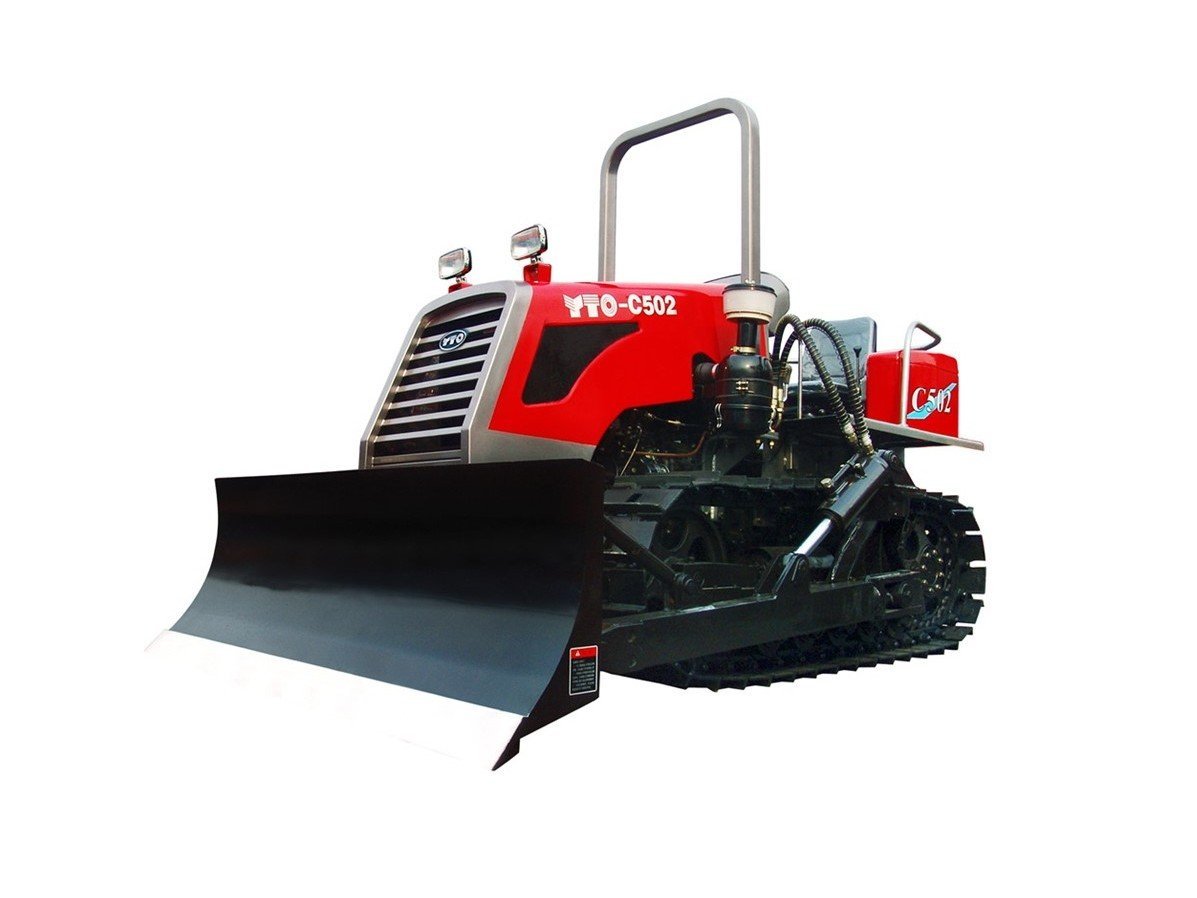

1.YTO tractor (2+1)×4 compound gearbox with shift sleeve is provided with multiple gears, resulting in convenient operation and wide application.
2. The main clutch for agricultural crawler tractor is a kind of normally closed wet clutch with single disc and spring compressor. So, the operation of the 40-60HP crawler tractor is quite convenient.
3. Additionally, the friction plate of the dry multi-disc steering clutch is made of new material with good durability. The floating band brake has excellent brake performance.
4. The crawler tractor with shovel uses semi-rigid suspension system for outstanding bulldozing performance.
| Model | C402 | C502 | C602 |
| Crawler tractor | |||
| Overall dimension (L×W×H) (with shovel blade) (mm) | 3760×2016×1680 | ||
| Min. operating mass (kg) | 3660 | 3670 | 3700 |
| Track gauge (mm) | 1100 | ||
| Wheelbase (mm) | 1600 | ||
| Track shoe width (mm) | 310 | ||
| Ground pressure (with shovel blade) (kPa) | 36.8 | 36.9 | 37.2 |
| Diesel Engine | |||
| Model | YT3A2-22 | YT3B2-22 | YT3B2-22 |
| Type | In-line, water cooled, four stroke | ||
| Rated power and rotating speed (kW/rpm) | 29.4/2200 | 36.7/2200 | 44/2400 |
| Gearbox | |||
| Gear shift (F/R) | 8/4 | ||
| Speed Range (km/h) (F/R) | 1.81-12.78/2.01-6.05 | 1.97-13.94/2.20-6.60 | |
| Power of PTO shaft (kW) | 25 | 31 | 37 |
| PTO rotating speed (rpm) | 540/720 | ||
| Clutch | Single disc, double acting | ||
| Working device of diesel crawler tractor | |||
| Suspension type | Rear-mounted, three-point suspension (type II) | ||
| Plough depth control method | Height adjustable | ||
| Lifting force (KN) | 8 | ||
| Size of dozer blade (W×H) (mm) | 2016×680 | ||
| Embedded depth of dozer blade (mm) | 260 | ||
