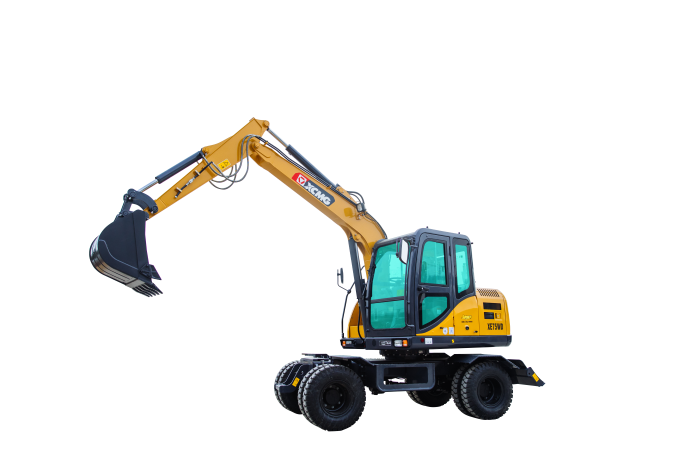

High Quality Crawler Excavator XE75WD
Equipped with large displacement, large-throughput electronically controlled main pump, customized main valve, electronically controlled load-sensitive system, soft control, good coordination of compound action, powerful digging of the whole machine, low fuel consumption.
Large wheelbase, dual tire configuration, reinforced axles, widened dozer design, good operational stability.
Electronically controlled throttle foot pedal, liftable armrest box, optimized shock absorber, significantly improved driving comfort. Longer working device design, wider operating range, equipped with multi-machine system, to meet the “multi-purpose machine”.
Optimized transmission system, new electronic control logic, smoother start, optimized swing start-stop impact, easier lifting operation
Sales model | Unit | XE75WD | |
Operating weight | Kg | 6500 | |
Bucket capacity | m³ | 0.3 | |
Main performance | Travel speed | km/h | 5.4/2.9 |
Swing speed | r/min | 10 | |
Gradeability | ° | 35 | |
Ground pressure | kPa | 33.5 | |
Bucket digging force | kN | 57 | |
Arm digging force | kN | 38 | |
Maximum traction | kN | 68.3 | |
Working scope | A Max. digging height | mm | 7085 |
B Max. dumping height | mm | 5160 | |
C Max. digging depth | mm | 4020 | |
