Main parameters:
Bucket capacity 0.14CBM (standard)
Operating weight:4050kgs
Max digging height:5320mm
Max digging reach: 5810mm
Main configuration
4TNV88 engine, 27.1/2200 kw/rpm
Hydraulic system
Optional parts:
Centralized oil lubrication refilling facilitates slewing and the support of the rotary motor’s internal teeth.

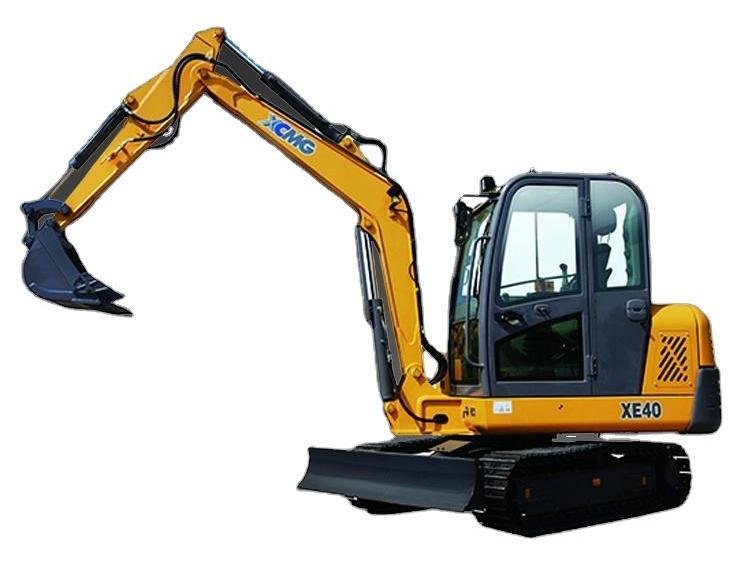

XE40 is the most popular model of China 4T excavator for sale. XCMG Spare Parts
| Model | Unit | XE40C | |
| Operating weight | kg | 4050 | |
| Standard bucket capacity | m³ | 0.14 | |
| Engine | Engine Model | / | 4TNV88 |
| Direct injection | / | √ | |
| Four strokes | / | √ | |
| Water cooling | / | √ | |
| Turbo charged | / | × | |
| Air to air intercooler | / | × | |
| No. of cylinders | / | 4 | |
| Rated power/speed | kw/rpm | 27.1/2200 | |
| Max. torque/speed | N.m | 142/1320 | |
| Displacement | L | 2.19 | |
| The main performance | Travel speed | km/h | 4.2/2.6 |
| Swing speed | r/min | 13.5 | |
| Max. gradeability | / | 30 | |
| Ground pressure | kPa | 36.3 | |
| Max.Bucket digging force | kN | 23.2 | |
| Max.arm crowd force | kN | 19.3 | |
| Max.traction force | 33.9 | ||
