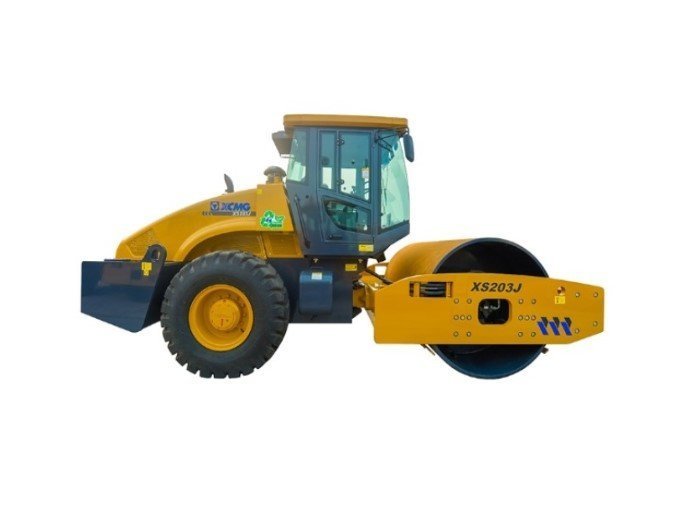

XCMG Road Roller Machine 20ton XS203J

XCMG Road Roller Machine 20ton XS203J

The XCMG single drum roller XS203J is ideal for compaction of pebbles, sandy soils, moraine soil, blasting rock, and clayey soil, as well as concrete and stabilized soil base materials in a variety of large projects. The XS203J road roller is ideal for compaction on high-grade highways, airports, harbors, dams, and industrial construction sites.

Brands:
Category:
Tags: , , , ,

Road roller machine XS203J is a highly efficient and energy-saving super heavy machinery driven single drum vibratory roller independently developed by XCMG.

Other Road Roller

Model Unit XS203J
Operating weight kg 20000
Load applied on front drum kg 10000
Static linear load N/cm 470
Travel Speed km/h 3-9.4
Theoretical gradeability % 30
Min. outer turning radius mm 6500
Steering angle ° ±33
Oscillating angle ° ±10
Vibration frequency Hz 33/28
Nominal amplitude (high/low) mm 1.9/0.95
Exciting force (high/low) kN 353/245
Drum width mm 2130
Drum Diemeter mm 1600
Engine model Shanghai Diesel Engine SC8D175.2G2B1
Rater Power kW 128
Engine oil consumption g/kW.h 205
Hydraulic tank capacity L 170
Fuel tank capacity L 310
Dimension(L*W*H) mm 6220*2430*3200
