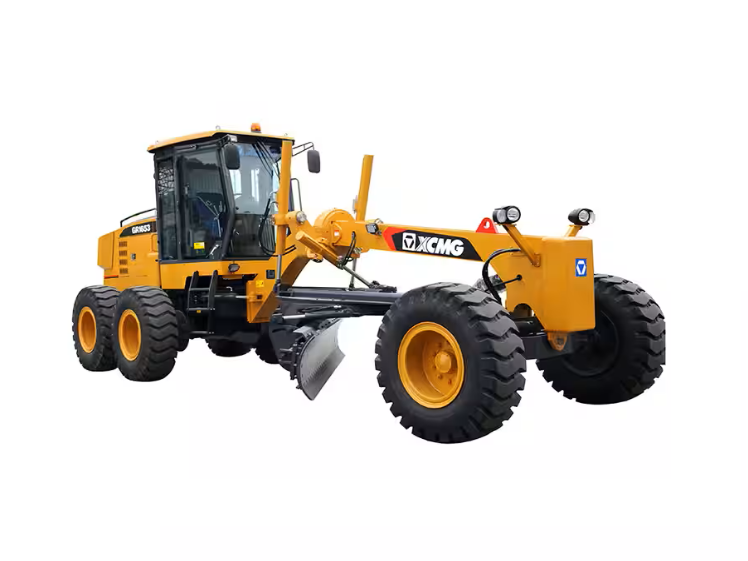

XCMG road equipment 165hp motor grader with Cummins Engine GR165
GR165 motor grader advantages and highlights:
- The GR165 adopts Dongfeng Cummins 6BTA5.9-C180-II turbocharged diesel engine, which has large output torque and power reserve coefficient and low fuel consumption.
- The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.
- Rear axle main drive is equipped with “NO-SPIN” without self-locking differential. When one wheel slips, the other wheel can still transmit its original torque.
- The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.
- The sealed cab is used to configure the air conditioning system. The interior parts are sleek and compact plastic parts, which fully reflects the needs of ergonomics.
| Item | GR165 | ||
| Basic parameters | Engine model | 6BTA5.9-C180-Ⅱ | |
| Rated power/speed | 130kW/2200rpm | ||
| Overall dimension (standard) | 8900*2625*3470mm | ||
| Total weight (standard) | 15000kg | ||
| Tire specification | 17.5-25 | ||
| Ground clearance (front axle) | 430mm | ||
| Tread | 2156mm | ||
| Space of front and rear axles | 6219 mm | ||
| Performance parameters | Forward velocity | 5、8、11、19、23、38km/h | |
| Reverse speed | 5、11、23km/h | ||
| Tractive effort f=0.75 | 77kN | ||
| Maximum gradeability | 0.25 | ||
| Tire inflation pressure | 260kPa | ||
| Working system pressure | 16MPa | ||
| Transmission pressure | 1.3—1.8Mpa | ||
| Working parameters | Maximum steering angle of front wheel | ±50° | |
| Maximum slant angle of front wheel | ±17° | ||
| Maximum oscillating angle of front axle | ±15° | ||
| Maximum oscillating angle of equilibrium box | ±15° | ||
| Maximum steering angle of frame | ±27° | ||
| Minimum turning radius | 7.3m | ||
| Scrape knife | Maximum lift height | 450mm | |
| Maximum cutting depth | 500mm | ||
| Maximum tilt angle | 90° | ||
| Cutting angle | 28°—70° | ||
| Angle of revolution | 360° | ||
| Length & chord height | 3660*610mm | ||
| Oil filling amount | Coolant | 50L | |
| Fuel tank | 280L | ||
| Engine | 24L | ||
| Transmission | 38L | ||
| Hydraulic oil | 110L | ||
| Drive axle | 28L | ||
| Balancing box | 46 L |
