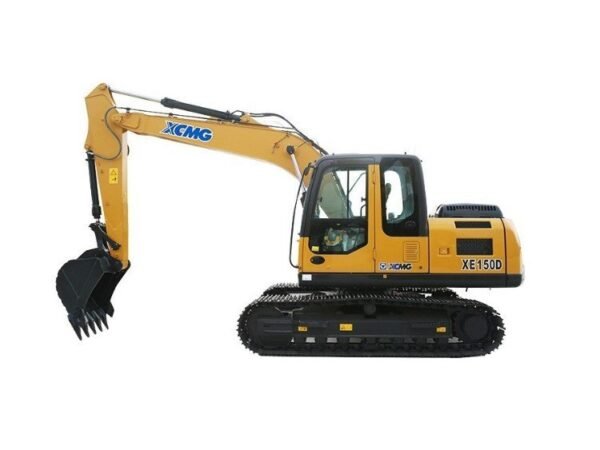

XCMG Official 15 ton XE150D crawler excavator

*Imported Cummins engine is powerful, low noise, energy efficient. *Advanced energy-saving Kawasaki hydraulic system provides good controllability and high efficiency; *Customized XCMG exclusive engine can meet Euro stage IV Emission Standard. * Different boom, arm and bucket combinations can provide excellent all-around versatility.

XCMG XE150D crawler excavator subject to full hydraulic drive has been widely used throughout China and exported to more than twenty countries and regions in the world by virtue of its high working efficiency like medium-sized excavators and such characteristics of less fuel consumption and higher flexibility.

XCMG EXCAVATOR SPARE PARTS

Description		Unit	Parameter value
Operating weight		kg	14600
Bucket capacity		m³	0.32~0.71
Engine	Model	Engine	CUMMINS
	Model	Engine	QSF3.8
	No. of cylinders	—	4
	Output power	kW/ r/min	93/2200
	torque/speed	N.m	500/1300
	Displacement	L	3.76
Main performance	Travel speed(H/L)	km/h	5.3/3.2
	Gradeability	%	70
	Rotary speed	r/min	11.7
	Ground pressure	kPa	37
	Bucket digging force	kN	106.9
	Arm digging force	kN	73.4
Hydraulic system	Main pump	—	K7V63DTP
	Rated flow of the main pump	L/min	2×123.5
	Main safety valve pressure	MPa	34.3/37
	The pressure of the pilot system	MPa	3.9
Oil Capacity	Fuel tank capacity	L	260
	Hydraulic tank capacity	L	105
	Engine oil capacity	L	11
