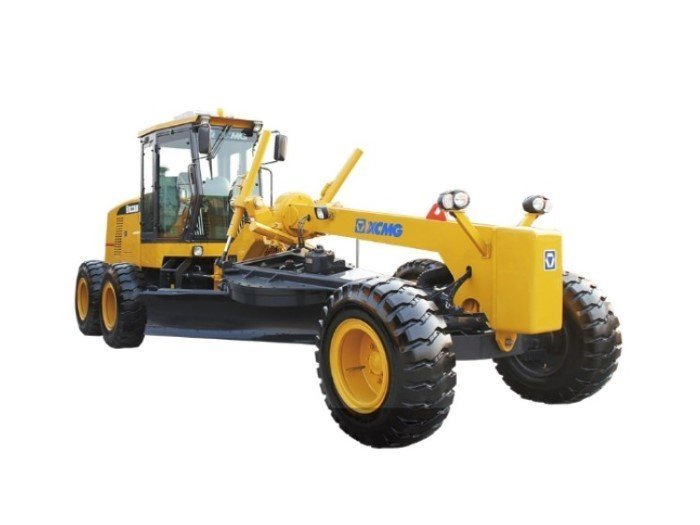

XCMG 180hp asphalt soil motor graders for road Construction GR180.
GR180 motor graders advantages and highlights:
- Famous brand Engine, ZF Technology Gearbox, and XCMG Drive Axle make the drive system power matching more reasonable and reliable.
- Double-circuit hydraulic brake system makes the brake more reliable and stable.
- Steering to the load sensing system, the main hydraulic components adopt international support to ensure the stability and reliability of the system.
- The blade body adopts adjustable large chute and double slide mechanism, and the working blade adopts high-strength and wear-resistant material.
- Various options expand the machine’s performance and working range.
- Motor Grade HS Code:8429209000
| Item | GR180 | ||
| Basic parameters | Engine model | 6CTA8.3-C190-Ⅱ | |
| Rated power/speed | 142kW/2200rpm | ||
| Overall dimension (standard) | 8900x2625x3420 | ||
| Total weight (standard) | 15400 kg | ||
| Tire specification | 17.5-25 | ||
| Ground clearance (front axle) | 430mm | ||
| Tread | 2156mm | ||
| Space of front and rear axles | 6219 mm | ||
| Space of middle and rear wheels | 1538 mm | ||
| Performance parameters | Forward velocity | 5､8､11､19､23､38km/h | |
| Reverse speed | 5､11､23km/h | ||
| Tractive effort f=0.75 | ≥79 kN | ||
| Maximum gradeability | ≥25% | ||
| Tire inflation pressure | 260kPa | ||
| Working system pressure | 18MPa | ||
| Transmission pressure | 1.3—1.8Mpa | ||
| Working parameters | Maximum steering angle of front wheel | ±50° | |
| Maximum slant angle of front wheel | ±17° | ||
| Maximum oscillating angle of front axle | ±15° | ||
| Maximum oscillating angle of equilibrium box | ±15° | ||
| Maximum steering angle of frame | ±27° | ||
| Minimum turning radius | 7.3m | ||
| Scrape knife | Maximum lift height | 450mm | |
| Maximum cutting depth | 500mm | ||
| Maximum tilt angle | 90° | ||
| Cutting angle | 28°—70° | ||
| Angle of revolution | 360° | ||
| Length & chord height | 3965x610mm | ||
| Oil filling amount | Coolant | 50L | |
| Fuel tank | 280L | ||
| Engine | 24L | ||
| Transmission | 38L | ||
| Balancing box | 46L | ||
| Drive axle | 28L |
