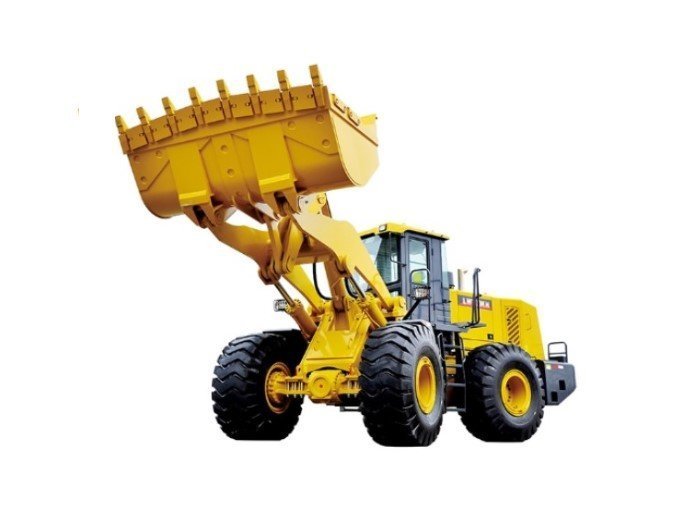

XCMG 226 kw 6 m3 7 ton wheel loader LW700KN.
LW700KN loader machine performance advantages:
* Higher power performance and efficiency, with maximum breakout force at 210kN, boom lifting time at ≤6.5s, and total cycle time at ≤11s.
* Coal loader: The 6.0m3 light material bucket works with extended boom to realize a dumping height of up to 3.5m.
* Mine loader: The 3.5m3 mine bucket specially handles the hard materials (such as rock), featuring high wear resistance and higher reliability.
Model Characteristics:
* The latest cab features higher safety, broader visual field, and more comfortable operations.
* The scientifically matched and in-depth optimized drive system and the transmission and drive axle of international advanced quality achieve higher efficiency and reliability.
* The three-segment drive shaft is applied and the front drive shaft adopts the flexible connection to reduce the impact on drive shaft and improve the drive reliability.
| Description | Unit | Parameter value |
| Wheel base | mm | 3450 |
| Tread | mm | 2360 |
| Dump clearance at maximum lift | mm | 3515 |
| Reach at maximum lift | mm | 1388 |
| Height of hinge at maximum lift height | mm | 4780 |
| Working height(fully lifted) | mm | 6560 |
| Overall machine dimension L×W×H | mm | 9455×3430×3630 |
| Rated operating load | kg | 7000 |
| Bucket capacity | m³ | 6 |
| Machine weight | kg | 25500 |
| Max.breakout force | kN | 150 |
| Max.horse power | kN | 220 |
| Lifting time of boom | s | ≤6.5 |
| Total cycle time | s | ≤11 |
| Minimum turning radius (at tire center) | mm | 5920 |
| Articulation angle | ° | ±40 |
| Gradeability | ° | 28 |
| Tyre size | 26.5R25 | |
| EngineModel | WD12G310E221 | |
| Rated Power/Speed | kW/rpm | 226/2100 |
