Model Characteristics:
1. The Yucai engine
Low noise, low exhaust gas, low west, green environmental protection, driving motive, good reliability.

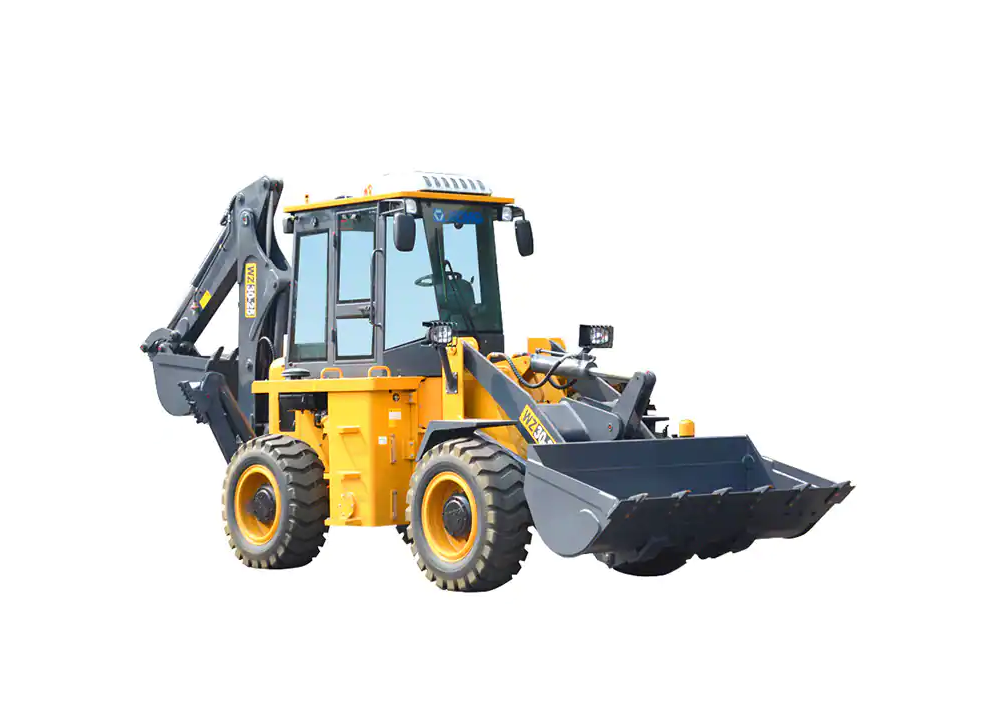

XCMG backhoe loader WZ30-25 can make in time brake automatically,so it is more safety.
2.Humanization designs
The hand handle layout reasonable, manipulating is portable;steer device, gauge dish and the chair all can be adjusted in up-down and front-back directions according to your sense, so it is comfortable.
XCMG backhoe loader WZ30-25’s wheels has well cling, so the machine has good span and cross capability.
3.Optimized load work device
Lavelling bucket automati-cally in unload position, lacenning labor intensity,and the work range is larger, workfore is more study and steady, the work efficiency is higher.
XCMG backhoe loader WZ30-25 optional parts:
4 in 1 bucket/ hammers/ Snow plough/ Augers.
XCMG WZ30-25 Backhoe loader specifications
| Description | Unit | Parameter value | |
| Digging device | Rated capacity of backhoe bucket | m3 | 0.3 |
| Max. digging radius | mm | 5433 | |
| Max. digging depth | mm | 4137 | |
| System pressure | mpa | 18 | |
| Loading device | Rated capacity of loader bucket | m3 | 1 |
| Rated working load | kg | 2500 | |
| Max. dumping height | mm | 2650 | |
| Max. dumping distance | mm | 930 | |
| System pressure | MPa | 18 | |
| Lifting time | s | ≤5 | |
| Total cycle time | s | ≤10 | |
| Max.steering angle | ° | ±35 | |
| Max.steering angle of dig working device | ° | ±85 | |
| Traceing speed I / II / III / IV | km/h | 0-6.2 / 0-12 / 0-20 / 0-30 | |
| Back I / II speed | km/h | 0-8 / 0-28.5 | |
| Diesel Model | YC4A110-T310 / YC41390-T20 | ||
| Modality | 4-stroke water-cooled inline type / 4-stroke water-cooled inline type | ||
| Rated power | kW | 73.5 (Turbocharged)/65 | |
| Rated speed | r/min | 2200 | |
| Wheel base | mm | 2600 | |
| Tread | mm | 1700 | |
| Tires | 16/70-24 | ||
| Max.digging depth | mm | 4400 | |
| Max.digging radium | mm | 5471 | |
| Overall dimensions(L*W*H) | mm | 8000*2310*3424 | |
| Operating weight | kg | 9500 | |
| Driving model | / | 4*4 | |
