XCMG GR Series Road Graders:
XCMG GR series road graders cover a wide range of models, including small type,conventional type,mining type,type for cold zone, desert and plateau as well as CE certified series. Models are of GR100,GR180,GR215,GR5505, etc.

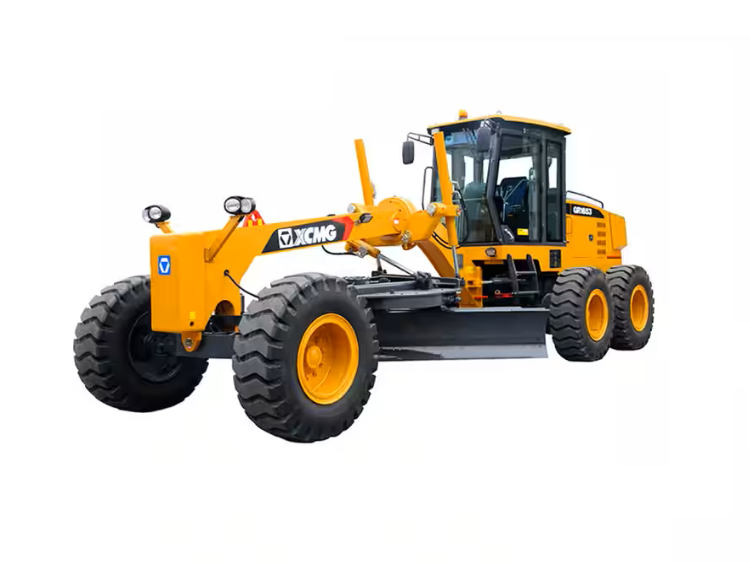

Working Scope of XCMG Road Grader GR100:
GR100 road grader are mainly used for large-area ground leveling, trenching, scraping, bulldozing, and soil loosening operations on highways, airports, and farmland. It is a necessary engineering machinery for national defense engineering, mine construction and other building construction, water conservancy construction, and farmland improvement.
XCMG GR100 Road Grader Optional Configuration:
Front bulldozing board, rear ripper, front ripper, automatic leveling device
Market Share of XCMG Road Grader:
XCMG GR series road graders are leading the industry, and their Chinese market share and export volume have been ranked first in the industry for four consecutive years.
Also provide XCMG machinery Spare Parts
| Item | GR100 |
| Engine model | J-XZGR100-4BT3.9 |
| Rated power/speed | 75(2400r/min) |
| Overall dimension (standard) | 6880X2375X3150 |
| Total weight (standard) | 7000kg |
| Tire specification | 16/70-24 |
| Ground clearance (front axle) | 550mm |
| Tread | 1900mm |
| Space of front and rear axles | 4885 mm |
| Forward velocity | 5,8,11,17,24,38km/h |
| Reverse speed | 5,11,24km/h |
| Tractive effort f=0.75 | 39.2N |
| Maximum gradeability | 20% |
| Tire inflation pressure | 300kPa |
| Working system pressure | 16MPa |
