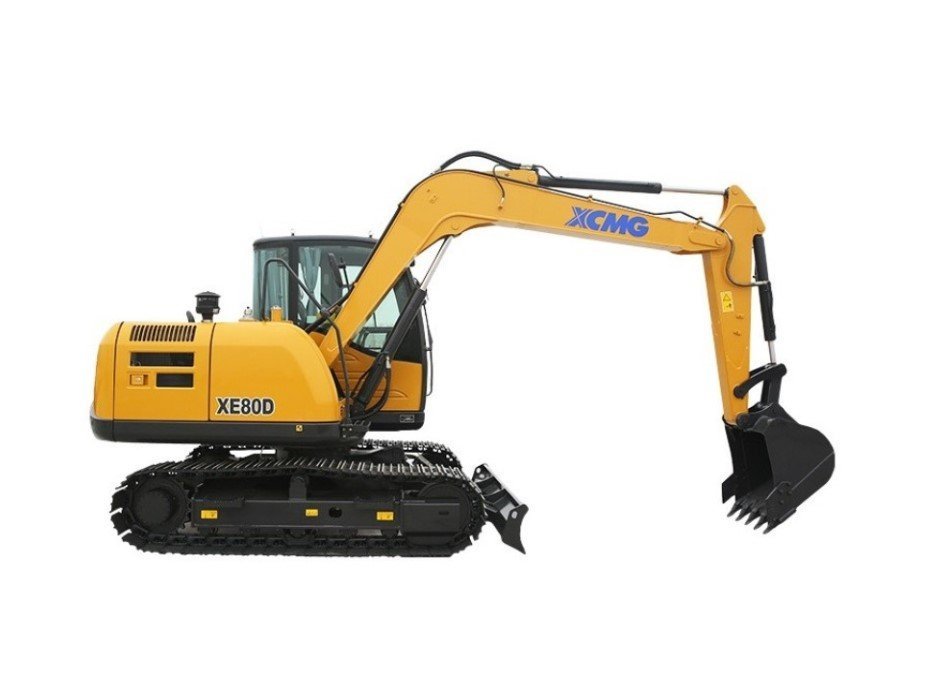

XCMG 8 ton small crawler excavator XE80D

XCMG 8 ton small crawler excavator XE80D

XCMG small crawler excavator XE80D use of Yanmar naturally aspirated engine widely used in the industry, with the features of small displacement, low fuel consumption, low-speed and large-torque, is perfectly matched the excavator operation conditions.XCMG small crawler excavator XE80D uses direct injection technology with good oil adaptability. The mechanical speed regulation is upgraded to electronic speed regulation, the speed control is more stable, not only reduce the fuel consumption, but also effectively reduce the “black smoke” from the engine.

Brands:
Category:
Tags: , , ,
  1. The new generation XE80D bucket capacity is enhanced more 10% than C Series products, the bucket capacity is increased to 0.33m3, improving the working efficiency of earthmoving operation.
  2. The larger fuel tank capacity, with ultra-low fuel consumption level, extends the machine’s continuous operation time.
  3. According to the improved and upgraded hydraulic system, the hydraulic tank capacity is re-optimized, which is 11% lower than the C Series products, significantly reducing the machine maintenance costs.
  4. XCMG Spare Parts
Sales model Unit XE80DA
Operating weight Kg 7730
Bucket capacity m³ 0.33
Engine Model / 4TNV98-ZCSXG
No. of cylinders / 4
Output power kw/rpm 46.3/2200
Maximum torque/speed N.m/rpm 239.1/1650
Displacement L 3.319
Main performance Travel speed km/h 5.0/2.7
Swing speed r/min 11
Gradeability ° 35
Ground pressure kPa 34.85
Bucket digging force kN 57
Arm digging force kN 38
Maximum traction kN 68.3
Hydraulic system Rated flow of main pump L/min 176
Main safety valve pressure MPa 28
Travel system pressure MPa 27.4
Rotary system pressure MPa 20.6
Pilot system pressure MPa 3.5
Oil Capacity Fuel tank capacity L 137
Hydraulic tank capacity L 82
Engine oil capacity L 12
Appearance size A Overall length mm 6215
B Overall width mm 2280
C Overall height mm 2690
D Width of platform mm 2260
F Overall width of chassis mm 2200
G Track width mm 450
H Length to center of rollers mm 2195
I Track gauge mm 1750
J Counterweight clearance mm 800
K Min. ground clearance mm 373
Working scope A Max. digging height mm 7120
B Max. dumping height mm 5160
C Max. digging depth mm 4070
E Max. vertical wall digging depth mm 3120
F Max. digging radius mm 6245
G Min. swing radius mm 1800
Standard configuration Length of boom mm 3720
Length of arm mm 1622
Bucket capacity m³ 0.33
Bucket capacity m³ 0.20 Narrow bucket
