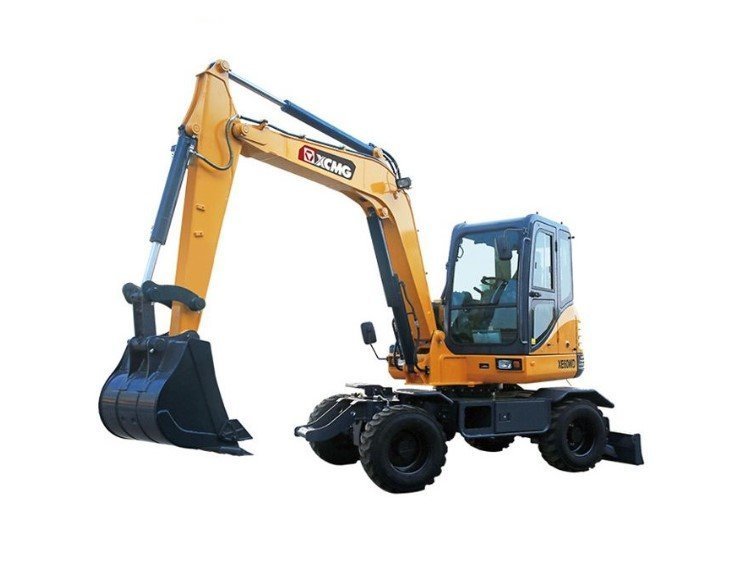

XCMG 6ton small Wheel excavator XE60WD

XCMG 6ton small Wheel excavator XE60WD

The mechanical direct injection technology can make the fuel economy reach the best value, and meet the requirements of environmental protection without post-treatment (DPF). The integral cylinder has the advantages of increased displacement, low friction loss, stronger structure and lower noise.

Brands:
Category:
Tags: , ,

XCMG small excavator on wheels XE60WD 6 ton wheel excavator for sale

Aslo Provide XCMG Spare Parts

Model Unit XE60WA XE60WD
Operating weight Kg 5900 5900
Bucket capacity m3 0.23 0.23
Engine Model / 4TNV98-EXPXG 4TNV98-EXPXG
Output power kW/r/min 41.5/2400 41.5/2400
Maximum torque/speed N.m 201/1800 201/1800
Displacement L 3.319 3.319
Fuel tank L 110 110
Main Rated flow L/min 2×60 2×60
performance Working Pressure MPa 22 22
Hydraulic tank L 120 120
Swing speed r/min 8.9 9.8
Bucket digging force kN 42.8 42.8
Arm digging force kN 25.8 25.8
Min. turning radius mm 4690 4690
Travel speed km/h 10.5/26.4 10.0/30
Gradeability % 0.56 0.56
Main pump/Pilot pump / 2×2 Piston pump 2×2 Plunger pump
Hydraulic
system
Overall length mm 6230 6230
Appearance Overall width mm 1925 1925
size Overall height mm 2850 2850
Counterweight clearance mm 970 970
Min. ground clearance mm 290 290
tail turning radius mm 1665 1665
Wheel base mm 2100 2100
Tread width mm 1600 1600
Width of chassis mm 1925 1925
Distance from front bridge to rotary center mm 1230 1230
Hood height mm 1900 1900
Max. digging depth of dozer mm 150 150
Dozer(width/height) mm 1925/352 1925/352
Working Max. digging radius mm 6120 6120
scope Max. digging distance mm 5910 5910
Max. digging height mm 5830 5830
Max. dumping height mm 4240 4240
Max. digging depth mm 3520 3520
Maximum depth cut for 2240mm(8 ft) level bottom mm 3140 3140
Max. vertical wall digging depth mm 2400 2400
Max. lifting height of dozer mm 390 390
Standard
Optional 1 0.09/0.18/0.20/0.25/0.3 bucket 0.09/0.18/0.20/0.25/0.3 bucket
Optional 2 Shade screens, Shade screens,
Protective structure Protective structure
