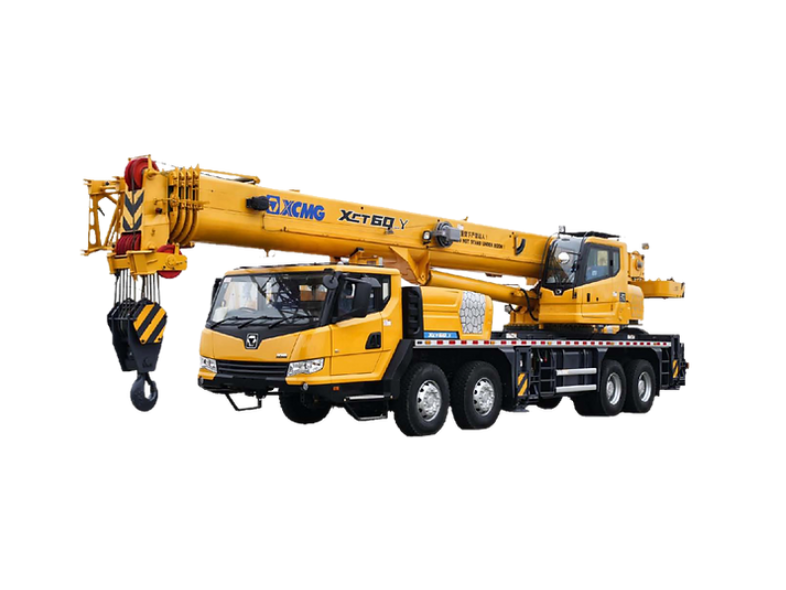

XCMG factory 60 ton telescopic truck crane XCT60_Y.
- XCMG brand Telescopic crane XCT60_Y adopts 5-section boom of 44m with U-type profile is adopted; the max. lifting load is 60 t; the max. lifting height is 59.8 m; The performance takes the lead comprehensively.
- XCMG telescopic mobile crane XCT60_Y is designed to be high temperature resistance, so it can continuously work without downtime in ambient temperature of 60℃.
- Abundant configurations suitable for various working conditions, meet the requirements of applications such as all oil fields and government projects.
- XCMG Spare Parts
XCMG 60 Tons Truck Crane Specification
| Item | Unit | Parameter | |
| Dimensions (length x width x height) | mm | 14090×2790×3630 | |
| Total vehicle mass in travel configuration | kg | 42200 | |
| Axle load | 1st and 2nd axle | kg | 16200 |
| 3rd and 4th axle | kg | 26000 | |
| Engine rated power/rpm | kW/(r/min) | 247/2200 | |
| Max. output torque/rpm | N.m/(r/min) | 1350/1100-1600 | |
| Max. travel speed | km/h | 90 | |
| Min. turning diameter | m | 24 | |
| Min. ground clearance | mm | 250 | |
| Approach angle | ° | 18/10 (front protective device included) | |
| Departure angle | ° | 13 | |
| Max. grade ability | % | 36 | |
| Fuel consumption per 100 km | L | 36 | |
| Max. total rated lifting capacity | t | 60 | |
| Min rated working radius | m | 3 | |
| Max. load moment | Base boom | kN.m | 2009 |
| Fully-extended boom | kN.m | 1113 | |
| Outrigger span | Longitudinal | m | 6.1 |
| Lateral | m | 7.1 | |
| Hoist height | Base boom | m | 11.3 |
| Fully-extended boom | m | 43.6 | |
| Boom length | Base boom | m | 11.5 |
| Fully-extended boom | m | 44 | |
| Jib offset angle | ° | 0、15、 30 | |
| Boom raising time | s | ≤40 | |
| Boom fully extending time | s | ≤90 | |
| Hoistin Hoisting speed (single line, 4th layer, no load) |
Main winch | m/min | ≥130 |
| Auxiliary winch | m/min | ≥130 | |
