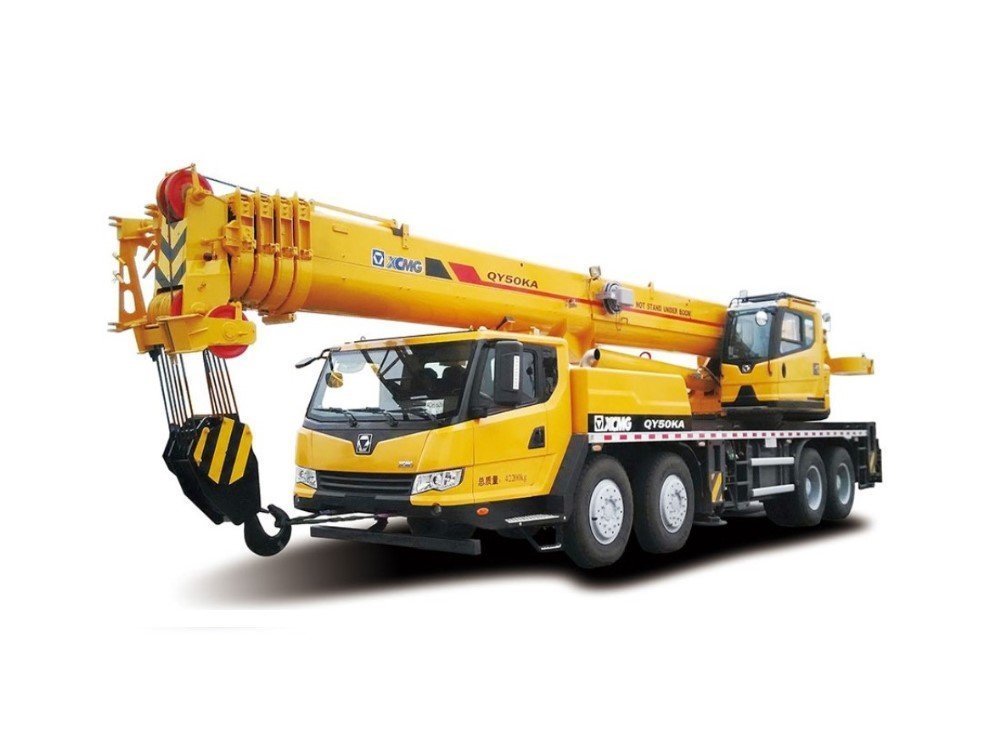

XCMG 50tons Truck Crane QY50KA Specification
| Description | Unit | Parameter value | |
| Overall length | mm | 13930 | |
| Overall width | mm | 2780 | |
| Overall Height | mm | 3630 | |
| Axle base | 1st ,2nd axle | mm | 1470 |
| 2nd ,3rd axle | 4300 | ||
| 3rd ,4th axle | 1350 | ||
| Wheel Base | mm | 2304+2075 | |
| Front overhang/rear overhang | mm | 2389/2064or 2376/2064 | |
| Front extension/rear extension | mm | 2131/226 or 2144/226 | |
| Total vehicle mass in travel configuration | kg | 42200 | |
| Axle load | Front axle | kg | 16200 |
| Rear axle | 26000 | ||
| Engine Model | WD615.338 | ||
| Engine rated power | kw/(r/min) | 276/2200 | |
| Engine rated torque | N.m/(r/min) | 1500/1300-1600 | |
| Max. travel speed | km/h | 85 | |
| Min. steady travel speed | km/h | 2~3 | |
| Min. turning diameter | m | 24 | |
| Min. ground clearance | mm | 327 | |
| Max. grade ability | % | 42 | |
| Approach angle | ° | 19 | |
| Departure angle | ° | 15 | |
| Braking distance (at 30 km/h, full load ) | m | ≤10 | |
| Oil consumption per 100km | L | 40 | |
| Exterior noise level during acceleration traveling | dB (A) | ≤88 | |
| Noise level at seated position | dB (A) | ≤90 |
