30 TON XCMG Brand Rough Terrain Crane For Sale With Best Price
- The working radius shown in the rated load charts is the radius when the load is lifted off the ground, and it is the actual value including loaded boom deflection.
- Before beginning lifting operation, the operator should know the weight of the load to be lifted and its working range, and then select proper working conditions.
- Observe the boom angle limit. Never operate the crane with the boom angle beyond the recommended limit even if a load is not being carried. Otherwise, the crane will tip.
- The boom should be extended according to the telescoping code shown by digits, which means the percentage of boom sections extended.

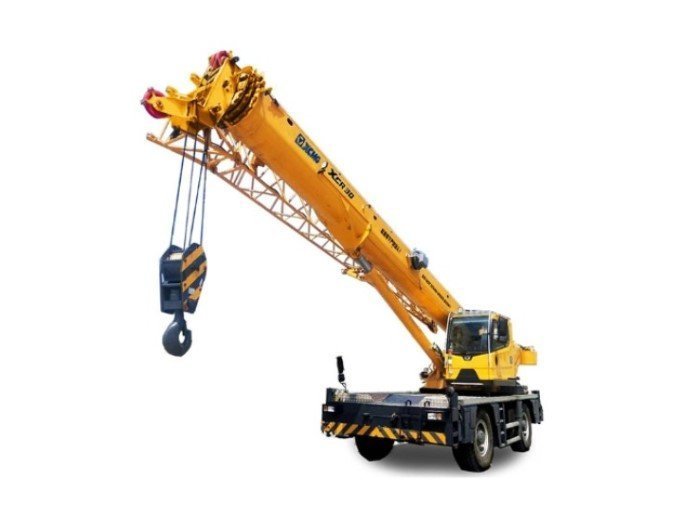

XCMG Rough Terrain Crane XCR30 Specification
| Project | Unit | Parameter |
| Measurements Parameters | ||
| Wheel Base | (mm) | 3600 |
| Wheel Track | (mm) | (Front/Rear)2300/2300 |
| Weight Parameters | ||
| Gross Vehicle Weight When Driving | (kg) | 27334 |
| Axle Load | (kg) | (1st axle/2nd axle)13157/13763 |
| Kinetic Paremeter | ||
| Engine Type | – | B6.7 |
| Engine Net Power | (kw/[r/min]) | 145 |
| Driving Parameters | ||
| Driving | ||
| Max Travel Speed | (km/h) | 41 |
| Min Travel Speed | (km/h) | 1.6 |
| Swerve | ||
| Min Turning Radius | (m) | 9.6 |
| Max Gradeability | (%) | 78 |
| Min. Ground Clearance of Machine | (mm) | 345 |
| Approach Angle | (°) | 20.5 |
| Departure Angle | (°) | 19.6 |
| Braking Distance | (m) | 9 |
| Major Performance Parameters | ||
| Max. Rated Lifting Capacity | (t) | 30 |
| Min. Rated Range | (m) | 3 |
| Max. Load Moment of Basic Jib | (kN·m) | 989.8 |
| Radius of Gyration of Turntable Tail | (mm) | 3823 |
| Outrigger | ||
| Longitudinal | (m) | 6.8 |
| Horizontal | (m) | 6.8 |
| Max. Lifting Height | ||
| Basic Boom | (m) | 10.2 |
| Longest Main Boom | (m) | 34.4 |
| Longest Main Boom + Auxiliary Boom | (m) | 42.2 |
| Boom Length of Crane | ||
| Basic Boom | (m) | 10.8 |
| Longest Main Boom | (m) | 35 |
| Longest Main Boom + Auxiliary Boom + Extension | – | – |
