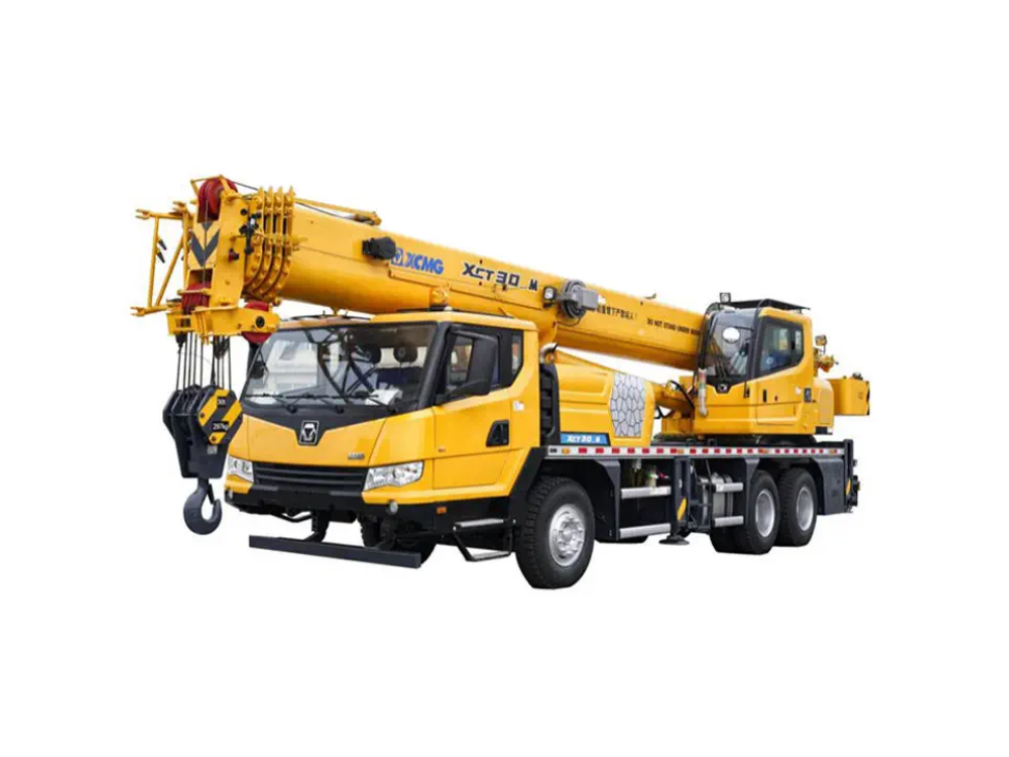

XCMG 30 ton hydraulic pickup truck crane XCT30_M

XCMG factory 30 ton hydraulic pickup truck crane XCT30_M.

1. Pickup truck crane XCT30_M adopts 5-section boom of 40.5m with U-type profile is adopted; the max. lifting load is 30t; the max. lifting height is 48.1m; the max.working radius is 38.4m; The performance takes the lead comprehensively.
2. XCMG XCT30_M pickup truck crane various configurations for working conditions in oilfields and municipal constructions can meet the all the requirements.
3. XCMG pickup truck crane XCT30_M is designed to endure high temperature, it is allowed to work in ambient temperature up to 60℃.
4. With dust-proof parts equipped, the crane is applicable to applications in deserts.



   XCMG 30 ton Truck Crane Specification

   Item		Unit	Parameter
   XCMG crane Dimensions (length x width x height)		mm	12362×2550×3415
   Total vehicle mass in travel configuration		kg	30000
   Axle load	1st and 2nd axle	kg	6400
   	3rd axle	kg	11800
   Engine rated power/rpm		kW/(r/min)	192/2200
   Max. output torque/rpm		N.m/(r/min)	1000/1400
   Max. travel speed		km/h	85
   Min. turning diameter		m	20
   Min. ground clearance		mm	261
   Approach angle		°	16.5
   Departure angle		°	13
   Max. grade ability		%	40
   Fuel consumption per 100 km		L	32
   Max. total rated lifting capacity		t	30
   Min rated working radius		m	3
   Max. load moment	Base boom	kN.m	965
   	Fully-extended boom	kN.m	576
   Outrigger span	Longitudinal	m	5.23
   	Lateral	m	6.4
   Hoist height	Base boom	m	10.5
   	Fully-extended boom	m	40.3
   Boom length	Base boom	m	10.4
   	Fully-extended boom	m	40.5
   Jib offset angle		°	0、15、 30
   Boom raising time		s	≤38
   Boom fully extending time		s	≤90
   Hoistin Hoisting speed (single line, 4th layer, no load)	Main winch	m/min	≥120
   	Auxiliary winch	m/min	≤90
