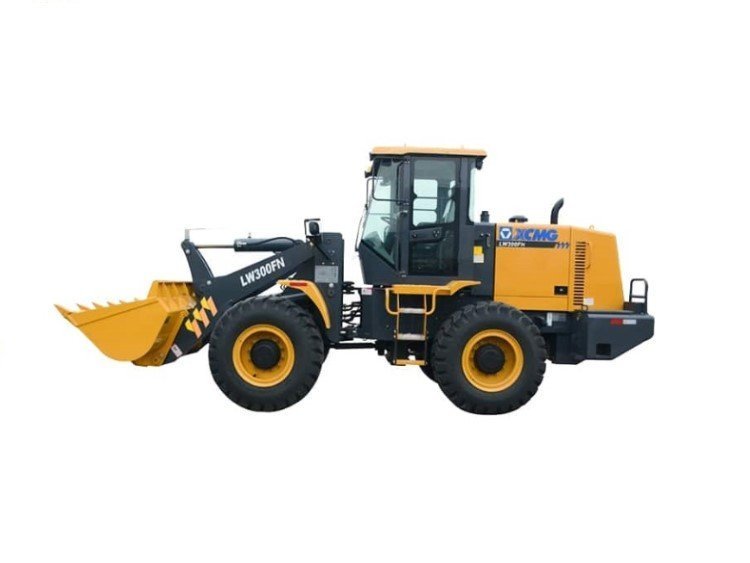

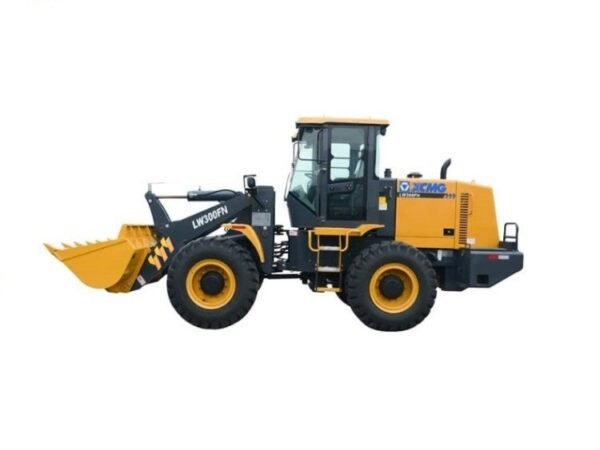

We off XCMG Wheel Loader.The XCMG 3 tons Wheel Loader LW330FN is a powerful and efficient machine designed to handle heavy-duty tasks with ease. With its impressive 3-ton lifting capacity and spacious 2 cubic meter bucket, it can effortlessly move and load various materials, making it an ideal choice for construction, mining, agriculture, and other demanding industries.
XCMG LW330FN specifications
| Item | Parameters | Unit |
| Rated operating load | 3300 | kg |
| Bucket capacity(XCMG LW330FN capacity) | 2.1(1.8~2.5) | m3 |
| XCMG LW330FN weight | 10600 | kg |
| Dump clearance at maximum lift (ground to main cutting plate) | 2850 | mm |
| Reach at maximum lift (front wheel to main cutting plate) | 1080 | mm |
| Wheelbase | 2900 | mm |
| Tread | 1850 | mm |
| Hingeaxle height at lifting limit | 3830 | mm |
| Machine height | 3320 | mm |
| Maximum traction force | 95 | kN |
| Hydraulic cycle time-raise | 5.5 | s |
| Total cycling time | 10 | s |
| Minimum turning radius (over tire) | 5170 | mm |
| Articulation angle | ±38 | ° |
| Gradeability | 28 | ° |
| Tire specification | 17.5-25-12PR | |
| XCMG LW330FN dimensions | 7470*2482*3320 | mm |
| XCMG LW330FN engine | WP6G125E22 | |
| Emission standard | China II | |
| Rated power/rotate speed | 92/2200 | kW/rpm |
| Capacity of fuel tank | 185 | L |
| Capacity of hydraulic oil tank | 165 | L |
